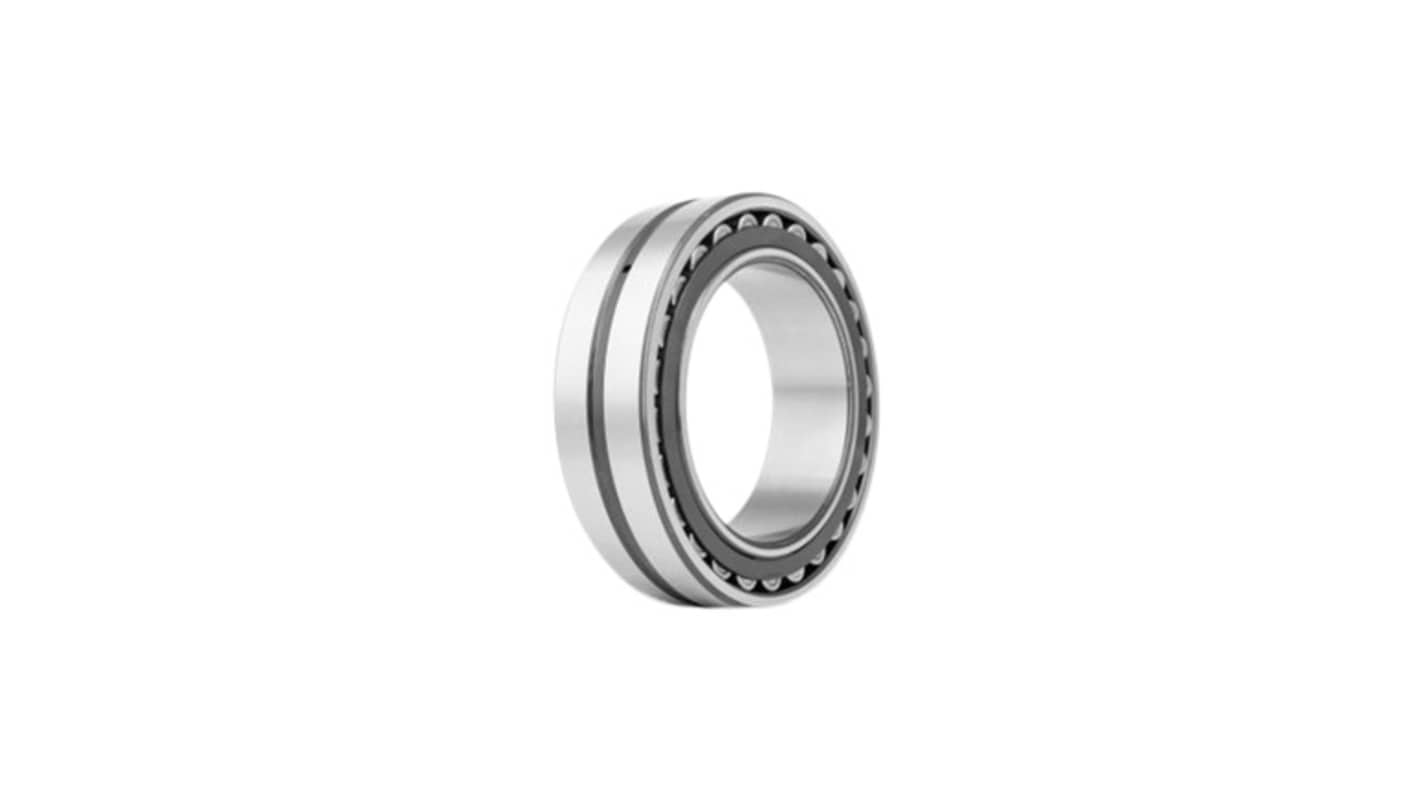

RS PRO 22210-E-W33 Parallel 50 mm I.D Roller Bearing, 90 mm O.D
- RS Stock No.:
- 186-221
- Mfr. Part No.:
- 22210-E-W33
- Brand:
- RS PRO
Subtotal (1 unit)*
£76.84
(exc. VAT)
£92.21
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 2 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £76.84 |
*price indicative
- RS Stock No.:
- 186-221
- Mfr. Part No.:
- 22210-E-W33
- Brand:
- RS PRO
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | RS PRO | |
| Product Type | Roller Bearing | |
| Inside Diameter | 50 mm | |
| Race Width | 23mm | |
| Bore Type | Parallel | |
| Cage Material | Steel | |
| Roller Material | Steel | |
| Number of Rows | 2 | |
| Series | 22210 | |
| Limiting Speed | 5200rpm | |
| Standards/Approvals | RoHS | |
| End Type | Open | |
| Dynamic Load Rating | 105kN | |
| Outside Diameter | 90 mm | |
| Bearing Material | Steel | |
| Static Load Rating | 124kN | |
| Select all | ||
|---|---|---|
Brand RS PRO | ||
Product Type Roller Bearing | ||
Inside Diameter 50 mm | ||
Race Width 23mm | ||
Bore Type Parallel | ||
Cage Material Steel | ||
Roller Material Steel | ||
Number of Rows 2 | ||
Series 22210 | ||
Limiting Speed 5200rpm | ||
Standards/Approvals RoHS | ||
End Type Open | ||
Dynamic Load Rating 105kN | ||
Outside Diameter 90 mm | ||
Bearing Material Steel | ||
Static Load Rating 124kN | ||
- COO (Country of Origin):
- AT
RS PRO Spherical Roller Bearings - Open End Type
Experience the ultimate in versatility with RS PRO open-end spherical roller bearings. These bearings are engineered to provide dual-directional movement, making them perfect for a wide range of applications. Their primary function is to dramatically reduce friction between components while accommodating misalignment with ease.;These spherical roller bearings are renowned for their exceptional service life and unmatched reliability. They excel at minimising friction, noise, and vibration during operation, ensuring smooth and quiet performance.
Why Would You Choose These Bearings?
Ideal for applications prone to misalignment or shaft deflection, these bearings can handle the bending of the shaft under specific circumstances, such as axial loads. They are designed to tolerate misalignment between the shaft and housing effortlessly. With their outstanding load-carrying capacity for radial and combination loads in one direction, thanks to the numerous spherical rollers, these bearings are a powerhouse in any setup
Features and Benefits
Applications
