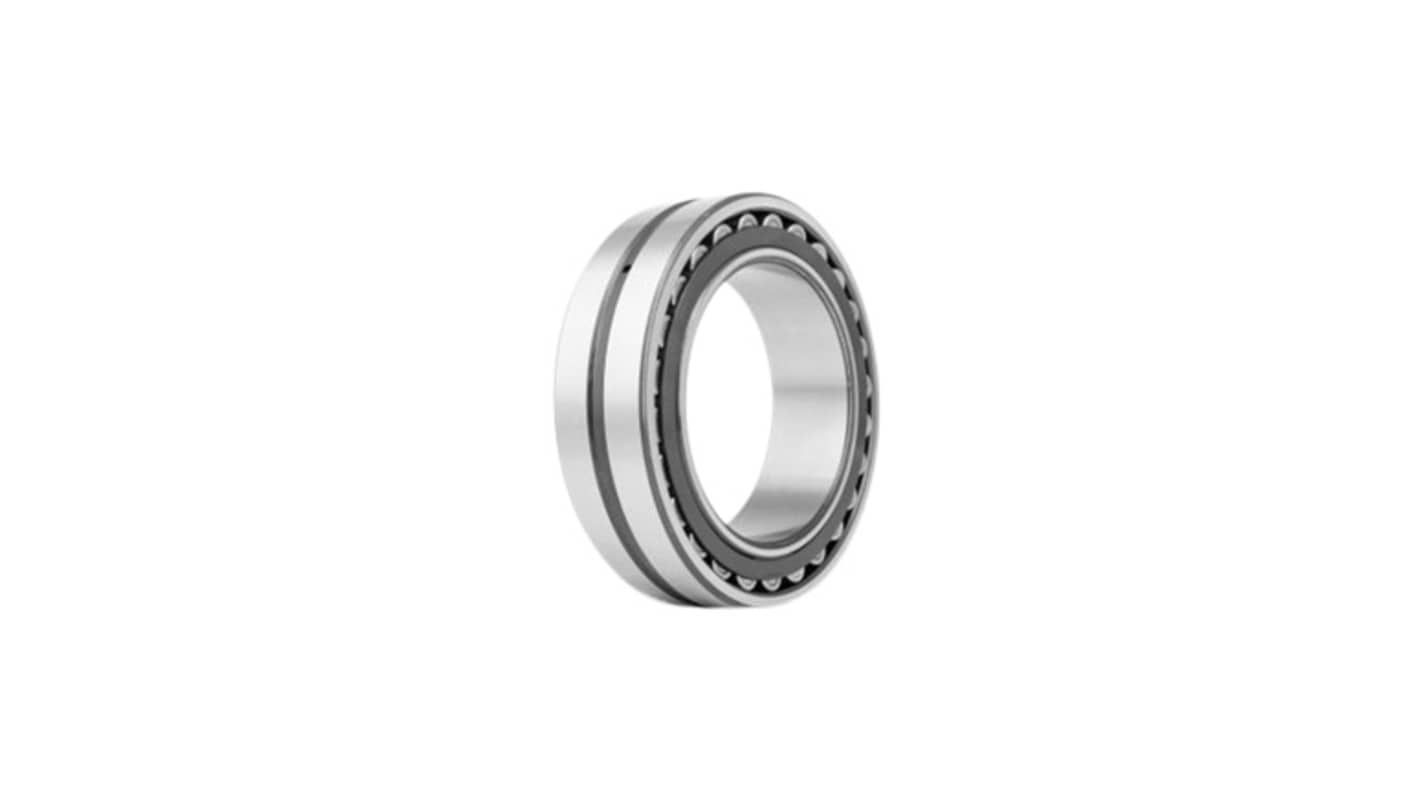

RS PRO 22205-E-W33 Parallel 25 mm I.D Roller Bearing, 52 mm O.D
- RS Stock No.:
- 186-212
- Mfr. Part No.:
- 22205-E-W33
- Brand:
- RS PRO
Subtotal (1 unit)*
£62.79
(exc. VAT)
£75.35
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 7 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £62.79 |
*price indicative
- RS Stock No.:
- 186-212
- Mfr. Part No.:
- 22205-E-W33
- Brand:
- RS PRO
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | RS PRO | |
| Product Type | Roller Bearing | |
| Inside Diameter | 25 mm | |
| Race Width | 18mm | |
| Bore Type | Parallel | |
| Roller Material | Steel | |
| Cage Material | Steel | |
| Dynamic Load Rating | 46kN | |
| End Type | Open | |
| Standards/Approvals | RoHS | |
| Limiting Speed | 9500rpm | |
| Number of Rows | 2 | |
| Series | 22205 | |
| Bearing Material | Steel | |
| Static Load Rating | 46kN | |
| Outside Diameter | 52 mm | |
| Select all | ||
|---|---|---|
Brand RS PRO | ||
Product Type Roller Bearing | ||
Inside Diameter 25 mm | ||
Race Width 18mm | ||
Bore Type Parallel | ||
Roller Material Steel | ||
Cage Material Steel | ||
Dynamic Load Rating 46kN | ||
End Type Open | ||
Standards/Approvals RoHS | ||
Limiting Speed 9500rpm | ||
Number of Rows 2 | ||
Series 22205 | ||
Bearing Material Steel | ||
Static Load Rating 46kN | ||
Outside Diameter 52 mm | ||
- COO (Country of Origin):
- AT
RS PRO Spherical Roller Bearings - Open End Type
Experience the ultimate in versatility with RS PRO open-end spherical roller bearings. These bearings are engineered to provide dual-directional movement, making them perfect for a wide range of applications. Their primary function is to dramatically reduce friction between components while accommodating misalignment with ease.
These spherical roller bearings are renowned for their exceptional service life and unmatched reliability. They excel at minimising friction, noise, and vibration during operation, ensuring smooth and quiet performance.
Why Would You Choose These Bearings?
Ideal for applications prone to misalignment or shaft deflection, these bearings can handle the bending of the shaft under specific circumstances, such as axial loads. They are designed to tolerate misalignment between the shaft and housing effortlessly. With their outstanding load-carrying capacity for radial and combination loads in one direction, thanks to the numerous spherical rollers, these bearings are a powerhouse in any setup
