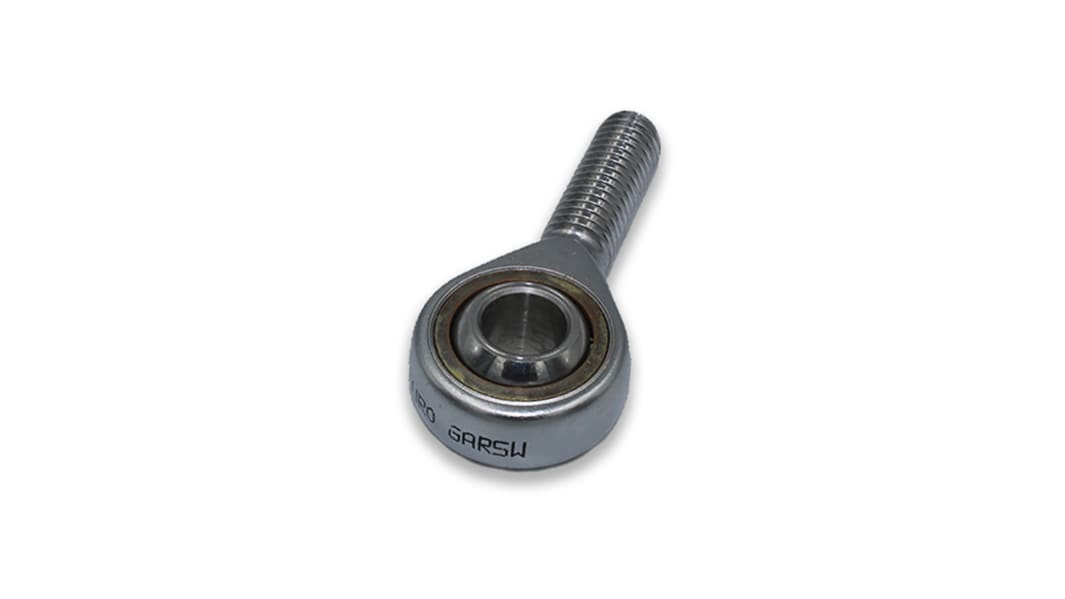

Fluro M14 x 2 Male Stainless Steel Rod End Metric, 14 mm Bore
- RS Stock No.:
- 185-1397
- Mfr. Part No.:
- GALRSW14R
- Brand:
- Fluro
Bulk discount available
Subtotal (1 unit)*
£128.55
(exc. VAT)
£154.26
(inc. VAT)
Add 1 unit to get free delivery
Stocked by manufacturer
- Ready to ship from 16 March 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 - 4 | £128.55 |
| 5 - 9 | £123.41 |
| 10 + | £120.84 |
*price indicative
- RS Stock No.:
- 185-1397
- Mfr. Part No.:
- GALRSW14R
- Brand:
- Fluro
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Fluro | |
| Product Type | Rod End | |
| Connection Size | M14 x 2 Male | |
| Bore Size | 14 mm | |
| Material | Stainless Steel | |
| Dynamic Load Rating | 42kN | |
| Static Load Rating | 39.5kN | |
| Thread Standard | Metric | |
| Minimum Operating Temperature | -50°C | |
| Maximum Operating Temperature | 250°C | |
| Overall Width | 78mm | |
| Standards/Approvals | No | |
| Thread Direction | Left Hand | |
| Select all | ||
|---|---|---|
Brand Fluro | ||
Product Type Rod End | ||
Connection Size M14 x 2 Male | ||
Bore Size 14 mm | ||
Material Stainless Steel | ||
Dynamic Load Rating 42kN | ||
Static Load Rating 39.5kN | ||
Thread Standard Metric | ||
Minimum Operating Temperature -50°C | ||
Maximum Operating Temperature 250°C | ||
Overall Width 78mm | ||
Standards/Approvals No | ||
Thread Direction Left Hand | ||
- COO (Country of Origin):
- DE
Rod Ends with male thread and PTFE liner. For use at high dynamic pressure and tension loads in corrosive environments.
