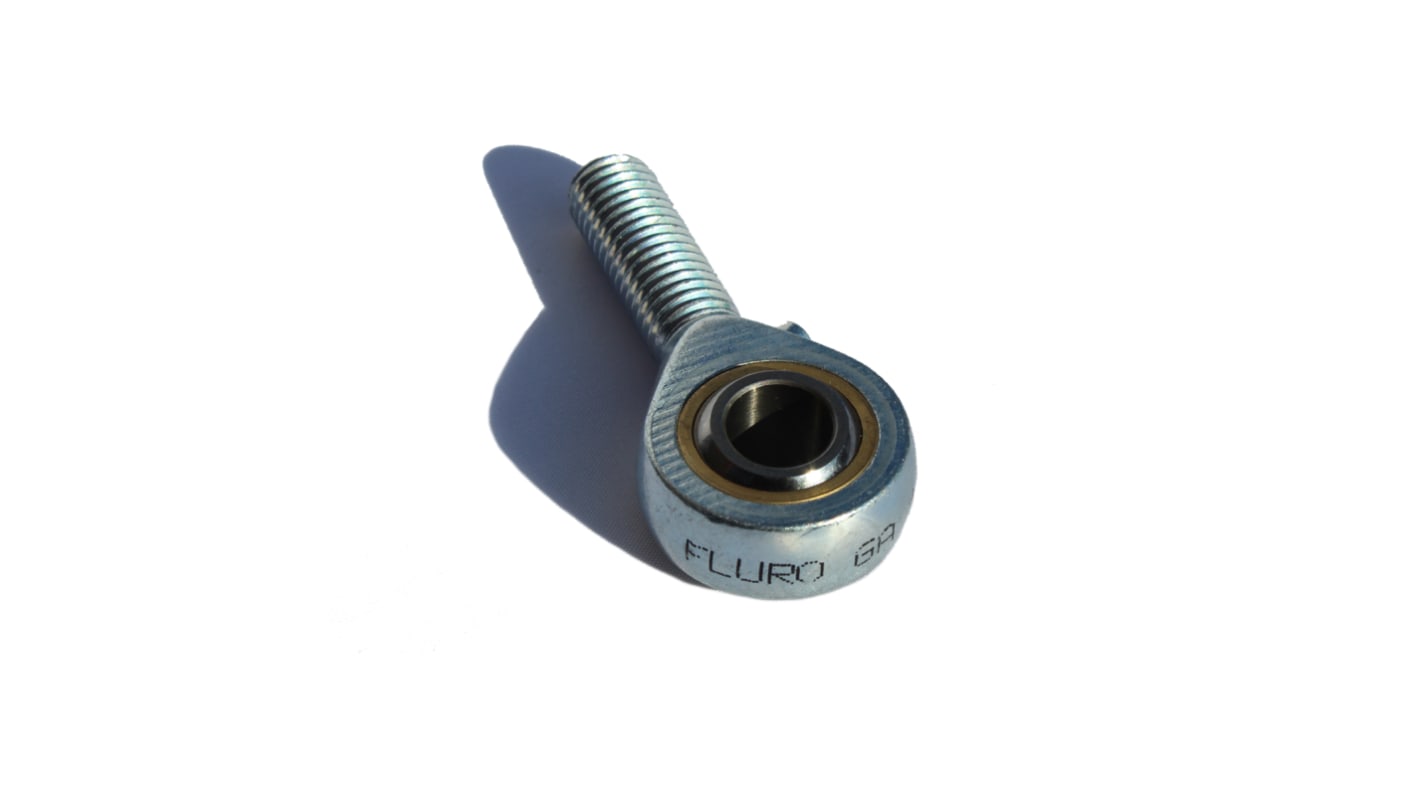

Fluro M14 x 1.5 Male Galvanised Steel Rod End Metric, 14 mm Bore
- RS Stock No.:
- 184-4499
- Mfr. Part No.:
- GAL14x1.5
- Brand:
- Fluro
Bulk discount available
Subtotal (1 unit)*
£38.72
(exc. VAT)
£46.46
(inc. VAT)
Add 2 units to get free delivery
Stocked by manufacturer
- Ready to ship from 16 March 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 - 4 | £38.72 |
| 5 - 9 | £37.13 |
| 10 + | £36.39 |
*price indicative
- RS Stock No.:
- 184-4499
- Mfr. Part No.:
- GAL14x1.5
- Brand:
- Fluro
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Fluro | |
| Product Type | Rod End | |
| Connection Size | M14 x 1.5 Male | |
| Bore Size | 14 mm | |
| Material | Galvanised Steel | |
| Dynamic Load Rating | 13kN | |
| Static Load Rating | 24.5kN | |
| Thread Standard | Metric | |
| Minimum Operating Temperature | -50°C | |
| Maximum Operating Temperature | 200°C | |
| Thread Direction | Left Hand | |
| Overall Width | 78mm | |
| Standards/Approvals | No | |
| Select all | ||
|---|---|---|
Brand Fluro | ||
Product Type Rod End | ||
Connection Size M14 x 1.5 Male | ||
Bore Size 14 mm | ||
Material Galvanised Steel | ||
Dynamic Load Rating 13kN | ||
Static Load Rating 24.5kN | ||
Thread Standard Metric | ||
Minimum Operating Temperature -50°C | ||
Maximum Operating Temperature 200°C | ||
Thread Direction Left Hand | ||
Overall Width 78mm | ||
Standards/Approvals No | ||
- COO (Country of Origin):
- DE
Rod Ends with male thread regreasable through the housing with flush type grease fitting.
