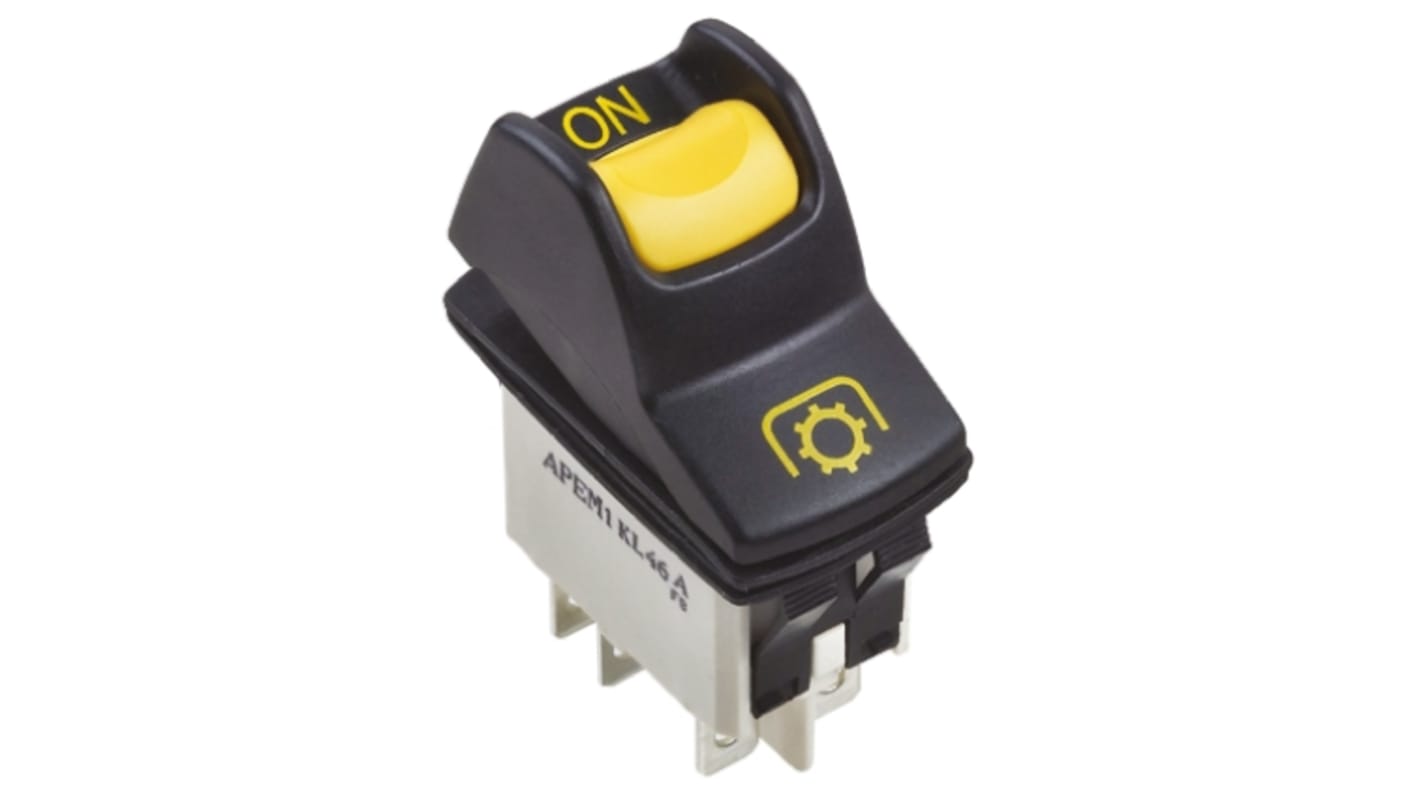

Apem DPST, On-On Rocker Switch Panel Mount
- RS Stock No.:
- 765-1223
- Mfr. Part No.:
- KL462AKXA125N01605
- Brand:
- APEM
Subtotal (1 unit)*
£32.70
(exc. VAT)
£39.24
(inc. VAT)
FREE delivery for orders over £50.00
Limited stock
- 2 left, ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £32.70 |
*price indicative
- RS Stock No.:
- 765-1223
- Mfr. Part No.:
- KL462AKXA125N01605
- Brand:
- APEM
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | APEM | |
| Contact Configuration | DPST | |
| Switch Operation | On-On | |
| Panel Cut Out Width | 21.08mm | |
| Panel Cut Out Height | 36.8mm | |
| Contact Current Rating | 5 A | |
| Illuminated | No | |
| Actuator Colour | Black/Yellow | |
| Mounting Type | Panel Mount | |
| IP Rating | IP68 | |
| Terminal Type | Quick Connect, Solder | |
| Legend Text | On Rear PTO | |
| Panel Cut Out Size | 36.8 x 21.08mm | |
| DC Voltage Rating | 24V | |
| Actuator Shape | Rectangular | |
| Maximum Operating Temperature | +85°C | |
| Legend Text Colour | Yellow | |
| Operating Temperature Range | -40 → +85°C | |
| Mechanical Life | 100000Operations | |
| Minimum Operating Temperature | -40°C | |
| Contact Resistance | 10mΩ | |
| Case Material | Nylon 66 | |
| Contact Material | Silver | |
Select all | ||
|---|---|---|
Brand APEM | ||
Contact Configuration DPST | ||
Switch Operation On-On | ||
Panel Cut Out Width 21.08mm | ||
Panel Cut Out Height 36.8mm | ||
Contact Current Rating 5 A | ||
Illuminated No | ||
Actuator Colour Black/Yellow | ||
Mounting Type Panel Mount | ||
IP Rating IP68 | ||
Terminal Type Quick Connect, Solder | ||
Legend Text On Rear PTO | ||
Panel Cut Out Size 36.8 x 21.08mm | ||
DC Voltage Rating 24V | ||
Actuator Shape Rectangular | ||
Maximum Operating Temperature +85°C | ||
Legend Text Colour Yellow | ||
Operating Temperature Range -40 → +85°C | ||
Mechanical Life 100000Operations | ||
Minimum Operating Temperature -40°C | ||
Contact Resistance 10mΩ | ||
Case Material Nylon 66 | ||
Contact Material Silver | ||
- COO (Country of Origin):
- FR
Apem Rocker Switches - KL Series
Apem KL series rocker switches feature an unlocking actuator that must be pressed to activate the protected function of the rocker. Additionally, two frames protect the unlocking actuator from untimely activation. The KL series of rocker switches are available with a wide range of customisation options and feature intuitive ergonomics.
One protected position
Optional laser etched symbols
Illuminated or non-illuminated
IP68 sealed
Optional laser etched symbols
Illuminated or non-illuminated
IP68 sealed
Apem Rocker Switches
