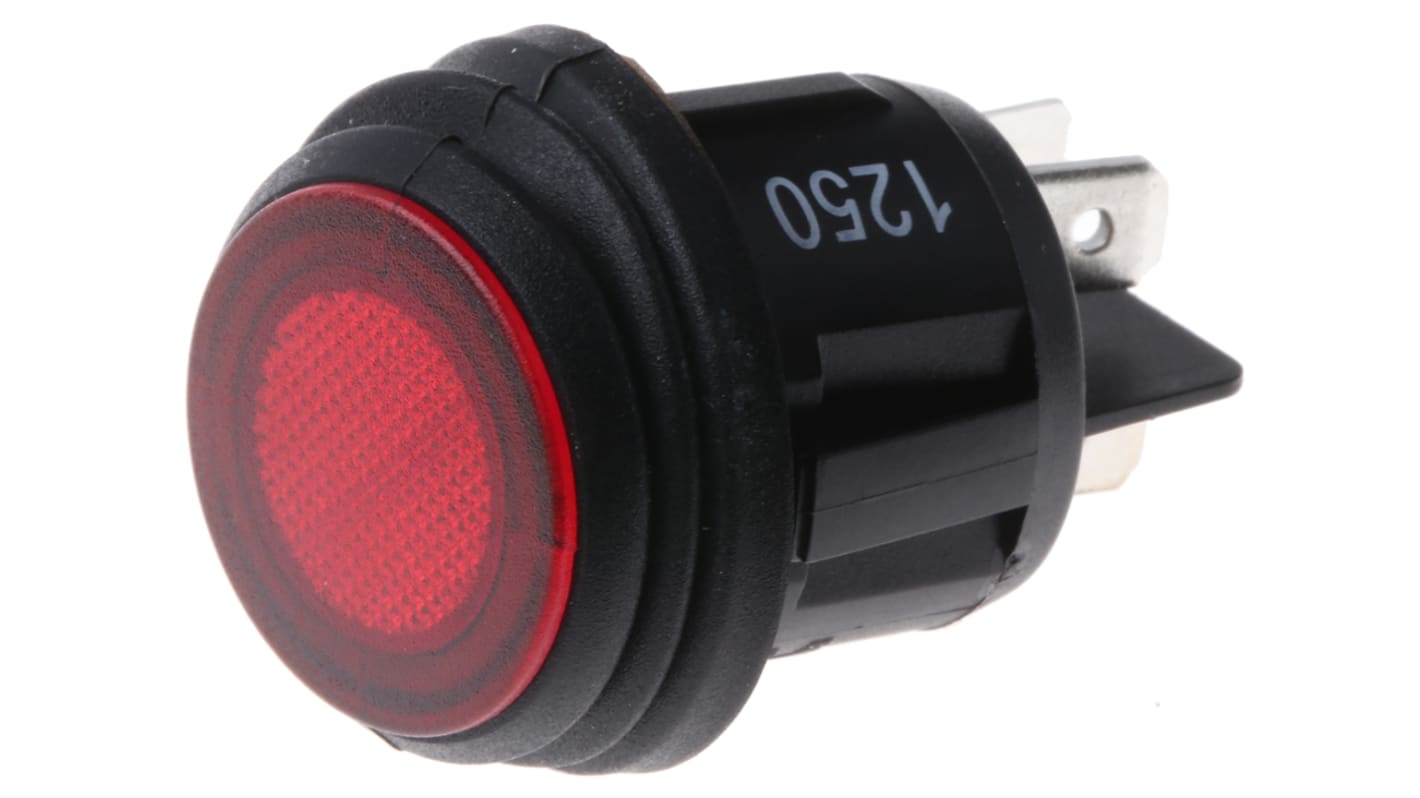

ZF Illuminated DPST, On-Off Rocker Switch Panel Mount
- RS Stock No.:
- 706-4048
- Mfr. Part No.:
- KDH3AEA2RBB
- Brand:
- ZF
Bulk discount available
Subtotal (1 unit)*
£6.53
(exc. VAT)
£7.84
(inc. VAT)
FREE delivery for orders over £50.00
Last RS stock
- 71 left, ready to ship
- Plus 33 left, ready to ship from another location
- Final 675 unit(s) shipping from 31 October 2025
Units | Per unit |
|---|---|
| 1 - 49 | £6.53 |
| 50 - 99 | £5.26 |
| 100 + | £3.98 |
*price indicative
- RS Stock No.:
- 706-4048
- Mfr. Part No.:
- KDH3AEA2RBB
- Brand:
- ZF
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | ZF | |
| Contact Configuration | DPST | |
| Switch Operation | On-Off | |
| Panel Cut Out Diameter | 20.2mm | |
| Contact Current Rating | 16 A | |
| Illuminated | Yes | |
| Actuator Colour | Red | |
| Mounting Type | Panel Mount | |
| IP Rating | IP56 | |
| Terminal Type | Quick Connect | |
| Legend Text | (Blank) | |
| Panel Cut Out Size | 20.2 (Dia.)mm | |
| AC Voltage Rating | 125 V, 250V | |
| DC Voltage Rating | 14 V, 28V | |
| Actuator Shape | Round | |
| Case Material | Nylon 66 | |
| Contact Resistance | 50mΩ | |
| Minimum Operating Temperature | -25°C | |
| Contact Material | Silver Alloy | |
| Mechanical Life | 100000Operations | |
| Operating Temperature Range | -25 → +85°C | |
| Maximum Operating Temperature | +85°C | |
Select all | ||
|---|---|---|
Brand ZF | ||
Contact Configuration DPST | ||
Switch Operation On-Off | ||
Panel Cut Out Diameter 20.2mm | ||
Contact Current Rating 16 A | ||
Illuminated Yes | ||
Actuator Colour Red | ||
Mounting Type Panel Mount | ||
IP Rating IP56 | ||
Terminal Type Quick Connect | ||
Legend Text (Blank) | ||
Panel Cut Out Size 20.2 (Dia.)mm | ||
AC Voltage Rating 125 V, 250V | ||
DC Voltage Rating 14 V, 28V | ||
Actuator Shape Round | ||
Case Material Nylon 66 | ||
Contact Resistance 50mΩ | ||
Minimum Operating Temperature -25°C | ||
Contact Material Silver Alloy | ||
Mechanical Life 100000Operations | ||
Operating Temperature Range -25 → +85°C | ||
Maximum Operating Temperature +85°C | ||
- COO (Country of Origin):
- CN
KD Series Waterproof Double Pole Rocker Switches
KD series IP56-rated switches are available in illuminated (red or green actuator) and unilluminated (black actuator) versions.Robust and waterproof, teh KD series of double pole rocker switches are designed to fit a panel cut-out of 20.2 mm diameter.
Features and Benefits:
• Mechanical life: 100,000 cycles
• DC electrical life: 6,000 cycles
• DC electrical life: 6,000 cycles
The KD Series includes:
• Stock number 706-4042 is a green illuminated rocker switch (On-Off)
• Stock number 706-4045 is a plain black rocker switch (On-Off)
• Stock number 706-4048 is a red illuminated rocker switch (On-Off)
• Stock number 706-4051 is a plain black rocker switch (On-On)
• Stock number 706-4054 is a plain black rocker switch (On-Off-On)
• Stock number 868-1660 is a red illuminated rocker switch (On-Off)
• Stock number 706-4045 is a plain black rocker switch (On-Off)
• Stock number 706-4048 is a red illuminated rocker switch (On-Off)
• Stock number 706-4051 is a plain black rocker switch (On-On)
• Stock number 706-4054 is a plain black rocker switch (On-Off-On)
• Stock number 868-1660 is a red illuminated rocker switch (On-Off)
