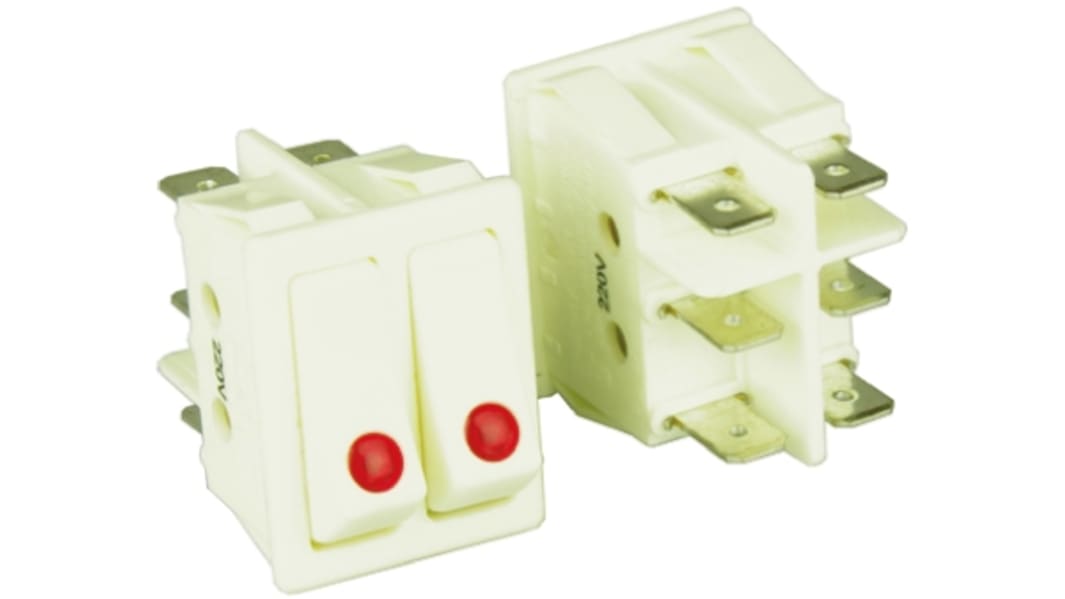

ZF DPST, On-Off Rocker Switch Panel Mount
- RS Stock No.:
- 440-6935
- Mfr. Part No.:
- WRG32F7BWWKN
- Brand:
- ZF
Subtotal (1 unit)*
£6.65
(exc. VAT)
£7.98
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 15 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £6.65 |
*price indicative
- RS Stock No.:
- 440-6935
- Mfr. Part No.:
- WRG32F7BWWKN
- Brand:
- ZF
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | ZF | |
| Contact Configuration | DPST | |
| Switch Operation | On-Off | |
| Panel Cut Out Width | 22mm | |
| Panel Cut Out Height | 30.2mm | |
| Contact Current Rating | 16 A | |
| Illuminated | No | |
| Actuator Colour | White | |
| Mounting Type | Panel Mount | |
| Terminal Type | Quick Connect | |
| AC Voltage Rating | 125 V, 250V | |
| Actuator Shape | Rectangular | |
| Panel Cut Out Size | 30.2 x 22mm | |
| Contact Material | Silver Alloy | |
| Maximum Operating Temperature | +65°C | |
| Contact Resistance | 20mΩ | |
| Operating Temperature Range | -20 → +65°C | |
| Minimum Operating Temperature | -20°C | |
| Mechanical Life | 50000Operations | |
Select all | ||
|---|---|---|
Brand ZF | ||
Contact Configuration DPST | ||
Switch Operation On-Off | ||
Panel Cut Out Width 22mm | ||
Panel Cut Out Height 30.2mm | ||
Contact Current Rating 16 A | ||
Illuminated No | ||
Actuator Colour White | ||
Mounting Type Panel Mount | ||
Terminal Type Quick Connect | ||
AC Voltage Rating 125 V, 250V | ||
Actuator Shape Rectangular | ||
Panel Cut Out Size 30.2 x 22mm | ||
Contact Material Silver Alloy | ||
Maximum Operating Temperature +65°C | ||
Contact Resistance 20mΩ | ||
Operating Temperature Range -20 → +65°C | ||
Minimum Operating Temperature -20°C | ||
Mechanical Life 50000Operations | ||
- COO (Country of Origin):
- CN
Twin Single Pole
Available in black or white, with or without illumination
Rugged construction for high current applications
Durable silver alloy contacts for up to 16A switching
Connection via .250in faston terminals
Polycarbonate (lighted) or Nylon 66 94 V-2 (non-lighted) actuator
Rugged construction for high current applications
Durable silver alloy contacts for up to 16A switching
Connection via .250in faston terminals
Polycarbonate (lighted) or Nylon 66 94 V-2 (non-lighted) actuator
Approvals
VDE; UL; CSA
Approvals
VDE; UL; CSA
