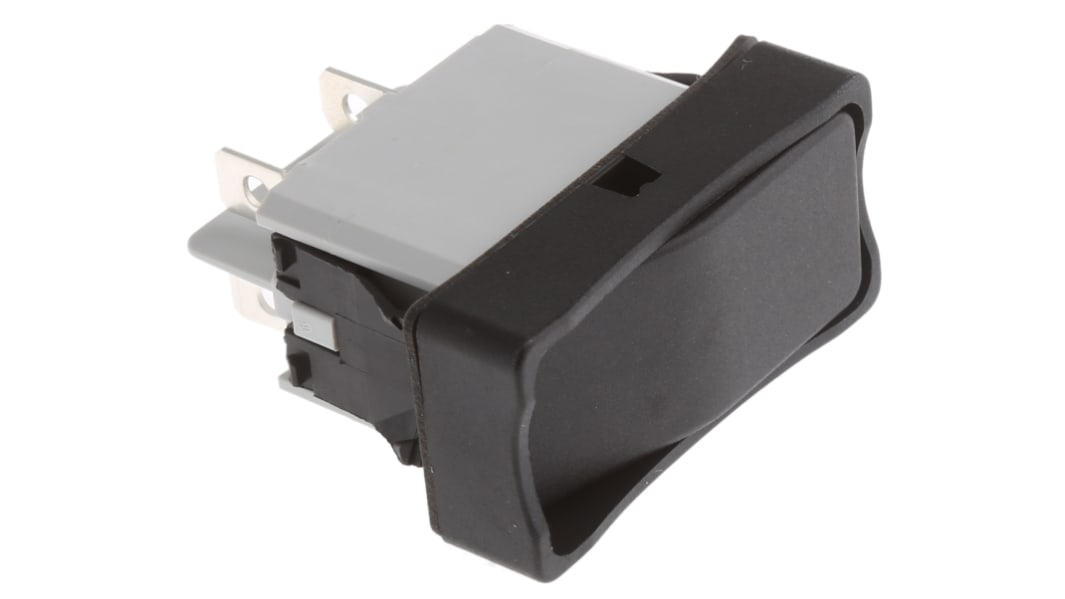

APEM Double Pole Single Throw (DPST), On-Off Rocker Switch Panel Mount

  • RS Stock No. 398-5033
  • Mfr. Part No. KG412A2XXA21XX
  • Brand APEM
Technical Reference
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): FR
Product Details

KG Series Rocker Switches

IP65 Sealed rocker switches with integral bezels which protect against accidental operation
6.35 (0.250) faston/solder termination
Neon illuminated versions require 230Vac, (3985077 , 3985083 )
LED illuminated versions require 12Vdc, (3985112 , 3985106 )
Ideal for applications requiring wash-down cleaning
Contact Resistance: 10mΩ
Contact Material: Silver
Panel Cut-out 21.08 x 36.83

Approvals

7777

Specifications
Attribute Value
Contact Configuration Double Pole Single Throw (DPST)
Switch Operation On-Off
Panel Cut Out Width 36.8mm
Panel Cut Out Height 21.08mm
Contact Current Rating 15 A
Illuminated No
Actuator Colour Black
Mounting Type Panel Mount
IP Rating IP65
Terminal Type Quick Connect, Solder
Actuator Shape Rectangular
Contact Material Silver
Contact Resistance 10mΩ
DC Voltage Rating 12 V, 24 V
Panel Cut Out Size 21.08 x 36.80mm
Maximum Operating Temperature +85°C
Operating Temperature Range -40 → +85°C
Mechanical Life 100000Operations
Minimum Operating Temperature -40°C
AC Voltage Rating 250V
104 In stock - FREE next working day delivery available
Price Each
£ 6.77
(exc. VAT)
£ 8.12
(inc. VAT)
Units
Per unit
1 - 9
£6.77
10 - 24
£6.36
25 - 49
£5.82
50 - 99
£5.28
100 +
£4.74
