Wurth Elektronik Single Pole Single Throw (SPST), On-None-Off Rocker Switch Panel Mount

Technical Reference
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): CN
Product Details

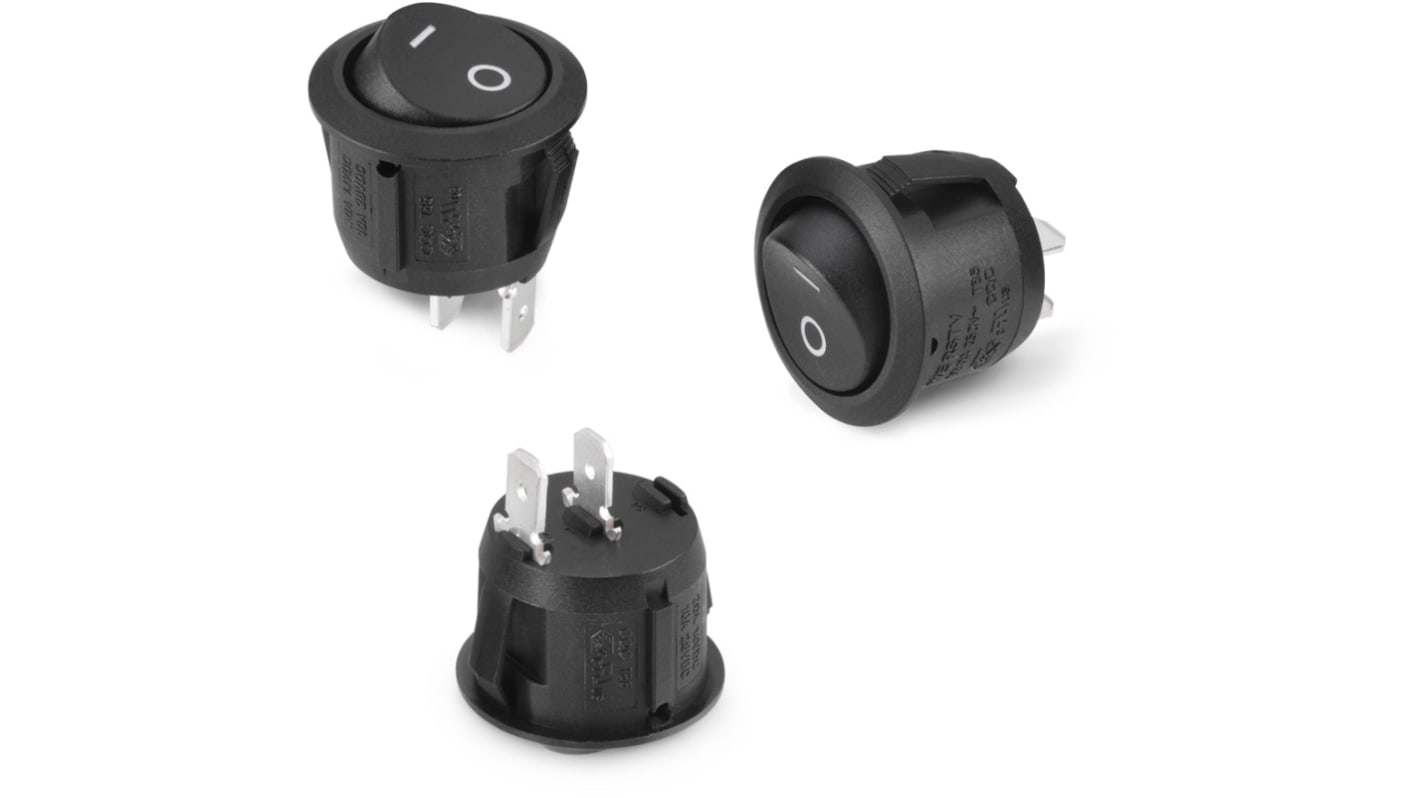

WS-RSTV Ø 20.2 mm Panel Cut-Out Rocker Switch with 0.187" quick connect terminal

Specifications
Attribute Value
Contact Configuration Single Pole Single Throw (SPST)
Switch Operation On-None-Off
Panel Cut Out Diameter 20.2mm
Contact Current Rating 10 A
Illuminated No
Actuator Colour Black
Mounting Type Panel Mount
Terminal Type Quick Connect
Legend Text O I
Actuator Shape Round
Mechanical Life 10000Cycles
Operating Temperature Range 0 → +85°C
Panel Cut Out Size 20.2 Dia.mm
Contact Resistance 50mΩ
Minimum Operating Temperature 0°C
DC Voltage Rating 28V
Maximum Operating Temperature +85°C
Contact Material Copper Alloy
AC Voltage Rating 250V
Available to back order for despatch 11/06/2020
Price Each (In a Tray of 200)
£ 1.549
(exc. VAT)
£ 1.859
(inc. VAT)
Units
Per unit
Per Tray*
200 - 800
£1.549
£309.80
1000 +
£1.449
£289.80
*price indicative
