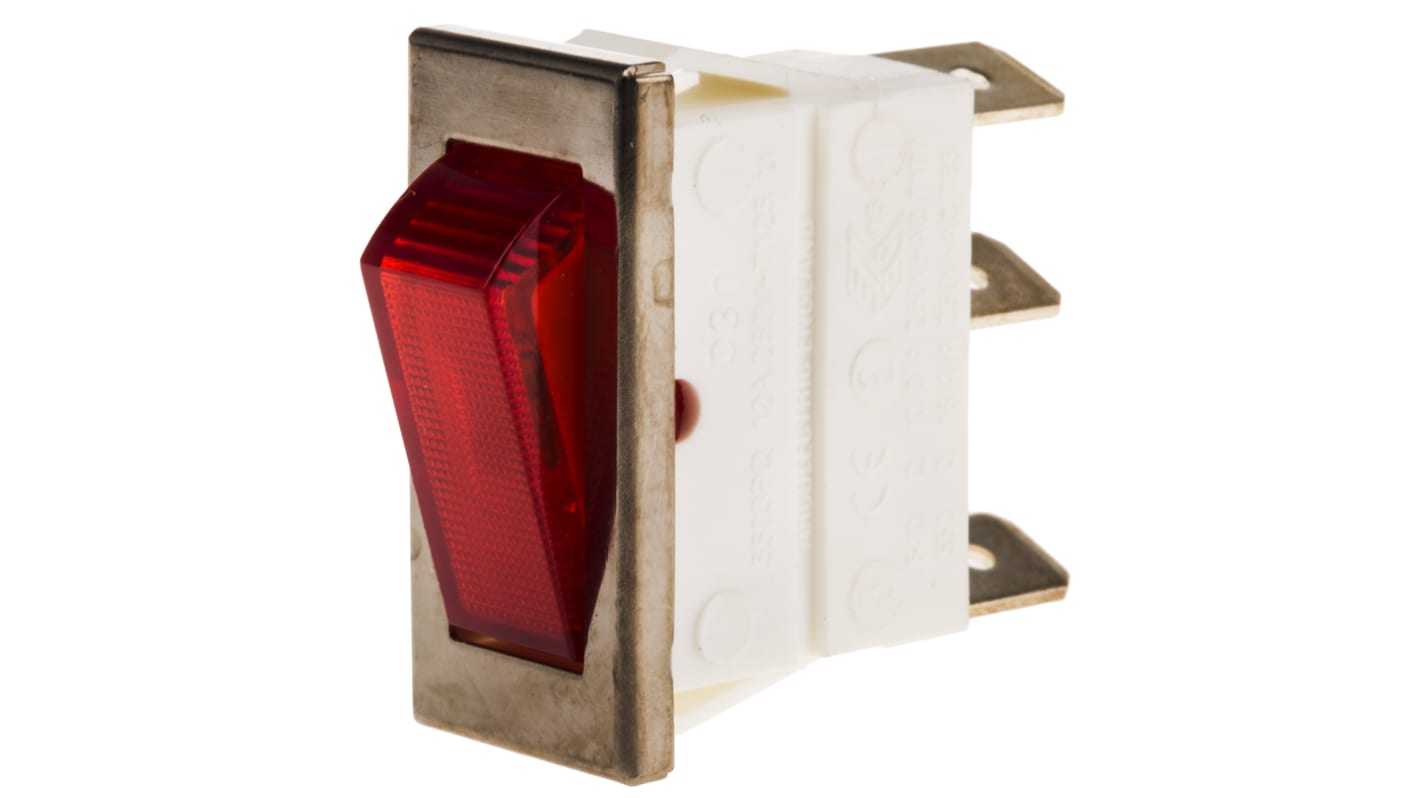

Arcolectric (Bulgin) Ltd Illuminated SPST, On-Off On-None-On Rocker Switch Panel

View all Rocker Switches
Bulk discount available

Subtotal (1 unit)*

£4.64

(exc. VAT)

£5.57

(inc. VAT)

Add to Basket
Select or type quantity
Stock information currently inaccessible - Please check back later

Units
Per unit
1 - 4£4.64
5 - 9£4.41
10 - 24£4.28
25 +£4.07

*price indicative

RS Stock No.:
199-166
Mfr. Part No.:
C5503FQNBC
Brand:
Arcolectric (Bulgin) Ltd
Find similar products by selecting one or more attributes.
Select all

Brand

Arcolectric (Bulgin) Ltd

Product Type

Rocker Switch

Contact Configuration

SPST

Legend

Off (Symbol), On (Symbol)

Switch Operation

On-Off

Housing Material

Nylon

Panel Cutout Size

28.2 x 11.5 mm

Illuminated

Yes

Series

5500

Actuator Colour

Red

Terminal Type

Quick Connect

Mount Type

Panel

IP Rating

IP40

Contact DC Voltage

28V dc

Actuator Style

Rectangular

Minimum Operating Temperature

0°C

Contact AC Voltage

250V ac

Maximum Operating Temperature

85°C

Switch Configuration

On-None-On

Standards/Approvals

VDE, UL, RoHS, CE, BS, CSA

Mechanical Life

100000Operations

Legend Text Colour

White

COO (Country of Origin):
TN

Bulgin 5500 Series Rocker Switch, 16A Current Rating, On-Off Operation - C5503FQNBC


This illuminated rocker switch is designed for SPST (Single Pole Single Throw) applications, providing a reliable On-Off control mechanism. Featuring a rectangular actuator in vivid red, this panel mount switch fits snugly into cut-out dimensions of 28.2mm x 11.5mm. Built from durable nylon 66, it supports a contact current rating of 16A, making it ideal for various electrical and mechanical applications.

Features & Benefits


• Quick connect terminal type simplifies installation

• IP40 ingress protection ensures resistance against dust

• Capable of operating at AC voltages of 125V and 250V

• Compact cut-out size eases integration into panels

• Robust silver alloy contact material enhances conductivity

Applications


• Used for domestic and industrial electrical systems

• Employed in automation for machinery control

• Utilised in commercial equipment requiring manual toggling

What is the operating temperature range for this switch?


It operates effectively within a temperature range of 0 to +85 °C, ensuring functionality in varying environmental conditions.

How does the illuminated feature improve usability?


The illuminated function provides a visual cue, allowing for ease of identification in dark or dimly lit environments, enhancing operational safety and efficiency.

What current ratings are supported by this switch?


This switch can accommodate a contact current rating of up to 16A, ensuring it is suitable for a range of heavy-duty applications.

How can I securely mount the switch in a panel?


This switch is designed for panel mounting, facilitating secure installation through the specified cut-out dimensions of 28.2mm x 11.5mm.

What materials are used in the construction of this switch?


The switch casing is made from nylon 66, and the contact material comprises silver alloy, providing durability and excellent electrical performance.

Illuminated Rocker Switches


A range of standard latching illuminated rocker switches designed for panel mounting. With a choice of red or green illumination, these rocker switches are suitable for a wide range of applications. The snap-in rocker switches are available with a black or white body and can be single or double pole configured, dependant on individual application requirements. The general purpose switches are perfect for everyday use. Suitable for repairing existing equipment or for new designs.

Features and Benefits

• Red or Green Illumination

• 240 Vac operation

• SPST and DPST switch configurations

• Moulded in Nylon 6.6 plastic with a silky textured finish

• Snap-in plastic prongs on the switch sides for secure panel retention

• Connection via push on receptacles

• Easy to operate the smooth rocker actuator

Typical applications for rocker switches

Rocker switches are one of the most frequently used electrical switches in the market today. Due to their simple design and easy operation, rocker switches are found in almost every industry. Some of the most common areas are:

• Automation Control

• Computers and peripherals

• Medical equipment

• Audio video equipment

FAQ

• Are the rocker switches easy to connect?

Yes, as the rocker switches have male quick connect 0.250 in (6.35 mm) tab terminals at the rear connection is easy. Simply select the appropriate red, yellow or blue female receptacle crimp connectors according to wire size required.
