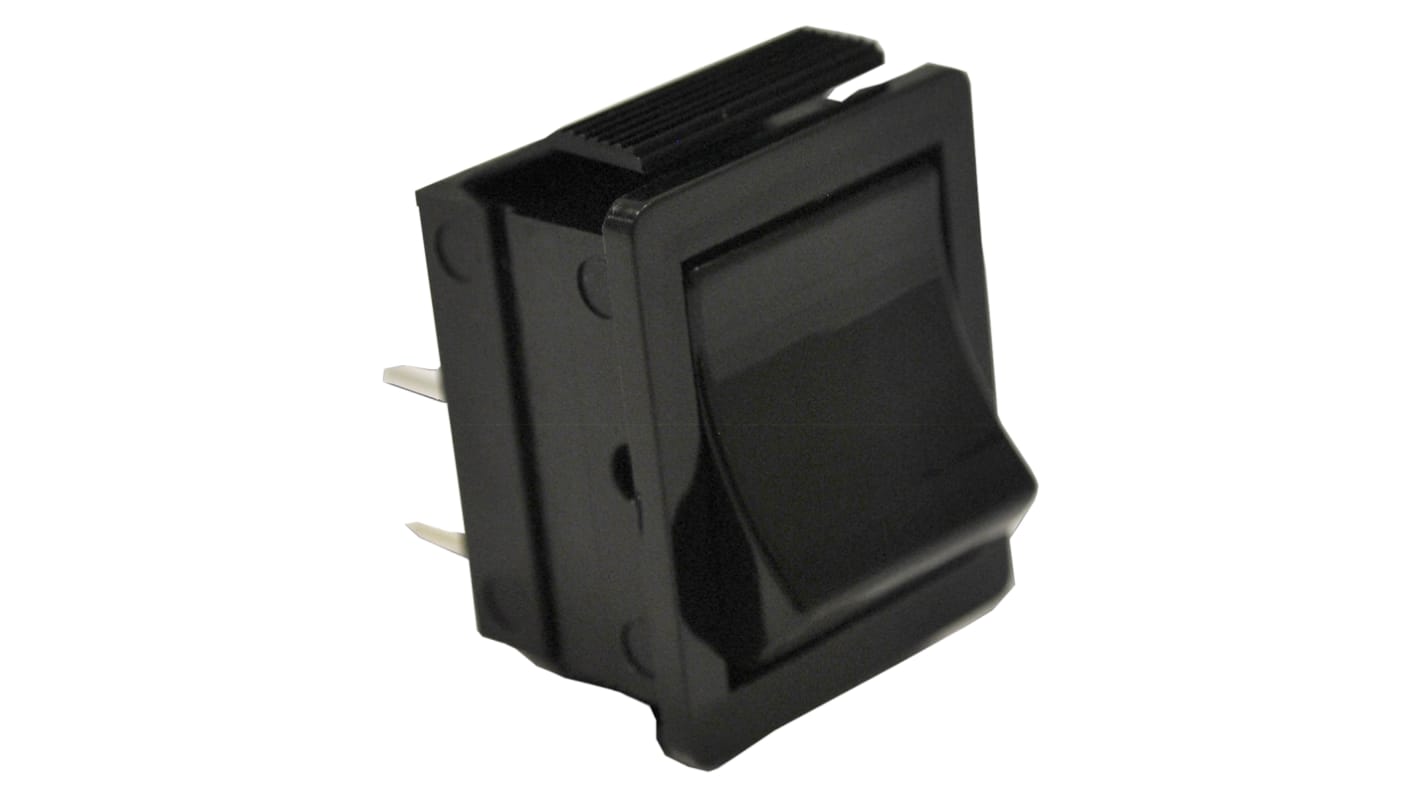

Arcolectric DPST, Latching Rocker Switch Panel
- RS Stock No.:
- 199-144A
- Mfr. Part No.:
- C1350VQAAB
- Brand:
- Arcolectric (Bulgin) Ltd
Bulk discount available
Subtotal (1 pack of 50 units)*
£92.25
(exc. VAT)
£110.70
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 350 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Pack* |
---|---|---|
50 - 50 | £1.845 | £92.25 |
100 - 200 | £1.734 | £86.70 |
250 - 450 | £1.66 | £83.00 |
500 + | £1.55 | £77.50 |
*price indicative
- RS Stock No.:
- 199-144A
- Mfr. Part No.:
- C1350VQAAB
- Brand:
- Arcolectric (Bulgin) Ltd
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Arcolectric (Bulgin) Ltd | |
Contact Configuration | DPST | |
Switch Operation | Latching | |
Panel Cut Out Width | 22.5mm | |
Panel Cut Out Height | 28.2mm | |
Contact Current Rating | 16 A@ 250 V ac | |
Mounting Type | Panel | |
Terminal Type | Quick Connect | |
Panel Cut Out Size | 28.2 x 22.5mm | |
Select all | ||
---|---|---|
Brand Arcolectric (Bulgin) Ltd | ||
Contact Configuration DPST | ||
Switch Operation Latching | ||
Panel Cut Out Width 22.5mm | ||
Panel Cut Out Height 28.2mm | ||
Contact Current Rating 16 A@ 250 V ac | ||
Mounting Type Panel | ||
Terminal Type Quick Connect | ||
Panel Cut Out Size 28.2 x 22.5mm | ||
- COO (Country of Origin):
- TN
Non-Illuminated
Snap-mounting switches with silver contacts
Connection via .250in push-on receptacles
Contact rating 16 (4)A @ 250Vac
Contact resistance <100mΩ
Inrush rating 150A
Nylon 6.6; Polycarbonate actuator, Nylon 6.6 case
Dielectric Strength >1kV (Across Open Contacts); >3kV (Between Poles); >4kV (Between Live Parts and Accessible Metal)
Insulation Resistance >20mΩ
IP Rating IP40
Number Of Operations >104
Hole cutters; single-pole 543-721; double-pole 545-345
Connection via .250in push-on receptacles
Contact rating 16 (4)A @ 250Vac
Contact resistance <100mΩ
Inrush rating 150A
Nylon 6.6; Polycarbonate actuator, Nylon 6.6 case
Dielectric Strength >1kV (Across Open Contacts); >3kV (Between Poles); >4kV (Between Live Parts and Accessible Metal)
Insulation Resistance >20mΩ
IP Rating IP40
Number Of Operations >104
Hole cutters; single-pole 543-721; double-pole 545-345
Approvals
ENEC
Bulgin 1350 Series Rocker Switch, 16A Current Rating, DPST Contact Configuration - C1350VQAAB
This rocker switch is a reliable electrical control switch designed for panel mounting. Featuring a double pole, single throw (DPST) configuration, it operates from an AC voltage range of 125V to 250V. The switch offers a robust contact current rating of 16A, ensuring effective performance in various electrical applications, making it ideal for automation and control tasks.
Features & Benefits
• DPST design enables control of two circuits simultaneously
• Not illuminated, perfect for straightforward applications
• Rectangular actuator shape enhances ergonomic usability
• Made for panel mount with precise cut-out dimensions
• Not illuminated, perfect for straightforward applications
• Rectangular actuator shape enhances ergonomic usability
• Made for panel mount with precise cut-out dimensions
Applications
• Used for controlling lighting circuits in commercial settings
• Suitable for operation in industrial machinery and equipment
• Ideal for consumer electronics requiring a reliable on-off switch
• Utilised in automotive for various electrical controls
• Effective in DIY projects needing robust switch mechanisms
• Suitable for operation in industrial machinery and equipment
• Ideal for consumer electronics requiring a reliable on-off switch
• Utilised in automotive for various electrical controls
• Effective in DIY projects needing robust switch mechanisms
What type of terminals does this switch feature?
It is equipped with quick connect terminals, facilitating rapid assembly and disassembly in various circuit designs.
Can this switch be used in outdoor applications?
While it is designed for robust indoor use, its unprotected nature might not withstand harsh external conditions
hence additional enclosures would be required for outdoor applications.
What current rating can this switch handle effectively?
This switch is rated for a contact current of up to 16A, suitable for numerous high-power applications.
Is it possible to customise the legend text on the switch?
The legend text is pre-defined, indicating 'On' and 'Off' with associated symbols, but custom options may not be available for this model.
How does the switch's design aid in its usability?
The rectangular actuator allows for a comfortable grip, making it easy to operate, and its straightforward design suits various applications without unnecessary complications.
Approvals
ENEC
