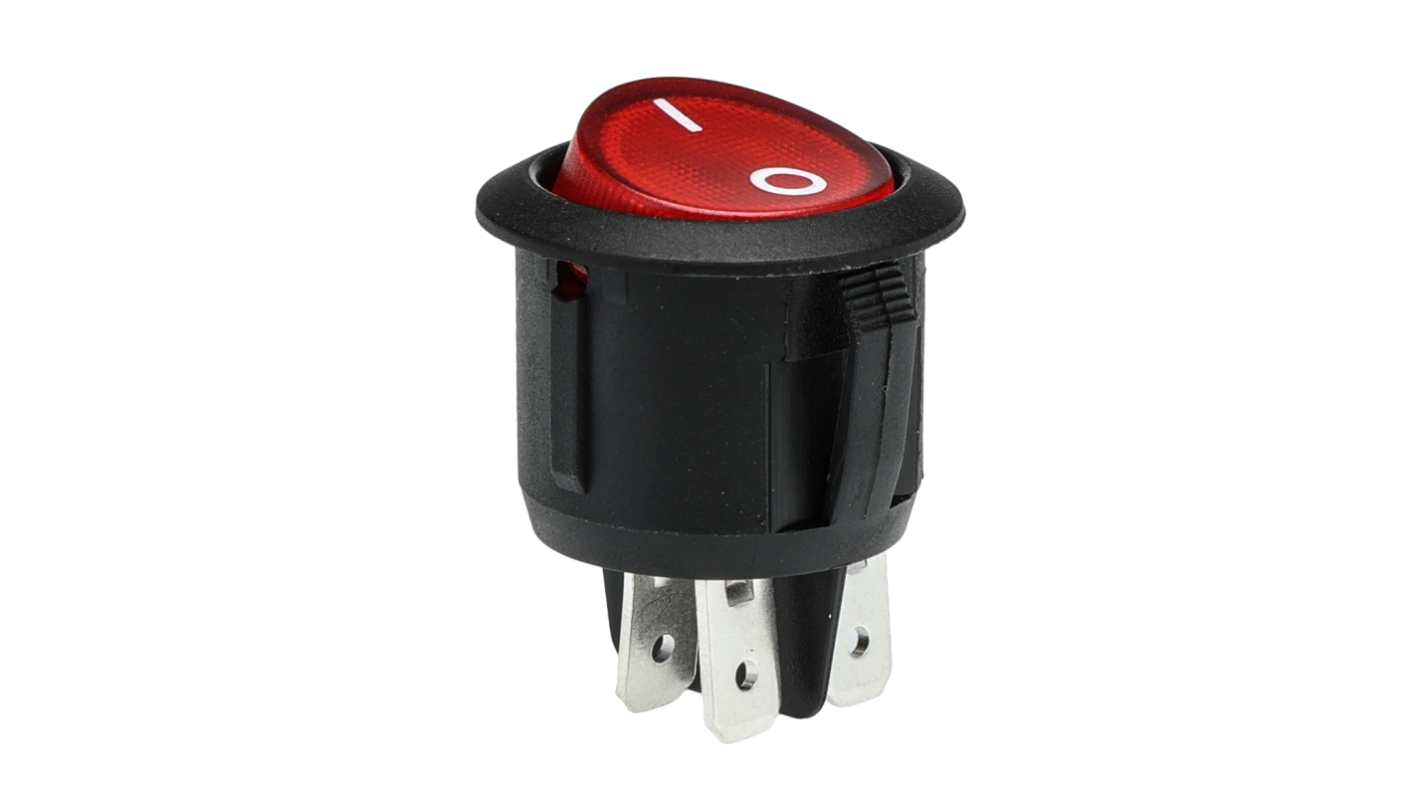

RS PRO Illuminated DPST, Off-None-On Rocker Switch Panel Mount
- RS Stock No.:
- 119-700
- Brand:
- RS PRO
Subtotal (1 unit)*
£2.10
(exc. VAT)
£2.52
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- 984 unit(s) shipping from 02 December 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £2.10 |
*price indicative
- RS Stock No.:
- 119-700
- Brand:
- RS PRO
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | RS PRO | |
| Contact Configuration | DPST | |
| Switch Operation | Off-None-On | |
| Panel Cut Out Diameter | 23.5mm | |
| Contact Current Rating | 16A | |
| Illuminated | Yes | |
| Actuator Colour | Red | |
| Mounting Type | Panel Mount | |
| IP Rating | IP55 | |
| Terminal Type | Quick Connect, Solder | |
| Legend Text | I, O | |
| Lens Shape/Symbol | Round | |
| Panel Cut Out Size | 20.2mm | |
| AC Voltage Rating | 125, 250V | |
| Actuator Shape | Round | |
| Mechanical Life | 10000Operations | |
| Operating Temperature Range | -20 → 85°C | |
| Minimum Operating Temperature | -20°C | |
| Contact Resistance | 50mΩ | |
| Legend Text Colour | White | |
| Case Material | Nylon | |
| Maximum Operating Temperature | 85°C | |
| Contact Material | Silver Tin Oxide Alloy | |
Select all | ||
|---|---|---|
Brand RS PRO | ||
Contact Configuration DPST | ||
Switch Operation Off-None-On | ||
Panel Cut Out Diameter 23.5mm | ||
Contact Current Rating 16A | ||
Illuminated Yes | ||
Actuator Colour Red | ||
Mounting Type Panel Mount | ||
IP Rating IP55 | ||
Terminal Type Quick Connect, Solder | ||
Legend Text I, O | ||
Lens Shape/Symbol Round | ||
Panel Cut Out Size 20.2mm | ||
AC Voltage Rating 125, 250V | ||
Actuator Shape Round | ||
Mechanical Life 10000Operations | ||
Operating Temperature Range -20 → 85°C | ||
Minimum Operating Temperature -20°C | ||
Contact Resistance 50mΩ | ||
Legend Text Colour White | ||
Case Material Nylon | ||
Maximum Operating Temperature 85°C | ||
Contact Material Silver Tin Oxide Alloy | ||
