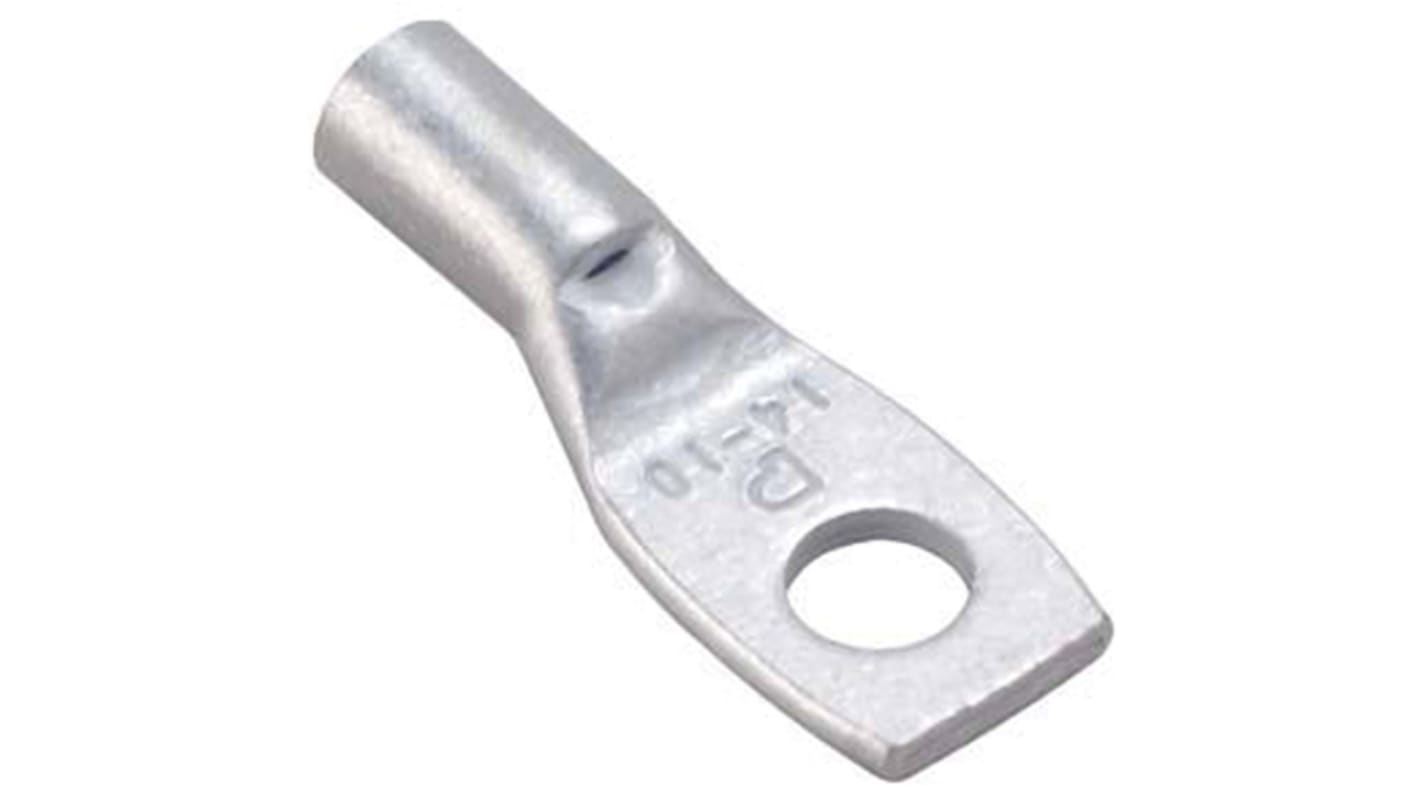

Panduit, LCA Uninsulated Ring Terminal, 1/4in Stud Size, Silver
- RS Stock No.:
- 847-8751
- Mfr. Part No.:
- LCA10-14-L
- Brand:
- Panduit
Discontinued
- RS Stock No.:
- 847-8751
- Mfr. Part No.:
- LCA10-14-L
- Brand:
- Panduit
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Panduit | |
| Series | LCA | |
| Insulation | Uninsulated | |
| Inner Ring Diameter | 0.27in | |
| Outer Ring Diameter | 0.42in | |
| Maximum Wire Size AWG | 10AWG | |
| Minimum Wire Size AWG | 10AWG | |
| Stud Size | 1/4in | |
| Colour | Silver | |
| Contact Plating | Tin | |
| Contact Material | Copper | |
| Thickness | 0.05in | |
| Overall Length | 29.4mm | |
| Select all | ||
|---|---|---|
Brand Panduit | ||
Series LCA | ||
Insulation Uninsulated | ||
Inner Ring Diameter 0.27in | ||
Outer Ring Diameter 0.42in | ||
Maximum Wire Size AWG 10AWG | ||
Minimum Wire Size AWG 10AWG | ||
Stud Size 1/4in | ||
Colour Silver | ||
Contact Plating Tin | ||
Contact Material Copper | ||
Thickness 0.05in | ||
Overall Length 29.4mm | ||
- COO (Country of Origin):
- MX
LCA Series
Panduit LCA uninsulated crimp terminals are tin plated to inhibit corrosion and are available in a range of conductor sizes and stud hole sizes to suit various applications. The LCA range has colour coded barrels to identify the crimp die required. Each terminal has an inspection window to visually assure full conductor insertion.
Approvals
UL Listed and CSA Certified
Panduit Uninsulated Crimp Terminals
