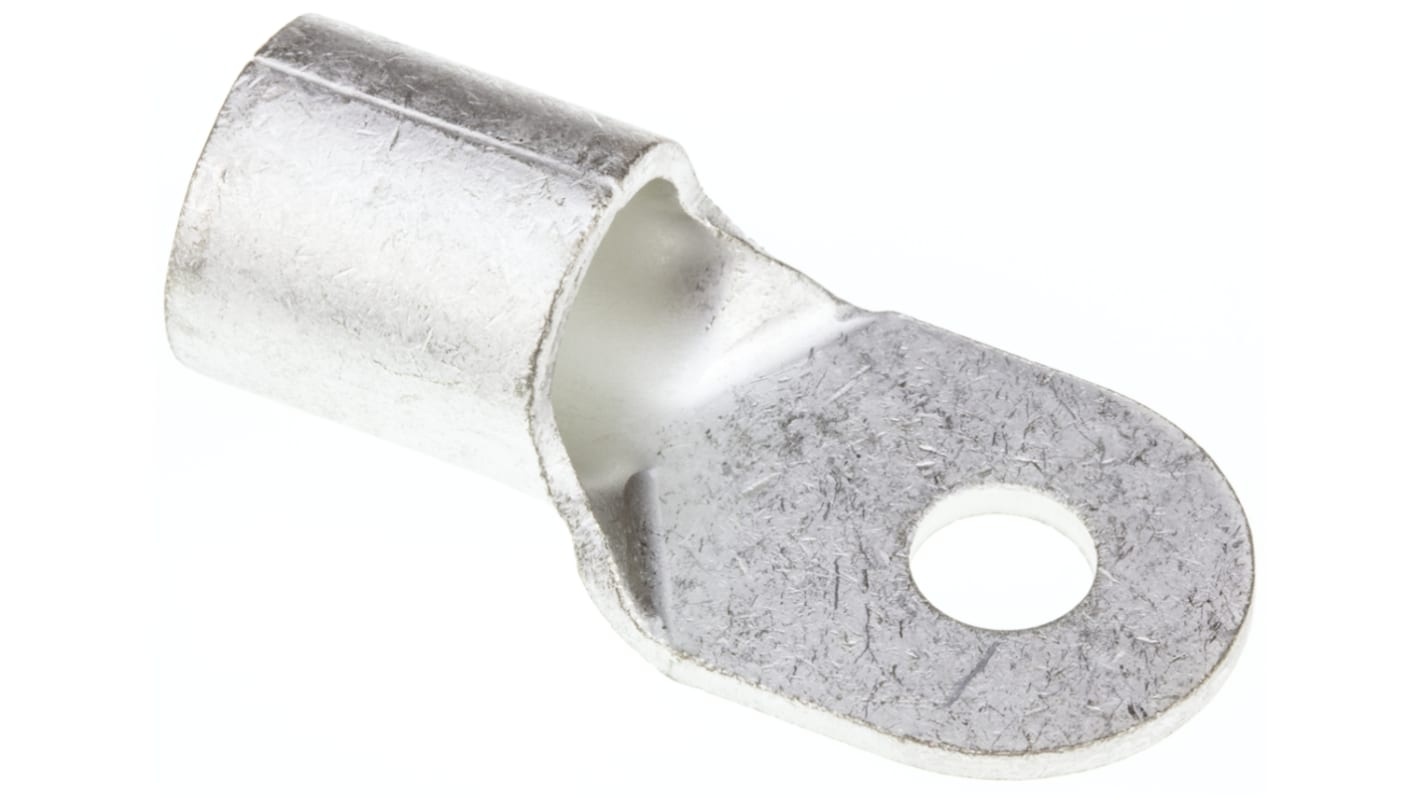

JST, R Uninsulated Ring Terminal, 8 mm Stud Size 2 AWG 2 AWG Wire Size, Grey
- RS Stock No.:
- 838-8370
- Mfr. Part No.:
- 70-8
- Brand:
- JST
Subtotal (1 pack of 10 units)*
£25.27
(exc. VAT)
£30.32
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 190 unit(s) ready to ship
- Plus 150 unit(s) shipping from 04 March 2026
- Plus 200 unit(s) shipping from 26 May 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Pack* |
|---|---|---|
| 10 + | £2.527 | £25.27 |
*price indicative
- RS Stock No.:
- 838-8370
- Mfr. Part No.:
- 70-8
- Brand:
- JST
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | JST | |
| Product Type | Ring Terminal | |
| Series | R | |
| Insulation | Uninsulated | |
| Inner Ring Diameter | 8.4mm | |
| Outer Ring Diameter | 24mm | |
| Minimum Wire Size AWG | 2 AWG | |
| Maximum Wire Size AWG | 2 AWG | |
| Overall Length | 51mm | |
| Stud Size | 8 mm | |
| Colour | Grey | |
| Thickness | 2mm | |
| Standards/Approvals | UL E42024, RoHS, CSA LR20812 | |
| Select all | ||
|---|---|---|
Brand JST | ||
Product Type Ring Terminal | ||
Series R | ||
Insulation Uninsulated | ||
Inner Ring Diameter 8.4mm | ||
Outer Ring Diameter 24mm | ||
Minimum Wire Size AWG 2 AWG | ||
Maximum Wire Size AWG 2 AWG | ||
Overall Length 51mm | ||
Stud Size 8 mm | ||
Colour Grey | ||
Thickness 2mm | ||
Standards/Approvals UL E42024, RoHS, CSA LR20812 | ||
Uninsulated Crimp Ring Terminals, JST
A range of uninsulated crimp ring terminals from JST to suit stud sizes from 3 to 12mm and wire sizes from 0.2 to 10.5mm² (26 to 8 AWG). The terminals have butted seams and are MADE from tin-plated oxygen-free copper.
JST Terminals
Note
JST part numbers Rxxx conform to JIS C2805
Standards
• UL Listed E42024
• CSA Certified LR20812
• CSA Certified LR20812
