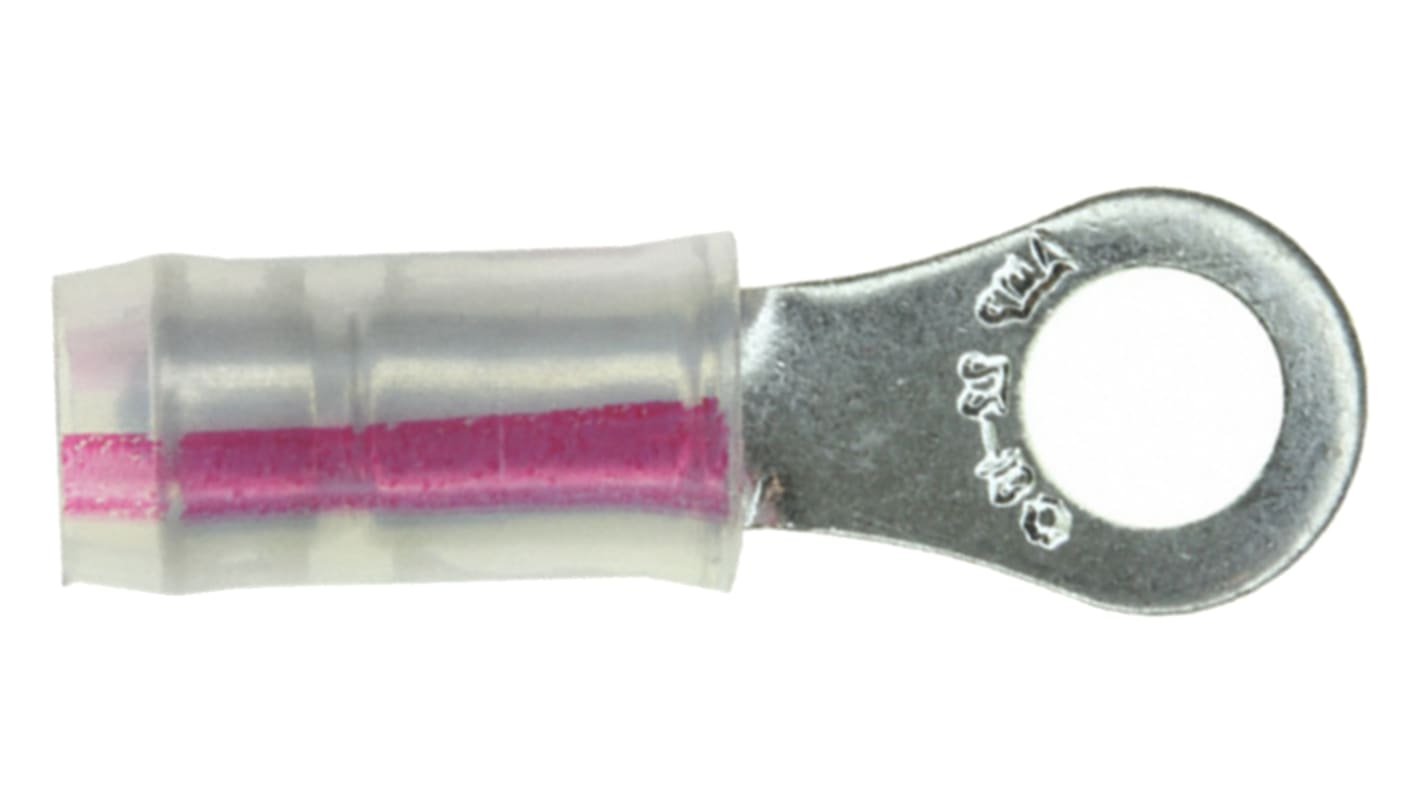

TE Connectivity, PIDG Insulated Ring Terminal, M3.5 (#6) Stud Size, 0.26mm² to 1.65mm² Wire Size, Natural

View all Ring Terminals

Subtotal (1 pack of 50 units)*

£81.15

(exc. VAT)

£97.40

(inc. VAT)

Add to Basket
Select or type quantity
In Stock
  • 100 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
Per Pack*
50 +£1.623£81.15

*price indicative

RS Stock No.:
825-2072
Mfr. Part No.:
53407-1
Brand:
TE Connectivity
Find similar products by selecting one or more attributes.
Select all

Brand

TE Connectivity

Series

PIDG

Insulation

Insulated

Insulation Material

PVDF

Outer Ring Diameter

6.35mm

Inner Ring Diameter

3.68mm

Maximum Wire Size mm²

1.65mm²

Minimum Wire Size mm²

0.26mm²

Minimum Wire Size AWG

22AWG

Maximum Wire Size AWG

16AWG

Stud Size

M3.5 (#6)

Colour

Natural

Contact Material

Copper

Contact Plating

Tin

Thickness

0.79mm

Overall Length

19.86mm

Non Compliant

TE Connectivity PIDG Radiation Resistant Ring Tongue Crimp Terminals


PIDG radiation resistant ring tongue crimp terminals made from high conductivity bright tin-plated copper with a precision-formed metal wire barrel containing serrations which provide maximum contact and tensile strength after crimping. This barrel is enclosed in a copper sleeve and the whole is encased in a PVF2 colour coded insulation sleeve.


TE Connectivity PIDG Terminals
