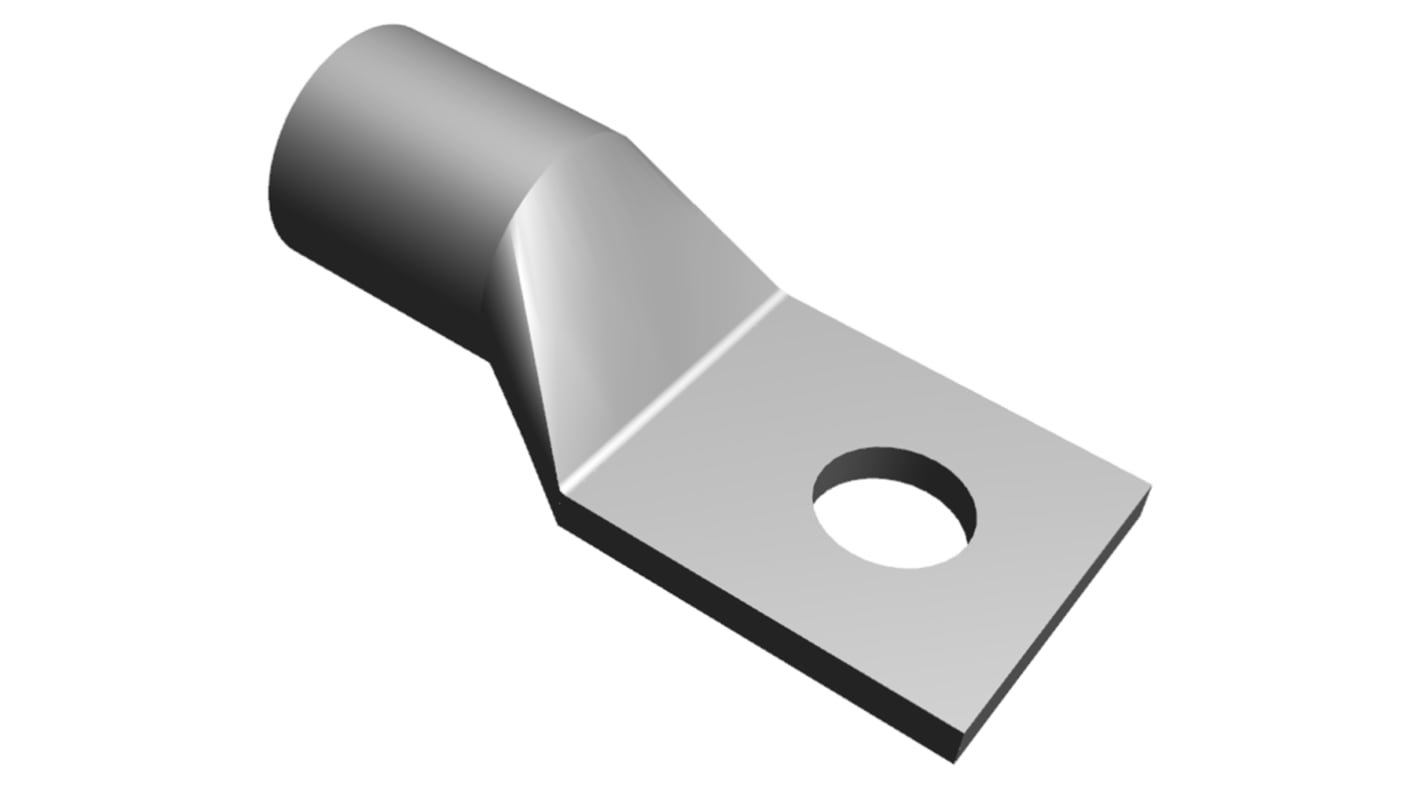

TE Connectivity, AMPOWER Uninsulated Ring Terminal, 9.53mm Stud Size, 67mm² to 70mm² Wire Size
- RS Stock No.:
- 825-1944
- Mfr. Part No.:
- 325403
- Brand:
- TE Connectivity
Discontinued
- RS Stock No.:
- 825-1944
- Mfr. Part No.:
- 325403
- Brand:
- TE Connectivity
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | TE Connectivity | |
| Series | AMPOWER | |
| Insulation | Uninsulated | |
| Outer Ring Diameter | 24.64mm | |
| Inner Ring Diameter | 9.91mm | |
| Maximum Wire Size mm² | 70mm² | |
| Minimum Wire Size mm² | 67mm² | |
| Maximum Wire Size AWG | 2/0AWG | |
| Minimum Wire Size AWG | 2/0AWG | |
| Stud Size | 9.53mm | |
| Contact Plating | Tin | |
| Contact Material | Copper | |
| Thickness | 2.79mm | |
| Overall Length | 53.59mm | |
| Select all | ||
|---|---|---|
Brand TE Connectivity | ||
Series AMPOWER | ||
Insulation Uninsulated | ||
Outer Ring Diameter 24.64mm | ||
Inner Ring Diameter 9.91mm | ||
Maximum Wire Size mm² 70mm² | ||
Minimum Wire Size mm² 67mm² | ||
Maximum Wire Size AWG 2/0AWG | ||
Minimum Wire Size AWG 2/0AWG | ||
Stud Size 9.53mm | ||
Contact Plating Tin | ||
Contact Material Copper | ||
Thickness 2.79mm | ||
Overall Length 53.59mm | ||
TE Connectivity AMPOWER Tubular Crimp Terminals
AMPOWER series tubular terminals made from seamless tubular annealed copper (as per ASTM B-75) with a tin plating (as per MIL-T-10727). These AMPOWER tubular terminals have a conical entry for easy wire insertion an inspection window or sight hole and the terminal tongue is marked with the metric wire and stud size. These AMPOWER tubular crimp terminals are suitable for use in power generation and distribution applications.
TE Connectivity AMPOWER Crimp Terminals
