RS PRO, DRNB Uninsulated Ring Terminal, 10 Stud Size 6 AWG 6 AWG Wire Size, Grey
- RS Stock No.:
- 809-2284
- Brand:
- RS PRO
Bulk discount available
Subtotal (1 pack of 25 units)*
£8.25
(exc. VAT)
£10.00
(inc. VAT)
Add 175 units to get free delivery
In Stock
- Plus 3,650 unit(s) shipping from 16 February 2026
- Plus 1,075 unit(s) shipping from 16 February 2026
- Plus 1,500 unit(s) shipping from 27 April 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Pack* |
|---|---|---|
| 25 - 100 | £0.33 | £8.25 |
| 125 - 225 | £0.303 | £7.58 |
| 250 - 600 | £0.297 | £7.43 |
| 625 - 1225 | £0.27 | £6.75 |
| 1250 + | £0.248 | £6.20 |
*price indicative
- RS Stock No.:
- 809-2284
- Brand:
- RS PRO
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | RS PRO | |
| Product Type | Ring Terminal | |
| Series | DRNB | |
| Insulation | Uninsulated | |
| Outer Ring Diameter | 11mm | |
| Inner Ring Diameter | 5.3mm | |
| Maximum Wire Size AWG | 6 AWG | |
| Minimum Wire Size AWG | 6 AWG | |
| Overall Length | 25.5mm | |
| Stud Size | 10 | |
| Colour | Grey | |
| Contact Material | Copper | |
| Contact Plating | Tin | |
| Thickness | 1.2mm | |
| Standards/Approvals | ANSI/ESD S20.20:2021 Electrostatic Control Standard, RoHS | |
| Maximum Operating Temperature | 150°C | |
| Minimum Operating Temperature | -40°C | |
| Select all | ||
|---|---|---|
Brand RS PRO | ||
Product Type Ring Terminal | ||
Series DRNB | ||
Insulation Uninsulated | ||
Outer Ring Diameter 11mm | ||
Inner Ring Diameter 5.3mm | ||
Maximum Wire Size AWG 6 AWG | ||
Minimum Wire Size AWG 6 AWG | ||
Overall Length 25.5mm | ||
Stud Size 10 | ||
Colour Grey | ||
Contact Material Copper | ||
Contact Plating Tin | ||
Thickness 1.2mm | ||
Standards/Approvals ANSI/ESD S20.20:2021 Electrostatic Control Standard, RoHS | ||
Maximum Operating Temperature 150°C | ||
Minimum Operating Temperature -40°C | ||
- COO (Country of Origin):
- TW

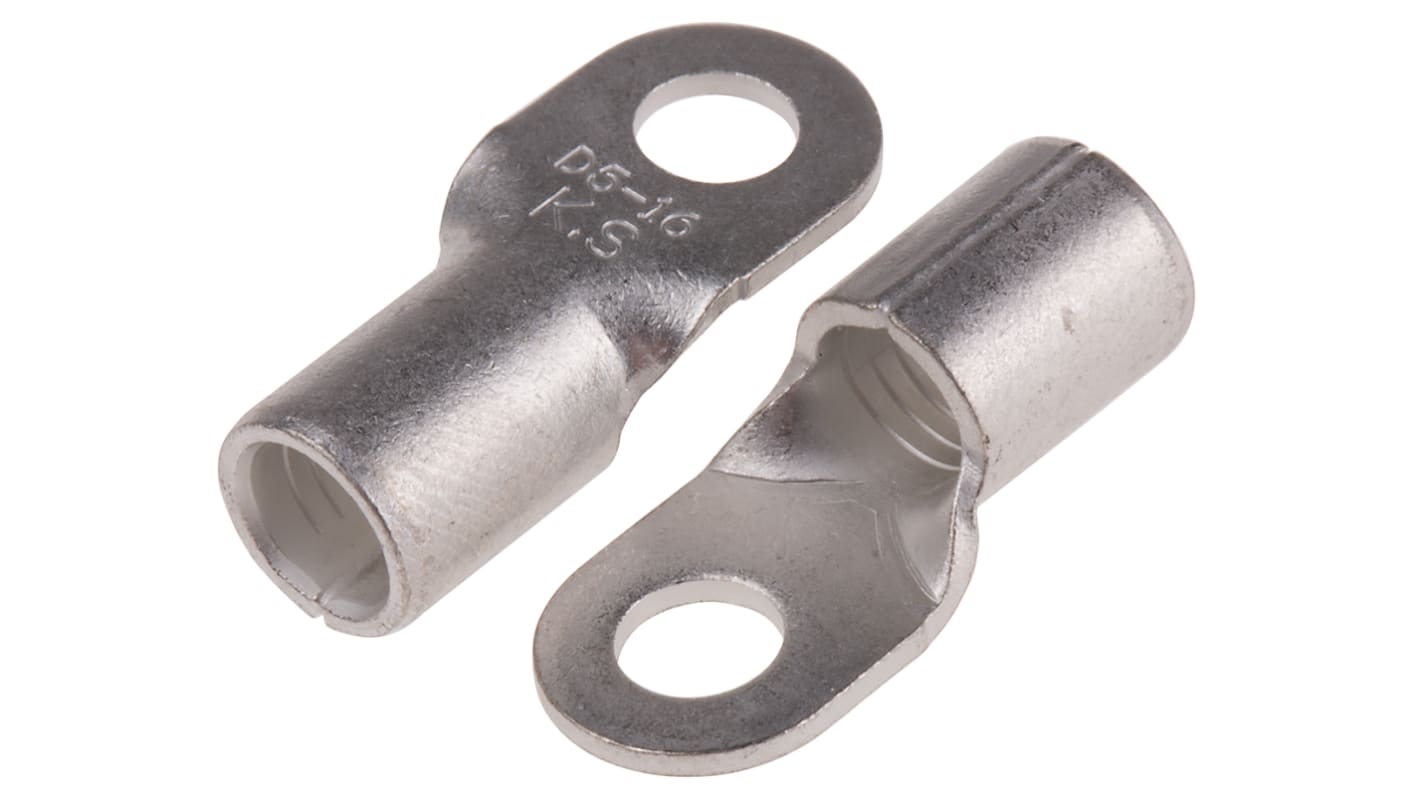

RS PRO Uninsulated Crimp Ring Terminals
RS PRO uninsulated crimp ring terminals are electrical connectors used to terminate or connect wires in various applications. Unlike insulated terminals that have a protective covering or sleeve, uninsulated crimp ring terminals consist only of a metal ring without any insulation.
These high-quality uninsulated crimp ring terminals are also known as a ring connector or cable lug. Ring crimp terminals are used for connecting an electrical cable or wire to a stud or a post on an electrical component such as a battery terminal. This ring terminal is made from highly conductive copper with a brazed seam for maximum electrical conductivity and corrosion resistance.
Features and Benefits
Applications
