RS PRO Uninsulated Ring Terminal, 8.4mm Stud Size, 2.5mm² to 6mm² Wire Size
- RS Stock No.:
- 809-2268
- Brand:
- RS PRO
4500 In stock - FREE next working day delivery available
1100 available from Europe for delivery within 1 working day(s).
Added
Price Each (In a Pack of 100)
£0.178
(exc. VAT)
£0.214
(inc. VAT)
| Units | Per unit | Per Pack* |
| 100 - 400 | £0.178 | £17.80 |
| 500 - 2400 | £0.151 | £15.10 |
| 2500 + | £0.133 | £13.30 |
| *price indicative | ||
- RS Stock No.:
- 809-2268
- Brand:
- RS PRO
Technical Reference
Legislation and Compliance
- COO (Country of Origin):
- TW
Product Details

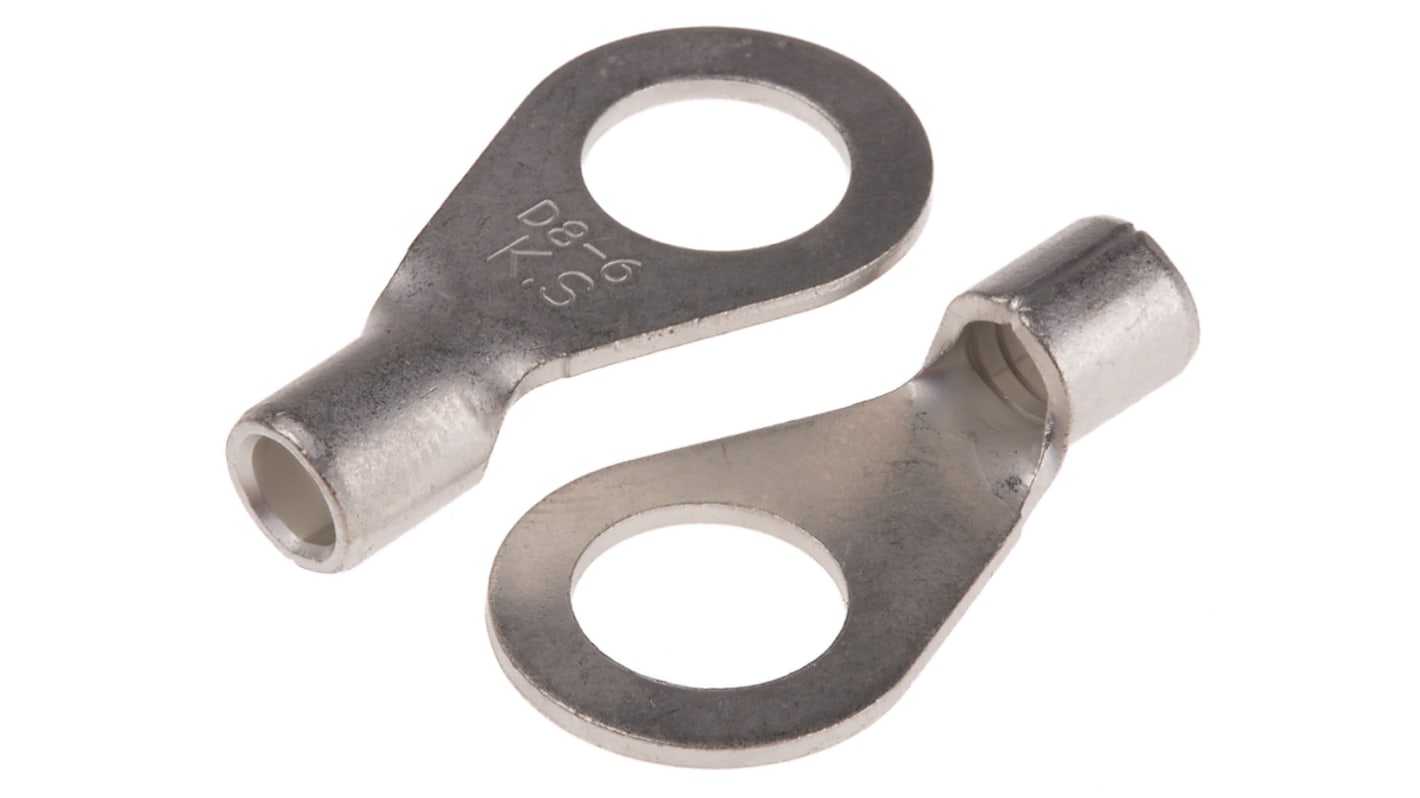

RS PRO Uninsulated Crimp Ring Terminals
RS PRO uninsulated crimp ring terminals are electrical connectors used to terminate or connect wires in various applications. Unlike insulated terminals that have a protective covering or sleeve, uninsulated crimp ring terminals consist only of a metal ring without any insulation.
These high-quality uninsulated crimp ring terminals are also known as a ring connector or cable lug. Ring crimp terminals are used for connecting an electrical cable or wire to a stud or a post on an electrical component such as a battery terminal. This ring terminal is made from highly conductive copper with a brazed seam for maximum electrical conductivity and corrosion resistance.
These high-quality uninsulated crimp ring terminals are also known as a ring connector or cable lug. Ring crimp terminals are used for connecting an electrical cable or wire to a stud or a post on an electrical component such as a battery terminal. This ring terminal is made from highly conductive copper with a brazed seam for maximum electrical conductivity and corrosion resistance.
Features and Benefits
- RS PRO uninsulated DIN 46234 crimp ring terminals
- Made from copper
- Brazed seam
- Available with a variety of wire sizes
Applications
- Electrical installation
- Cable connection
Specifications
Attribute | Value |
|---|---|
| Insulation | Uninsulated |
| Outer Ring Diameter | 14mm |
| Inner Ring Diameter | 8.4mm |
| Minimum Wire Size mm² | 2.5mm² |
| Maximum Wire Size mm² | 6mm² |
| Maximum Wire Size AWG | 10AWG |
| Minimum Wire Size AWG | 12AWG |
| Stud Size | 8.4mm |
| Contact Material | Copper |
| Thickness | 1mm |
| Overall Length | 19mm |
