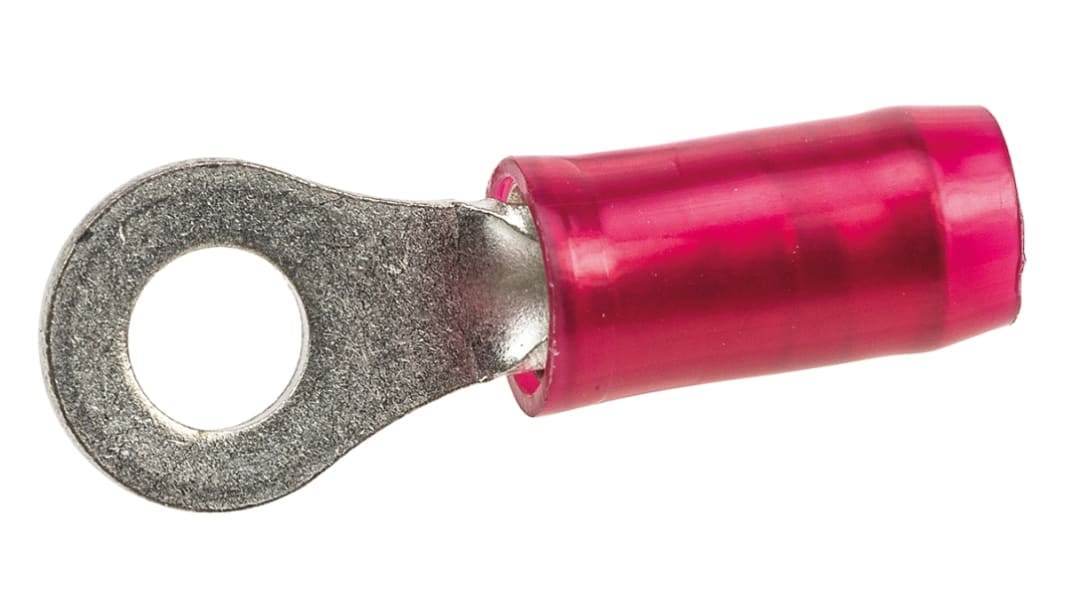

TE Connectivity, PIDG Insulated Ring Terminal, M3.5 Stud Size, 0.26mm² to 1.65mm² Wire Size, Red
- RS Stock No.:
- 457-5097
- Mfr. Part No.:
- 36151
- Brand:
- TE Connectivity
Bulk discount available
Subtotal (1 pack of 100 units)**
£21.00
(exc. VAT)
£25.00
(inc. VAT)
19300 In stock - FREE next working day delivery available*
1200 available from Europe for delivery within 2 working day(s).
* Delivery dates may change based on your chosen quantity and delivery address.
FREE delivery for orders over £50.00
Units | Per unit | Per Pack** |
|---|---|---|
| 100 - 400 | £0.21 | £21.00 |
| 500 - 2400 | £0.181 | £18.10 |
| 2500 + | £0.172 | £17.20 |
**price indicative
- RS Stock No.:
- 457-5097
- Mfr. Part No.:
- 36151
- Brand:
- TE Connectivity
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | TE Connectivity | |
| Series | PIDG | |
| Insulation | Insulated | |
| Insulation Material | Nylon | |
| Inner Ring Diameter | 3.68mm | |
| Outer Ring Diameter | 7.14mm | |
| Maximum Wire Size mm² | 1.65mm² | |
| Minimum Wire Size mm² | 0.26mm² | |
| Maximum Wire Size AWG | 16AWG | |
| Minimum Wire Size AWG | 22AWG | |
| Stud Size | M3.5 | |
| Colour | Red | |
| Contact Material | Copper | |
| Contact Plating | Tin | |
| Thickness | 0.79mm | |
| Overall Length | 20.24mm | |
