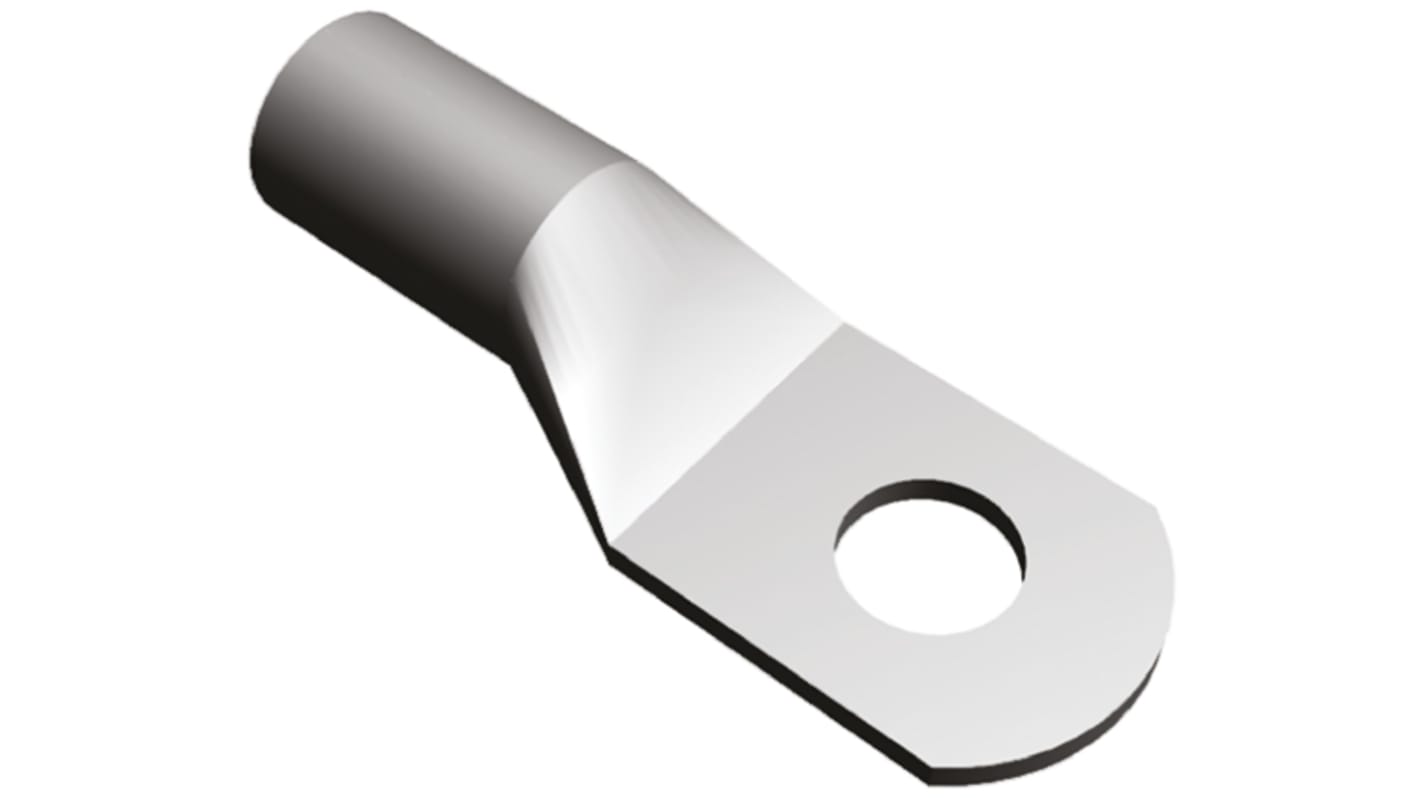

TE Connectivity, XCT Ring Terminal, 8mm Stud Size, 35mm² to 35mm² Wire Size
- RS Stock No.:
- 311-9769
- Mfr. Part No.:
- 710027-2
- Brand:
- TE Connectivity
Bulk discount available
Subtotal (1 box of 25 units)*
£71.65
(exc. VAT)
£85.975
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 450 unit(s) ready to ship
- Plus 100 unit(s) ready to ship from another location
- Plus 350 unit(s) shipping from 10 September 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Box* |
---|---|---|
25 - 100 | £2.866 | £71.65 |
125 - 600 | £2.35 | £58.75 |
625 - 1225 | £2.207 | £55.175 |
1250 - 2475 | £2.064 | £51.60 |
2500 + | £1.949 | £48.725 |
*price indicative
- RS Stock No.:
- 311-9769
- Mfr. Part No.:
- 710027-2
- Brand:
- TE Connectivity
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | TE Connectivity | |
Series | XCT | |
Outer Ring Diameter | 17mm | |
Inner Ring Diameter | 8.3mm | |
Minimum Wire Size mm² | 35mm² | |
Maximum Wire Size mm² | 35mm² | |
Minimum Wire Size AWG | 2AWG | |
Maximum Wire Size AWG | 2AWG | |
Stud Size | 8mm | |
Contact Plating | Tin | |
Contact Material | Copper | |
Thickness | 1.5mm | |
Overall Length | 46mm | |
Select all | ||
---|---|---|
Brand TE Connectivity | ||
Series XCT | ||
Outer Ring Diameter 17mm | ||
Inner Ring Diameter 8.3mm | ||
Minimum Wire Size mm² 35mm² | ||
Maximum Wire Size mm² 35mm² | ||
Minimum Wire Size AWG 2AWG | ||
Maximum Wire Size AWG 2AWG | ||
Stud Size 8mm | ||
Contact Plating Tin | ||
Contact Material Copper | ||
Thickness 1.5mm | ||
Overall Length 46mm | ||
