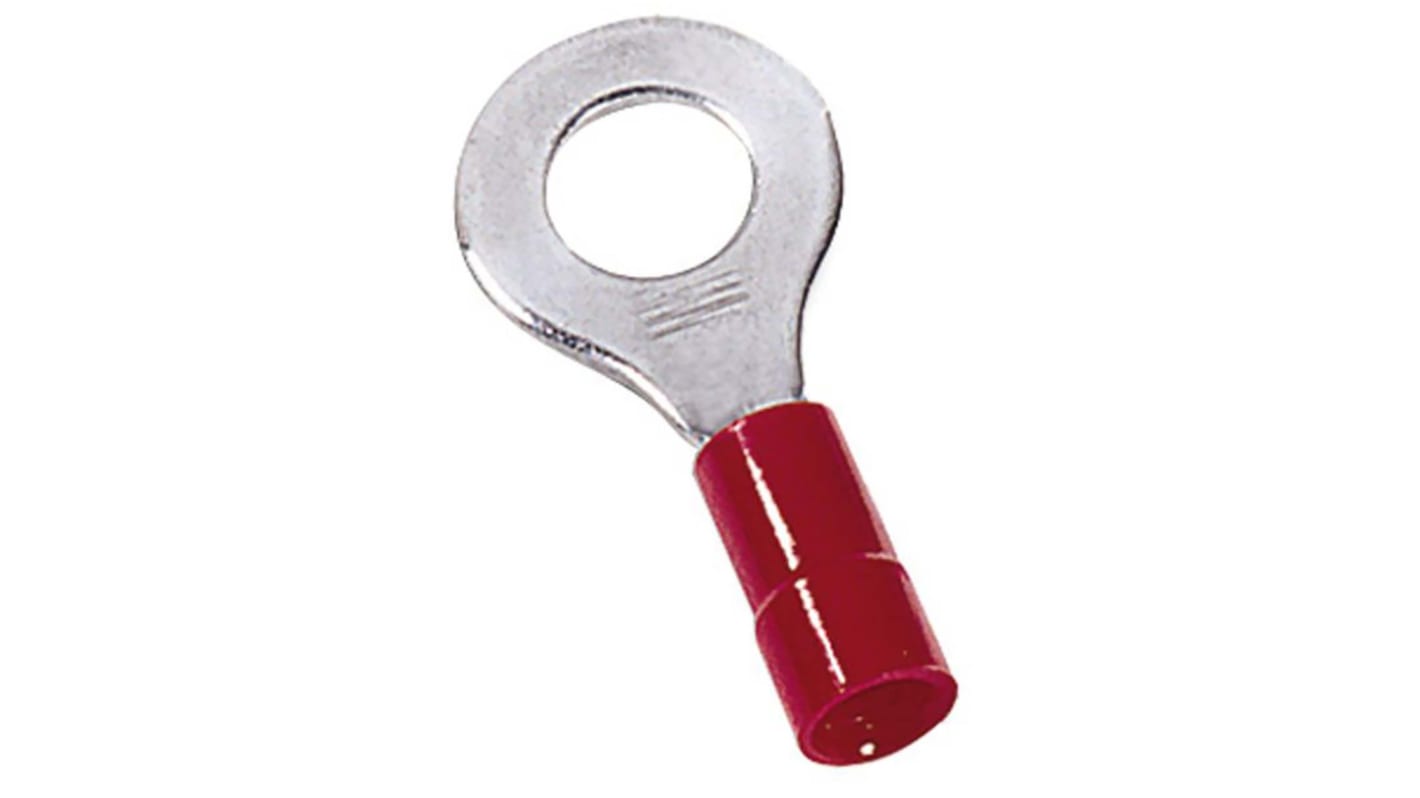

MECATRACTION, N Insulated Ring Terminal, M5 Stud Size to 1,5mm² Wire Size, Red
- RS Stock No.:
- 200-6940
- Mfr. Part No.:
- C100NA1-5
- Brand:
- MECATRACTION
Subtotal (1 box of 100 units)*
£13.30
(exc. VAT)
£16.00
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 600 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Box* |
---|---|---|
100 + | £0.133 | £13.30 |
*price indicative
- RS Stock No.:
- 200-6940
- Mfr. Part No.:
- C100NA1-5
- Brand:
- MECATRACTION
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | MECATRACTION | |
Series | N | |
Series Number | C100 | |
Insulation | Insulated | |
Insulation Material | Polyamide | |
Outer Ring Diameter | 8mm | |
Inner Ring Diameter | 5.2mm | |
Maximum Wire Size mm² | 1,5mm² | |
Stud Size | M5 | |
Colour | Red | |
Contact Material | Copper | |
Contact Plating | Tin | |
Overall Length | 21mm | |
Select all | ||
---|---|---|
Brand MECATRACTION | ||
Series N | ||
Series Number C100 | ||
Insulation Insulated | ||
Insulation Material Polyamide | ||
Outer Ring Diameter 8mm | ||
Inner Ring Diameter 5.2mm | ||
Maximum Wire Size mm² 1,5mm² | ||
Stud Size M5 | ||
Colour Red | ||
Contact Material Copper | ||
Contact Plating Tin | ||
Overall Length 21mm | ||
RoHS Status: Exempt
C100NA1-5
The Mecatraction preinsulated ring terminal.
Tin-plated copper
Barrel with funnel entry
Grooves in the barrel for a better electrical contact and a better tensile strength
Polyamide insulation sleeve.
Maximum operating temperature: +105°C
Easy entry conical entry
Flammability rating: UL94V2
Barrel with funnel entry
Grooves in the barrel for a better electrical contact and a better tensile strength
Polyamide insulation sleeve.
Maximum operating temperature: +105°C
Easy entry conical entry
Flammability rating: UL94V2
