- RS Stock No.:
- 200-6931
- Mfr. Part No.:
- C100SB1-5
- Brand:
- MECATRACTION
Available to back order for despatch 16/05/2024
Added
Price Each (In a Box of 100)
£0.229
(exc. VAT)
£0.275
(inc. VAT)
Units | Per unit | Per Box* |
100 + | £0.229 | £22.90 |
*price indicative |
- RS Stock No.:
- 200-6931
- Mfr. Part No.:
- C100SB1-5
- Brand:
- MECATRACTION
Technical Reference
Legislation and Compliance
RoHS Status: Not Applicable
Product Details

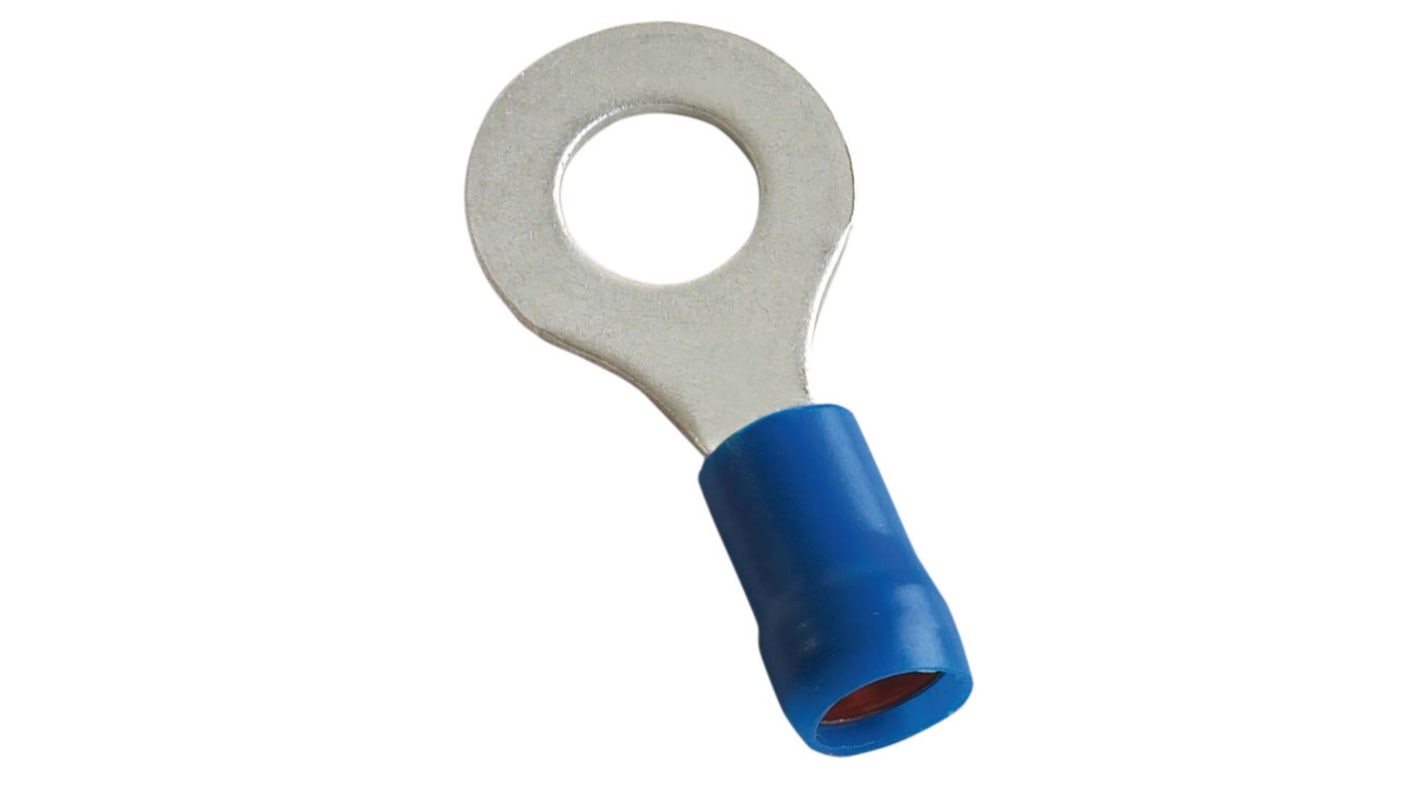

C100SB1-5
The Mecatraction preinsulated double crimp ring terminal.
Tin-plated copper
Barrel with funnel entry
Grooves in the barrel for a better electrical contact and a better tensile strength
Copper sleeve for crimping insulation giving better resistance to vibration
Polycarbonate insulation sleeve
Max. operating temperature: +125°C
Flammability rating: UL94V0
Barrel with funnel entry
Grooves in the barrel for a better electrical contact and a better tensile strength
Copper sleeve for crimping insulation giving better resistance to vibration
Polycarbonate insulation sleeve
Max. operating temperature: +125°C
Flammability rating: UL94V0
Specifications
Attribute | Value |
---|---|
Series | S |
Series Number | C100 |
Insulation | Insulated |
Insulation Material | Polycarbonate |
Outer Ring Diameter | 8.6mm |
Inner Ring Diameter | 5.2mm |
Maximum Wire Size mm² | 2,5mm² |
Stud Size | M5 |
Colour | Blue |
Contact Material | Copper |
Contact Plating | Tin |
Overall Length | 21mm |
