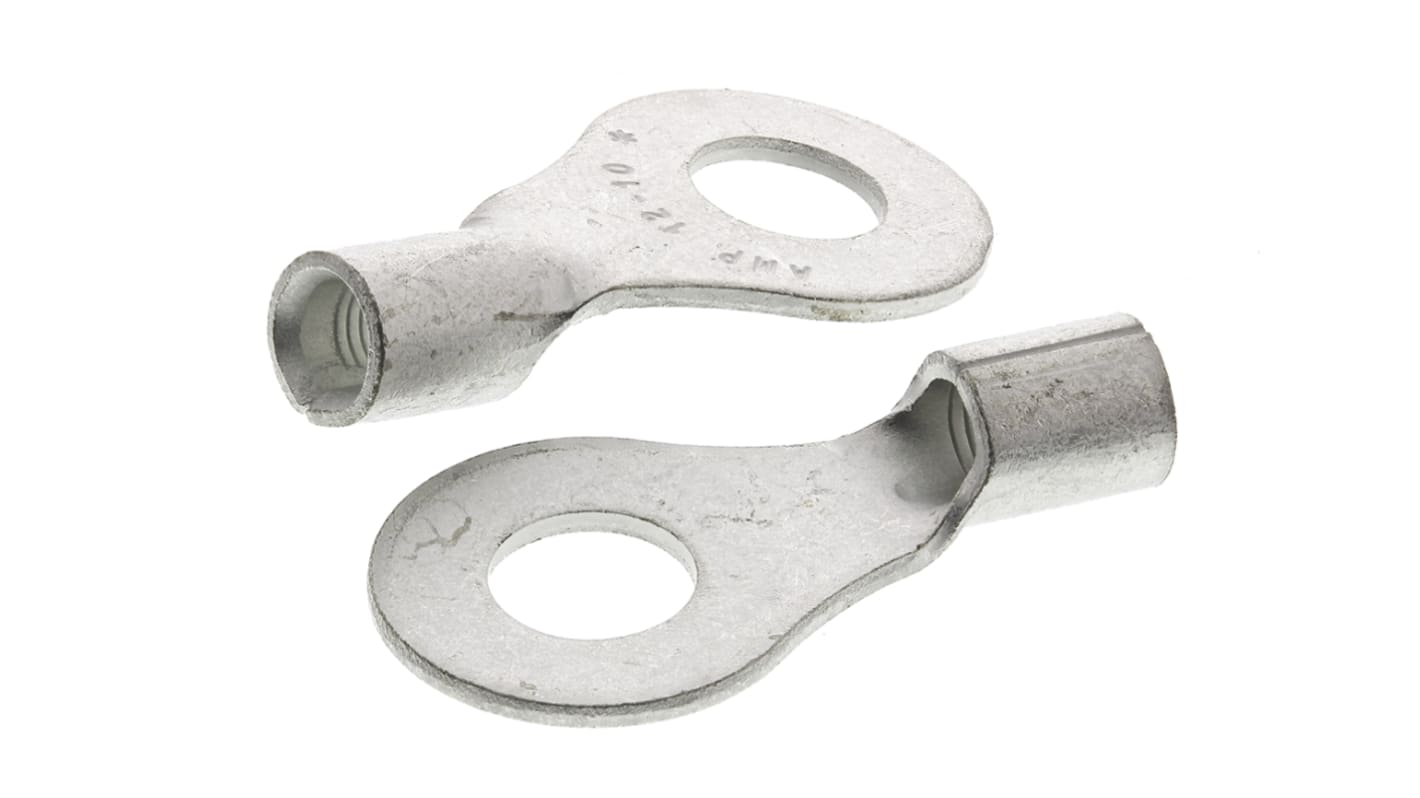

TE Connectivity, SOLISTRAND Uninsulated Ring Terminal, M6 Stud Size, 2.6mm² to 6.6mm² Wire Size
- RS Stock No.:
- 190-3731
- Mfr. Part No.:
- 130230
- Brand:
- TE Connectivity
Currently unavailable
Sorry, we don't know when this will be back in stock.
- RS Stock No.:
- 190-3731
- Mfr. Part No.:
- 130230
- Brand:
- TE Connectivity
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | TE Connectivity | |
Series | SOLISTRAND | |
Insulation | Uninsulated | |
Inner Ring Diameter | 6mm | |
Outer Ring Diameter | 13.5mm | |
Minimum Wire Size mm² | 2.6mm² | |
Maximum Wire Size mm² | 6.6mm² | |
Minimum Wire Size AWG | 12AWG | |
Maximum Wire Size AWG | 10AWG | |
Stud Size | M6 | |
Contact Material | Copper | |
Contact Plating | Tin | |
Overall Length | 25.5mm | |
Select all | ||
---|---|---|
Brand TE Connectivity | ||
Series SOLISTRAND | ||
Insulation Uninsulated | ||
Inner Ring Diameter 6mm | ||
Outer Ring Diameter 13.5mm | ||
Minimum Wire Size mm² 2.6mm² | ||
Maximum Wire Size mm² 6.6mm² | ||
Minimum Wire Size AWG 12AWG | ||
Maximum Wire Size AWG 10AWG | ||
Stud Size M6 | ||
Contact Material Copper | ||
Contact Plating Tin | ||
Overall Length 25.5mm | ||
