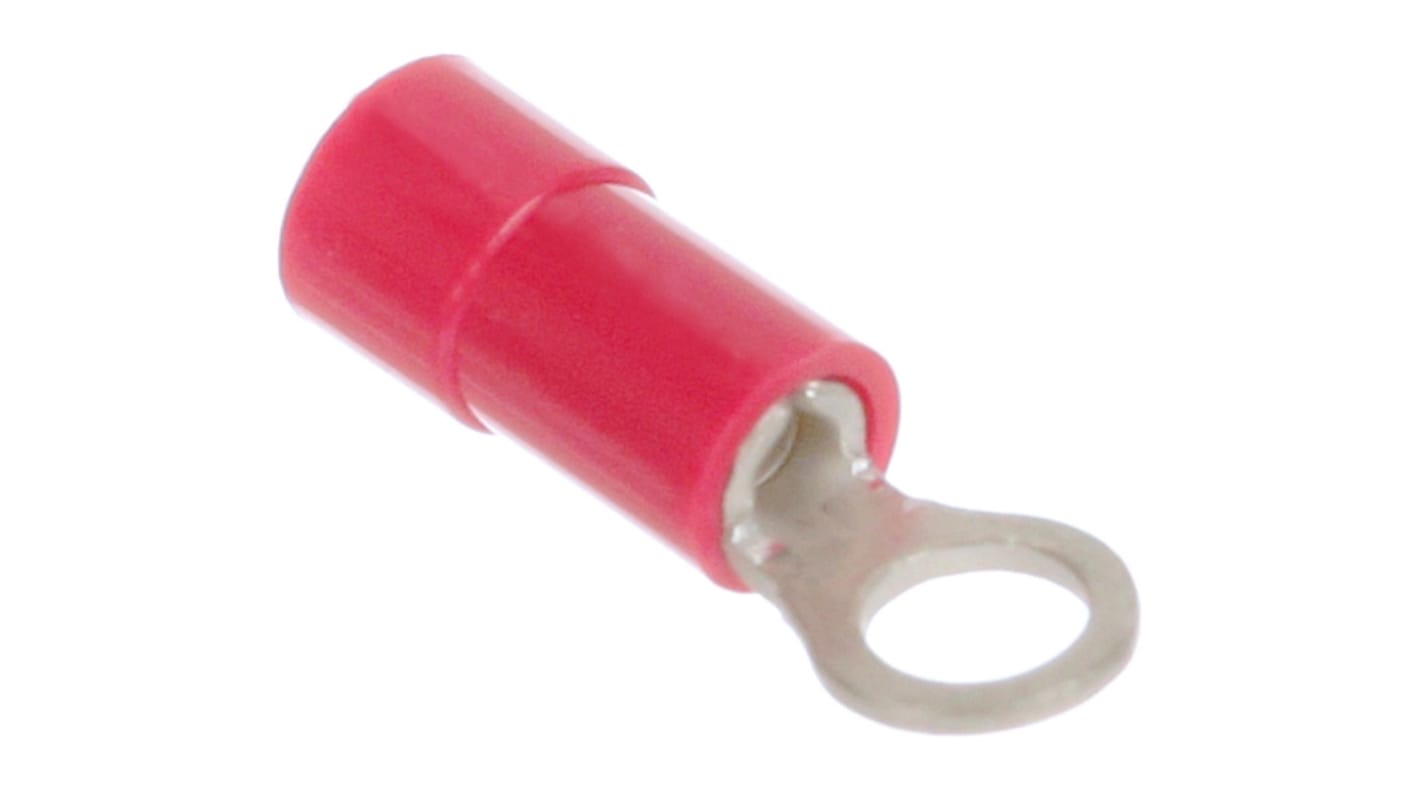

Molex Insulated Ring Terminal, 5 → 6 (M3 → 3.5) Stud Size, 0.35mm² to 0.8mm² Wire Size
- RS Stock No.:
- 186-0281
- Mfr. Part No.:
- 19070-0009
- Brand:
- Molex
Subtotal (1 bag of 1000 units)*
£121.32
(exc. VAT)
£145.58
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 1 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Bag(s) | Per Bag | Per unit* |
|---|---|---|
| 1 + | £121.32 | £0.121 |
*price indicative
- RS Stock No.:
- 186-0281
- Mfr. Part No.:
- 19070-0009
- Brand:
- Molex
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Molex | |
| Series Number | 19070 | |
| Insulation | Insulated | |
| Insulation Material | PVC | |
| Outer Ring Diameter | 6mm | |
| Inner Ring Diameter | 3.71mm | |
| Maximum Wire Size mm² | 0.8mm² | |
| Minimum Wire Size mm² | 0.35mm² | |
| Maximum Wire Size AWG | 18AWG | |
| Minimum Wire Size AWG | 22AWG | |
| Stud Size | 5 → 6 (M3 → 3.5) | |
| Contact Material | Copper | |
| Contact Plating | Tin | |
| Overall Length | 18.01mm | |
| Maximum Operating Temperature | +105°C | |
| Select all | ||
|---|---|---|
Brand Molex | ||
Series Number 19070 | ||
Insulation Insulated | ||
Insulation Material PVC | ||
Outer Ring Diameter 6mm | ||
Inner Ring Diameter 3.71mm | ||
Maximum Wire Size mm² 0.8mm² | ||
Minimum Wire Size mm² 0.35mm² | ||
Maximum Wire Size AWG 18AWG | ||
Minimum Wire Size AWG 22AWG | ||
Stud Size 5 → 6 (M3 → 3.5) | ||
Contact Material Copper | ||
Contact Plating Tin | ||
Overall Length 18.01mm | ||
Maximum Operating Temperature +105°C | ||
- COO (Country of Origin):
- US
InsulKrimp Ring Tongue Terminal for 18-22 AWG Wire.
