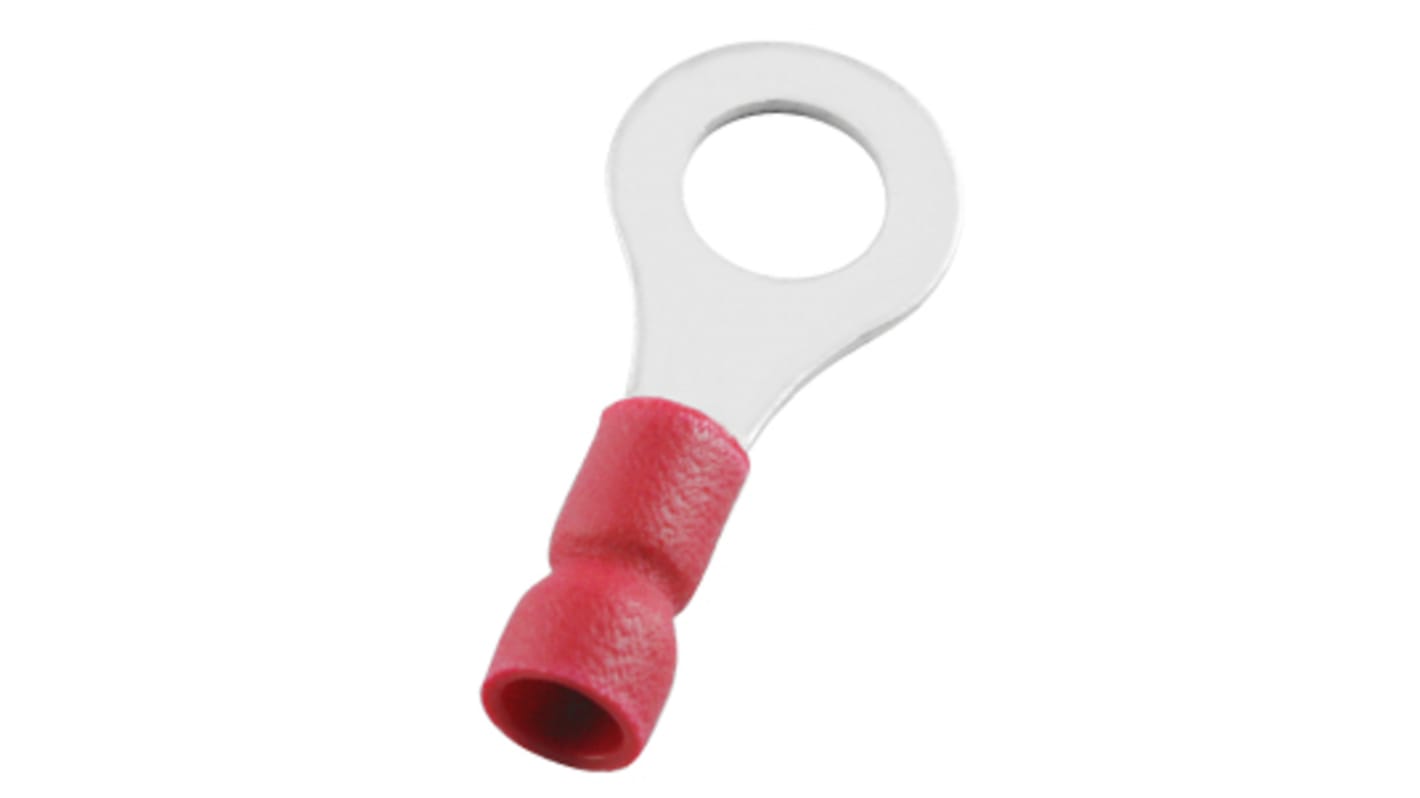

RS PRO, E245391 Insulated Ring Terminal, 6.4 mm Stud Size 22 AWG 16 AWG Wire Size, Red
- RS Stock No.:
- 178-8677
- Brand:
- RS PRO
Bulk discount available
Subtotal (1 bag of 100 units)*
£9.10
(exc. VAT)
£10.90
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 200 unit(s) ready to ship
- Plus 5,700 unit(s) shipping from 29 January 2026
- Plus 5,600 unit(s) shipping from 22 June 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Bag* |
|---|---|---|
| 100 - 900 | £0.091 | £9.10 |
| 1000 - 1900 | £0.083 | £8.30 |
| 2000 - 4900 | £0.076 | £7.60 |
| 5000 - 9900 | £0.07 | £7.00 |
| 10000 + | £0.063 | £6.30 |
*price indicative
- RS Stock No.:
- 178-8677
- Brand:
- RS PRO
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | RS PRO | |
| Product Type | Ring Terminal | |
| Series | E245391 | |
| Insulation | Insulated | |
| Insulation Material | Vinyl | |
| Inner Ring Diameter | 6.4mm | |
| Outer Ring Diameter | 11.6mm | |
| Minimum Wire Size AWG | 22 AWG | |
| Maximum Wire Size AWG | 16 AWG | |
| Overall Length | 28mm | |
| Stud Size | 6.4 mm | |
| Colour | Red | |
| Contact Material | Copper | |
| Contact Plating | Tin | |
| Thickness | 0.75mm | |
| Standards/Approvals | No | |
| Maximum Operating Temperature | 105°C | |
| Minimum Operating Temperature | -40°C | |
| Select all | ||
|---|---|---|
Brand RS PRO | ||
Product Type Ring Terminal | ||
Series E245391 | ||
Insulation Insulated | ||
Insulation Material Vinyl | ||
Inner Ring Diameter 6.4mm | ||
Outer Ring Diameter 11.6mm | ||
Minimum Wire Size AWG 22 AWG | ||
Maximum Wire Size AWG 16 AWG | ||
Overall Length 28mm | ||
Stud Size 6.4 mm | ||
Colour Red | ||
Contact Material Copper | ||
Contact Plating Tin | ||
Thickness 0.75mm | ||
Standards/Approvals No | ||
Maximum Operating Temperature 105°C | ||
Minimum Operating Temperature -40°C | ||
- COO (Country of Origin):
- TW
The RS PRO Insulted ring has a outer ring diameter of 11.6mm and inner ring diameter of 6.4mm which comes with maximum 1.5mm² wire size connection. It is made up of high quality copper for contact material and Vinyl is used for insulation which comes with red in colour.
Stud Size 6.4mm
Colour Red
Contact Material Copper
Thickness 0.75mm
Overall Length 28mm
