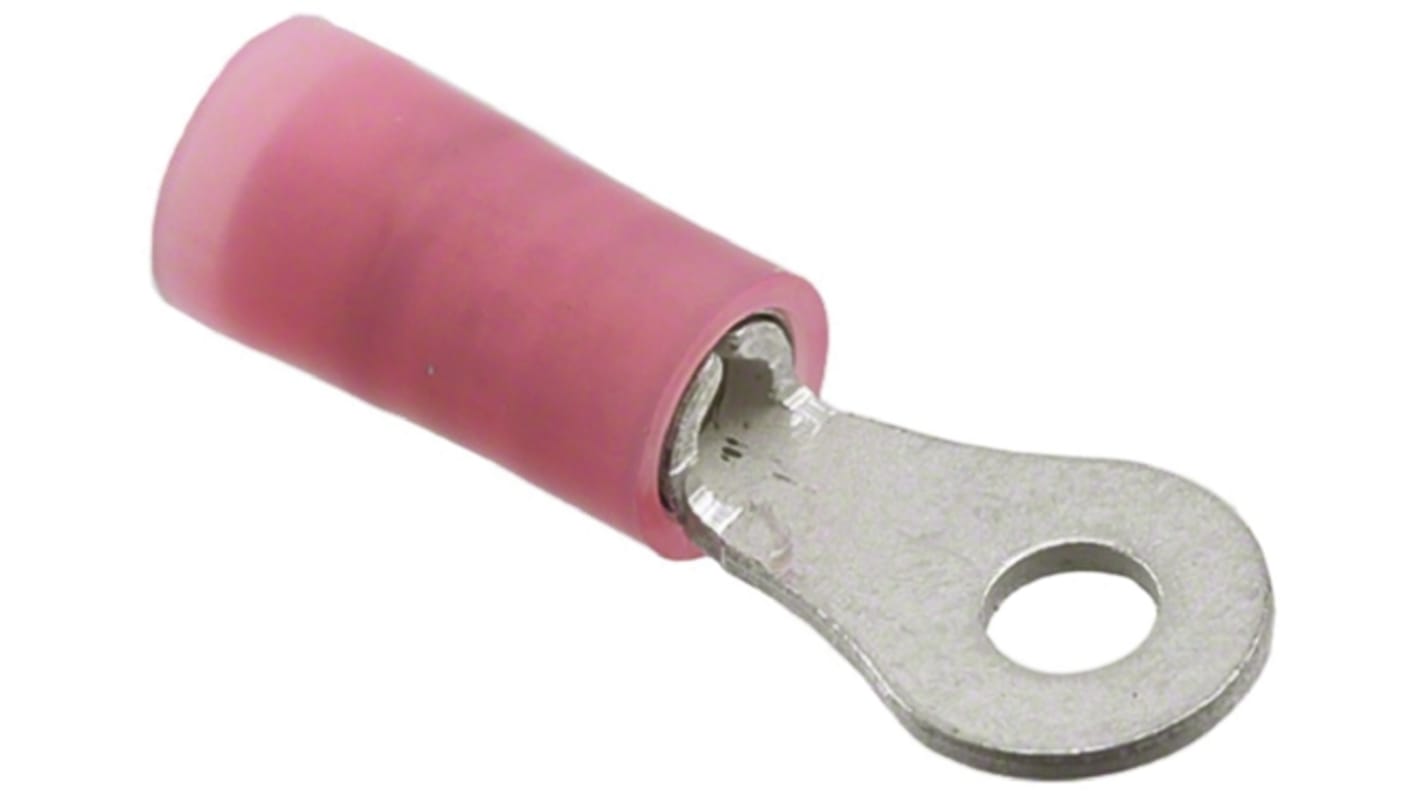

Molex, Avikrimp Insulated Ring Terminal, M2.5 Stud Size 22 AWG 18 AWG Wire Size, Red

View all Ring Terminals

Subtotal (1 bag of 1000 units)*

£251.56

(exc. VAT)

£301.87

(inc. VAT)

Add to Basket
Select or type quantity
Temporarily out of stock
  • Shipping from 25 May 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Bag(s)
Per Bag
Per unit*
1 +£251.56£0.252

*price indicative

RS Stock No.:
167-6415
Mfr. Part No.:
19324-0001
Brand:
Molex
Find similar products by selecting one or more attributes.
Select all

Brand

Molex

Product Type

Ring Terminal

Series

Avikrimp

Insulation

Insulated

Insulation Material

Polyamide

Inner Ring Diameter

2.77mm

Outer Ring Diameter

6.45mm

Minimum Wire Size AWG

22 AWG

Maximum Wire Size AWG

18 AWG

Overall Length

17.3mm

Stud Size

M2.5

Colour

Red

Contact Material

Copper Alloy

Contact Plating

Tin

Thickness

0.71mm

Standards/Approvals

No

Maximum Operating Temperature

105°C

Minimum Operating Temperature

-55°C

COO (Country of Origin):
US

Molex Avikrimp Insulated Crimp Ring Terminals


Avikrimp™ insulated crimp ring terminals with a seamless barrel and halogen free nylon insulation. These Avikrimp™ insulated crimp ring terminals are MADE from copper with tin plating and have a tin plated brass ferrule. The seamless barrel of these Avikrimp™ crimp ring terminals enables easier crimping by allowing the barrel to rotate in the crimping jaws and are also available in different wire and stud sizes.
