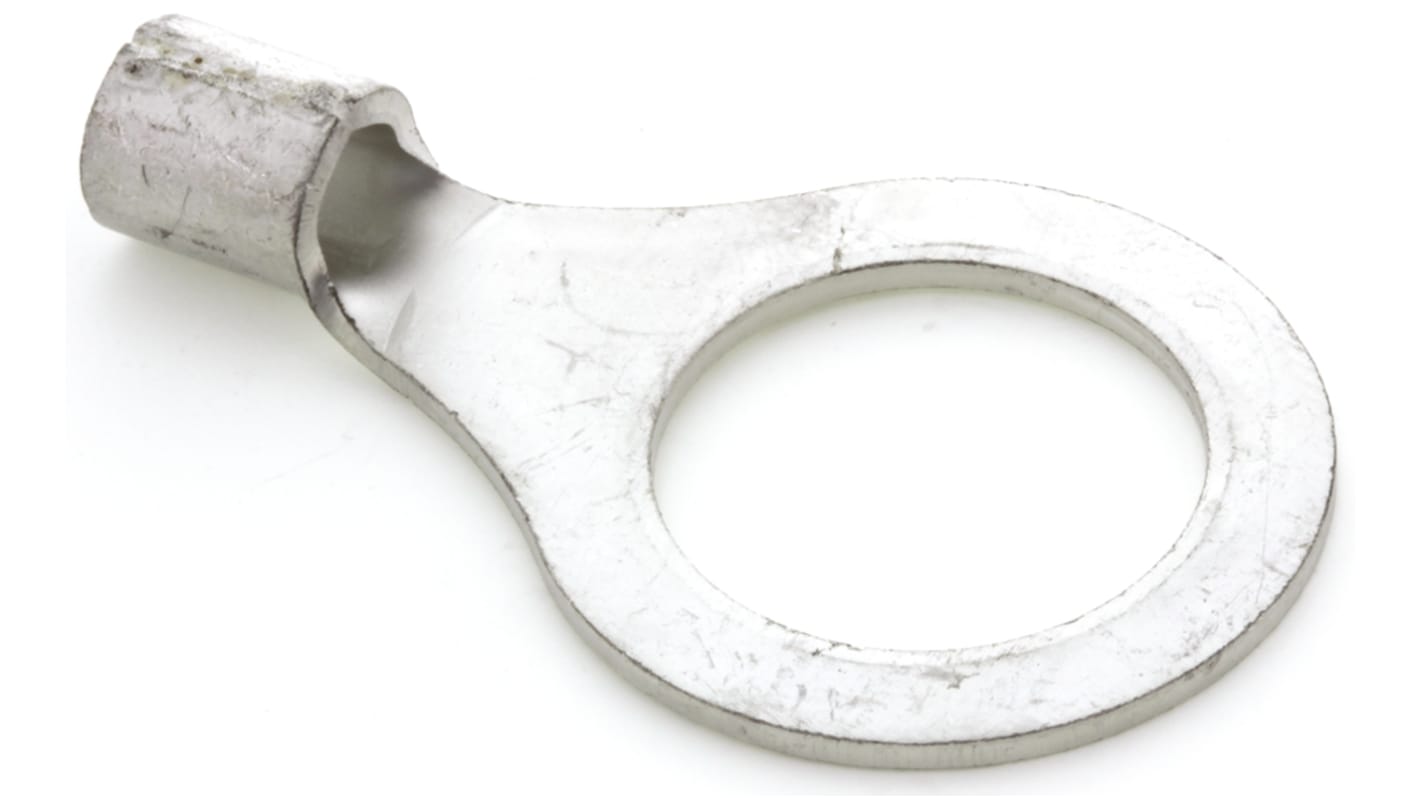

JST, R Uninsulated Ring Terminal, 20mm Stud Size, 10.5mm² to 16.78mm² Wire Size

View all Ring Terminals

Subtotal (1 box of 100 units)*

£103.50

(exc. VAT)

£124.20

(inc. VAT)

Add to Basket
Select or type quantity
Temporarily out of stock
  • 1,200 unit(s) shipping from 29 October 2025
  • Plus 300 unit(s) shipping from 19 November 2025
  • Plus 1,900 unit(s) shipping from 17 December 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
Per Box*
100 +£1.035£103.50

*price indicative

RS Stock No.:
166-7197
Mfr. Part No.:
14-20
Brand:
JST
Find similar products by selecting one or more attributes.
Select all

Brand

JST

Series

R

Insulation

Uninsulated

Inner Ring Diameter

21mm

Outer Ring Diameter

31.6mm

Minimum Wire Size mm²

10.5mm²

Maximum Wire Size mm²

16.78mm²

Minimum Wire Size AWG

6AWG

Maximum Wire Size AWG

6AWG

Stud Size

20mm

Thickness

1.5mm

Overall Length

51.5mm

COO (Country of Origin):
ID

Uninsulated Crimp Ring Terminals, JST


A range of uninsulated crimp ring terminals from JST to suit stud sizes from 3 to 12mm and wire sizes from 0.2 to 10.5mm² (26 to 8 AWG). The terminals have butted seams and are made from tin-plated oxygen-free copper.

Note

JST part numbers Rxxx conform to JIS C2805

Standards

• UL Listed E42024
• CSA Certified LR20812
