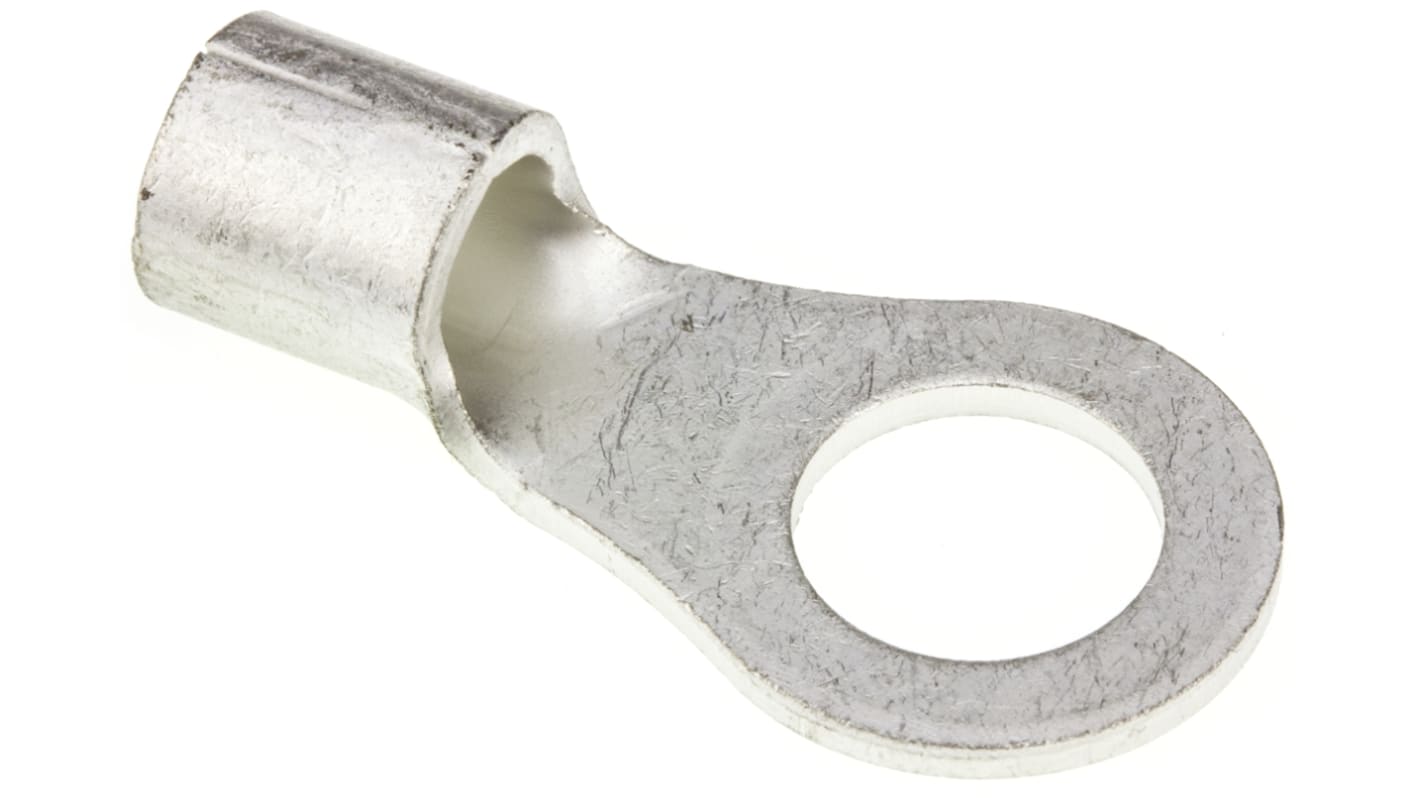

JST, R Uninsulated Ring Terminal, 12mm Stud Size, 16.78mm² to 26.66mm² Wire Size

View all Ring Terminals

Subtotal (1 box of 100 units)*

£79.40

(exc. VAT)

£95.30

(inc. VAT)

Add to Basket
Select or type quantity
In Stock
  • 500 unit(s) ready to ship
  • Plus 999,999,400 unit(s) shipping from 21 May 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
Per Box*
100 +£0.794£79.40

*price indicative

RS Stock No.:
166-7192
Mfr. Part No.:
22-12
Brand:
JST
Find similar products by selecting one or more attributes.
Select all

Brand

JST

Series

R

Insulation

Uninsulated

Outer Ring Diameter

22mm

Inner Ring Diameter

13mm

Minimum Wire Size mm²

16.78mm²

Maximum Wire Size mm²

26.66mm²

Maximum Wire Size AWG

4AWG

Minimum Wire Size AWG

4AWG

Stud Size

12mm

Thickness

1.8mm

Overall Length

42.5mm

COO (Country of Origin):
JP

Uninsulated Crimp Ring Terminals, JST


A range of uninsulated crimp ring terminals from JST to suit stud sizes from 3 to 12mm and wire sizes from 0.2 to 10.5mm² (26 to 8 AWG). The terminals have butted seams and are made from tin-plated oxygen-free copper.

Note

JST part numbers Rxxx conform to JIS C2805

Standards

• UL Listed E42024
• CSA Certified LR20812


JST Terminals
