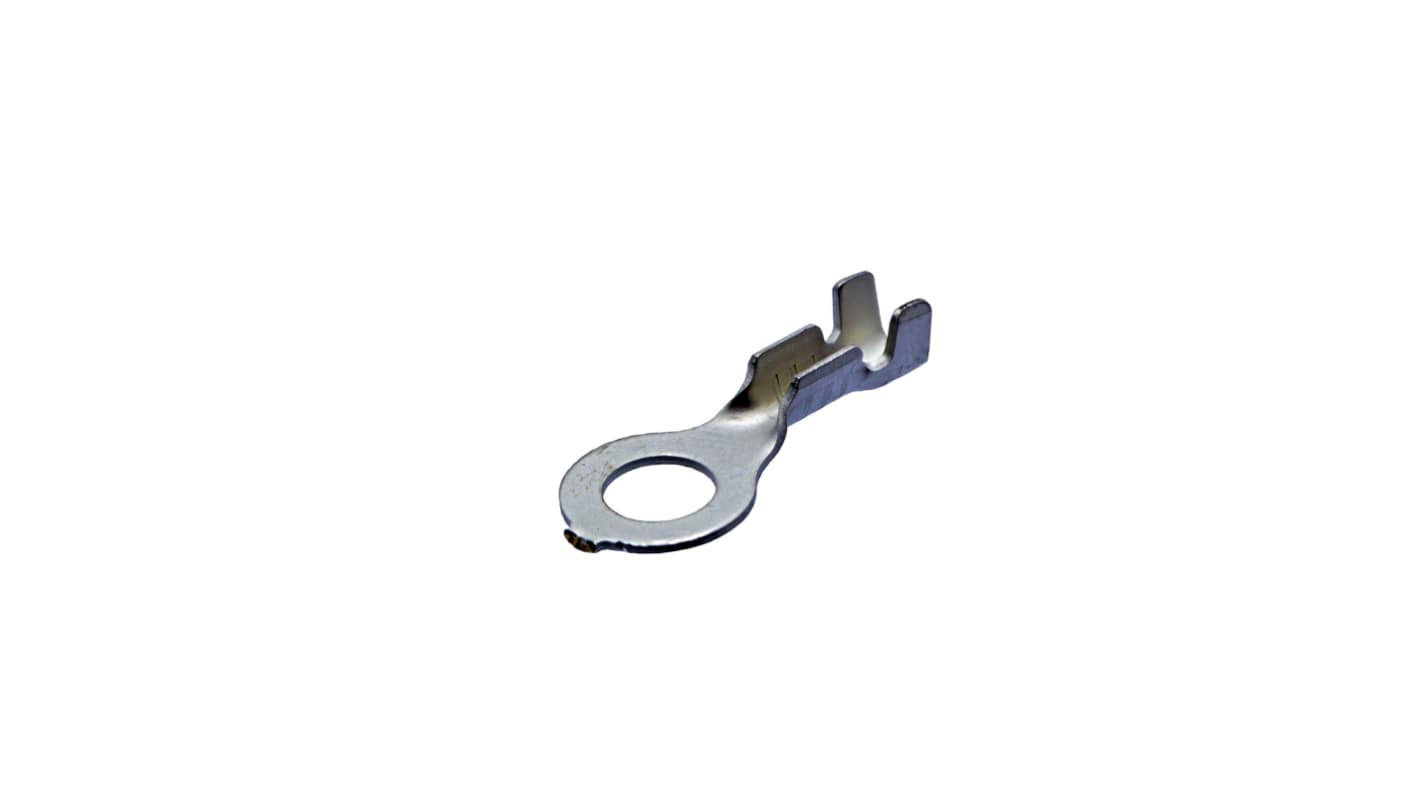

JST, SRB Uninsulated Ring Terminal, M5 Stud Size 20 AWG 18 AWG Wire Size, Grey
- RS Stock No.:
- 163-0410P
- Mfr. Part No.:
- SRB-1.0T-M5
- Brand:
- JST
Bulk discount available
Subtotal 500 units (supplied on a reel)*
£53.00
(exc. VAT)
£63.50
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 2,450 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 500 - 2450 | £0.106 |
| 2500 - 4950 | £0.099 |
| 5000 - 12450 | £0.094 |
| 12500 + | £0.091 |
*price indicative
- RS Stock No.:
- 163-0410P
- Mfr. Part No.:
- SRB-1.0T-M5
- Brand:
- JST
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | JST | |
| Series | SRB | |
| Product Type | Ring Terminal | |
| Insulation | Uninsulated | |
| Inner Ring Diameter | 5.3mm | |
| Outer Ring Diameter | 9.5mm | |
| Maximum Wire Size AWG | 18 AWG | |
| Minimum Wire Size AWG | 20 AWG | |
| Overall Length | 21.75mm | |
| Stud Size | M5 | |
| Colour | Grey | |
| Contact Plating | Tin | |
| Contact Material | Brass | |
| Thickness | 0.6mm | |
| Standards/Approvals | ANSI/ESD S20.20:2021 Electrostatic Control Standard, RoHS | |
| Maximum Wire Size mm² | 1mm² | |
| Minimum Wire Size mm² | 0.5mm² | |
| Select all | ||
|---|---|---|
Brand JST | ||
Series SRB | ||
Product Type Ring Terminal | ||
Insulation Uninsulated | ||
Inner Ring Diameter 5.3mm | ||
Outer Ring Diameter 9.5mm | ||
Maximum Wire Size AWG 18 AWG | ||
Minimum Wire Size AWG 20 AWG | ||
Overall Length 21.75mm | ||
Stud Size M5 | ||
Colour Grey | ||
Contact Plating Tin | ||
Contact Material Brass | ||
Thickness 0.6mm | ||
Standards/Approvals ANSI/ESD S20.20:2021 Electrostatic Control Standard, RoHS | ||
Maximum Wire Size mm² 1mm² | ||
Minimum Wire Size mm² 0.5mm² | ||
DIN type Chain Terminal SRB series (with insulation grip).
