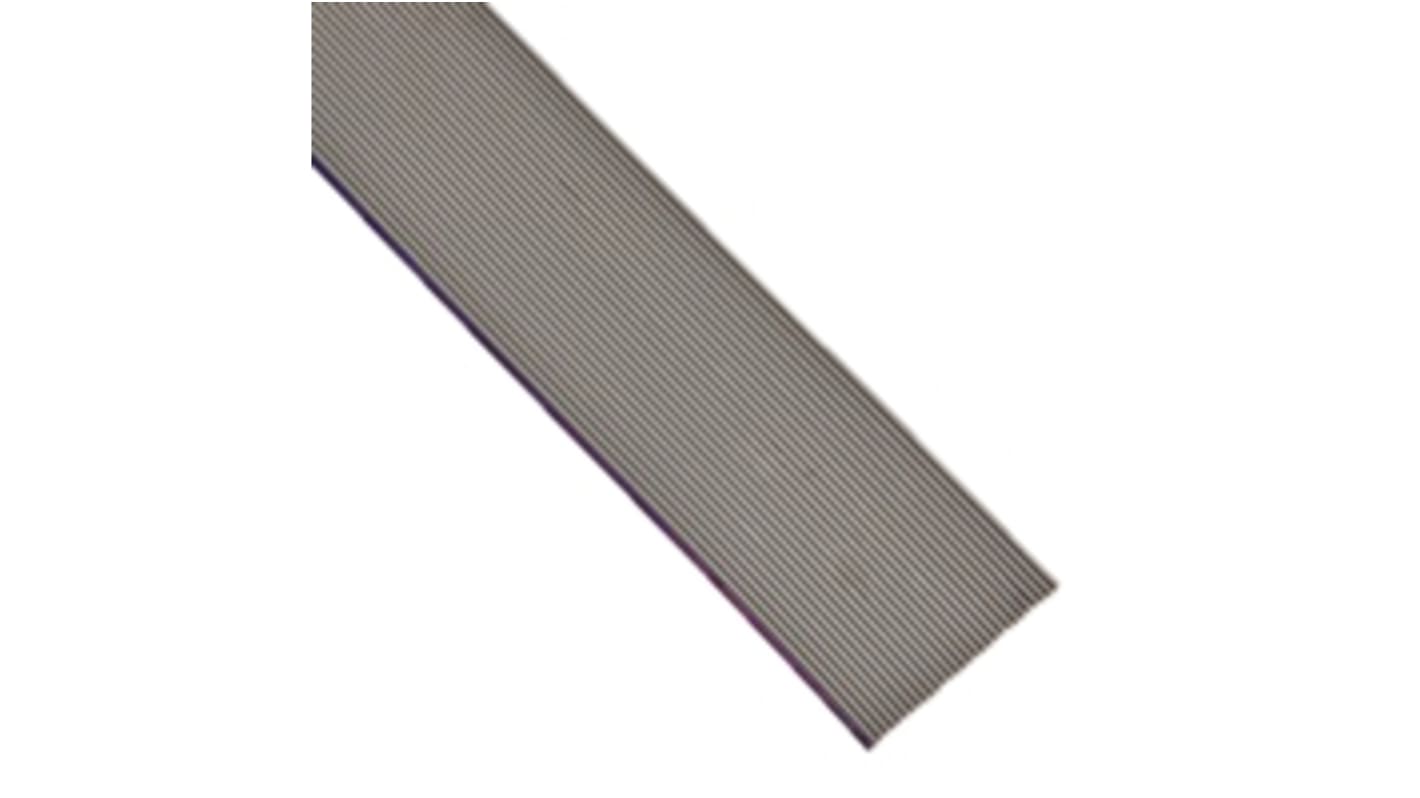

3M HF625 Series Flat Cable, Stranded, 1 mm Pitch, 14, 30.48 m Length
- RS Stock No.:
- 828-9807
- Mfr. Part No.:
- HF625/14 100FT
- Brand:
- 3M
Subtotal (1 reel of 30 metres)*
£143.74
(exc. VAT)
£172.49
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- 15 unit(s) ready to ship
- Plus 8 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Reel(s) | Per Reel | Per Metre* |
|---|---|---|
| 1 + | £143.74 | £4.791 |
*price indicative
- RS Stock No.:
- 828-9807
- Mfr. Part No.:
- HF625/14 100FT
- Brand:
- 3M
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | 3M | |
| Product Type | Flat Cable | |
| Cable Type | Stranded | |
| Pitch | 1mm | |
| Voltage | 300V | |
| Screened/Unscreened | Unscreened | |
| Number of Conductors | 14 | |
| American Wire Gauge | 28AWG | |
| Conductor Type | Round | |
| Series | HF625 | |
| Jacket Material | Polyolefin | |
| Cable Length | 30.48m | |
| Standards/Approvals | IEC 61249 2 21, IEC 61034 2:2005, UL Style 21682, NF X 70 100 2:2006, UL E42769 | |
| Hi-Flex | Yes | |
| Jacket Colour | Dark Grey | |
| Minimum Operating Temperature | -40°C | |
| Size of Strands | 36AWG | |
| Fire Behaviour | Low Smoke Zero Halogen (LSZH) | |
| Conductor Material | Tin Plated Copper | |
| Number of Strands | 7 | |
| Maximum Operating Temperature | 105°C | |
| Core Strands | 7 x 36AWG | |
| Select all | ||
|---|---|---|
Brand 3M | ||
Product Type Flat Cable | ||
Cable Type Stranded | ||
Pitch 1mm | ||
Voltage 300V | ||
Screened/Unscreened Unscreened | ||
Number of Conductors 14 | ||
American Wire Gauge 28AWG | ||
Conductor Type Round | ||
Series HF625 | ||
Jacket Material Polyolefin | ||
Cable Length 30.48m | ||
Standards/Approvals IEC 61249 2 21, IEC 61034 2:2005, UL Style 21682, NF X 70 100 2:2006, UL E42769 | ||
Hi-Flex Yes | ||
Jacket Colour Dark Grey | ||
Minimum Operating Temperature -40°C | ||
Size of Strands 36AWG | ||
Fire Behaviour Low Smoke Zero Halogen (LSZH) | ||
Conductor Material Tin Plated Copper | ||
Number of Strands 7 | ||
Maximum Operating Temperature 105°C | ||
Core Strands 7 x 36AWG | ||
3M HF625 Series Flat Cable, 30.48m Length, 14 Conductors - HF625/14 100FT
This flat cable is a flexible, multi‑conductor ribbon designed for use in industrial and electronic assemblies where compact, reliable signal or low‑voltage power distribution is needed. It combines fine‑gauge conductors with a flexible thermoplastic outer layer to suit dynamic routing and confined installation spaces, while remaining appropriate for environments requiring reduced halogen emissions and controlled fire behaviour.
Features and Benefits:
• Fourteen conductors enabling Compact multi‑signal routing
• 28 AWG stranded conductors for improved Flex performance
• Tin‑plated copper round cores providing corrosion resistance
• Polyolefin jacket offering mechanical protection and Flexibility
• Low smoke zero halogen composition reducing toxic gases
• Rated for continuous operation up to 105°C and 300 V
• 28 AWG stranded conductors for improved Flex performance
• Tin‑plated copper round cores providing corrosion resistance
• Polyolefin jacket offering mechanical protection and Flexibility
• Low smoke zero halogen composition reducing toxic gases
• Rated for continuous operation up to 105°C and 300 V
Applications
• Suitable for cable harnesses in automated machinery
• Ideal for internal wiring of control cabinets and panels
• Used for interconnects in electronic assemblies and test rigs
• Can be used for moving assemblies requiring repeated flexing
• Used for signal distribution in instrumentation and sensors
• Ideal for internal wiring of control cabinets and panels
• Used for interconnects in electronic assemblies and test rigs
• Can be used for moving assemblies requiring repeated flexing
• Used for signal distribution in instrumentation and sensors
How is flexibility achieved in the conductor construction?
Flexibility results from using stranded round conductors composed of seven strands per core, which lowers stiffness compared with solid conductors.
What environmental characteristic helps in populated indoor installations?
The sheath formulation emits very low smoke and contains no added halogens, reducing corrosive and toxic by‑products in a fire event.
Which standard covers flammability and material properties for this cable?
The cable conforms to recognised international material and flame‑behaviour standards applicable to low‑smoke, halogen‑free wiring used in industrial contexts.
How long is a single length and how does that affect installation?
A continuous length of 30.48 m permits extended runs without splicing, simplifying routing in larger systems.
Is the cable screened or unscreened and what does that imply?
It is supplied unscreened, which is suitable where external electromagnetic shielding is not required or where shielding is applied at a system level.
Standards
IEC 61034-2:2005, NF X 70-100-2:2006, RoHS,UL E42769, Style No.: 21682, UL: Horizontal
