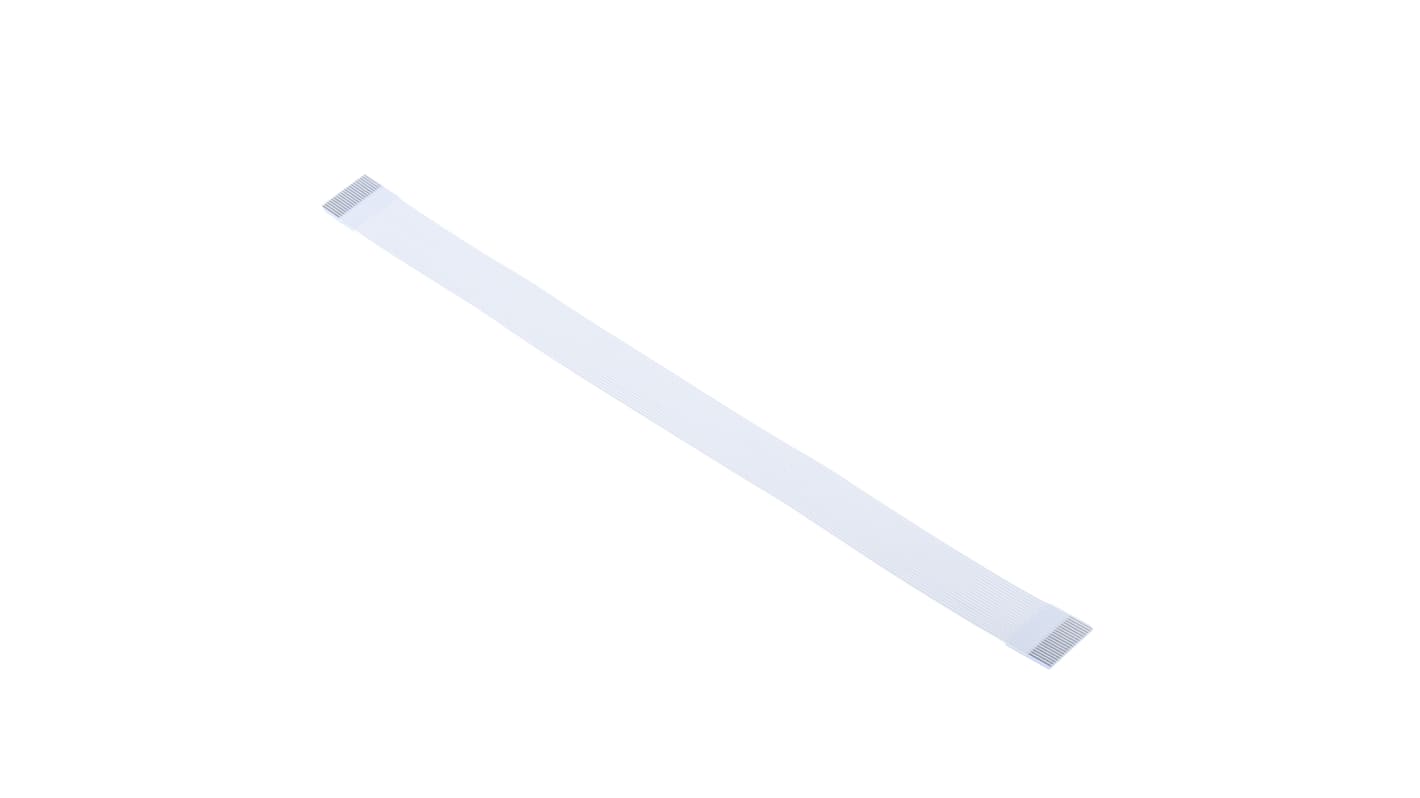

Molex Premo-Flex Series FFC Ribbon Cable, 20-Way, 0.5mm Pitch, 152mm Length

View all Ribbon Cable
Bulk discount available

Subtotal (1 pack of 5 units)*

£15.90

(exc. VAT)

£19.10

(inc. VAT)

Add to Basket
Select or type quantity
In Stock
  • 130 unit(s) ready to ship
  • Plus 15 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
Per Pack*
5 - 20£3.18£15.90
25 - 45£2.802£14.01
50 - 95£2.69£13.45
100 - 495£2.238£11.19
500 +£2.146£10.73

*price indicative

RS Stock No.:
459-1976
Mfr. Part No.:
98266-0215
Brand:
Molex
Find similar products by selecting one or more attributes.
Select all

Brand

Molex

Ribbon Cable Type

FFC

Pitch

0.5mm

Terminated/Unterminated

Unterminated

Number of Ways

20

Series

Premo-Flex

Length

152mm

Hi-Flex

Yes

Minimum Operating Temperature

-40°C

Voltage Rating

60 V (Volts)

Maximum Operating Temperature

+105°C

Current Rating

500 mA

High Density

Yes

Operating Temperature Range

-40 → +105 °C

Molex 0.50 mm Premo-Flex Flat Flex FFC Jumper Cables - 98266 Series


0.50 mm Premo-Flex Flat Flex jumper cables for terminating to ZIF (Zero Insertion Force), non-ZIF or LIF (Low Insertion Force) FPC connectors to create durable and flexible board to board connections. The cables have a 0.2mm cable thickness and are designed with contacts on the same side of the cable each end (Type A) or on the opposite side at each end (Type D) to mirror the contact layout in top and bottom mount ZIF applications. These Premo-Flex FPC jumper cables are easy to assemble in hard to reach applications. A flexible design enables them to be folded and bent in applications where there are space restrictions. The termination thicknesses of the cables meet industry standard ZIF connector standards and the temperature rating of up to 105°C meets industry standard requirements. These Premo-Flex Flat Flex jumper cables are available with a wide range of circuits sizes offering design flexibility

Features and Benefits


• Durable and reliable board to board connections
• Opposite (Type D) or same-side (Type A) contact-area configurations
• Easy to assemble in hard to reach applications
• Flexible design enables folding and bending in confined spaces
• Industry standard temperature rating of up to 105°C
• Termination thicknesses meet industry standard ZIF connector standards
• Wide range of circuits for design flexibility

Product Application Information


These Premo-Flex Flat Flex FFC jumper jumpers provide board to board interconnections in a wide range of applications in the automotive, consumer, computer, industrial, medical, military and home appliance industries. Applications include automotive audio equipment and displays, camcorders, plasma displays, Notebooks, scanners, printers, keyboards, medical equipment and control panels.


0.5mm FFC - Molex
