3M 3517 Series Flat Ribbon Cable, 20-Way, 1.27mm Pitch, 5m Length

Subtotal (1 reel of 5 metres)*

£98.33

(exc. VAT)

£118.00

(inc. VAT)

Add to Basket
Select or type quantity
Temporarily out of stock
  • 12 unit(s) shipping from 10 October 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Reel(s)
Per Reel
Per Metre*
1 +£98.33£19.666

*price indicative

Alternative

This product is not currently available. Here is our alternative recommendation.

1 Reel of 30 Metre(s)

£255.28

(exc. VAT)

£306.34

(inc. VAT)

RS Stock No.:
216-7177
Mfr. Part No.:
3517/20
Brand:
3M
Find similar products by selecting one or more attributes.
Select all

Brand

3M

Ribbon Cable Type

Flat

Pitch

1.27mm

Terminated/Unterminated

Unterminated

Number of Ways

20

Screened/Unscreened

Screened

American Wire Gauge

28 AWG

Series

3517

Length

5m

Width

28.7 mm

Minimum Operating Temperature

-20°C

Number of Strands

7

Conductor Strand Type

Stranded

Voltage Rating

300 V

Maximum Operating Temperature

+80°C

Sheath Colour

Black

Characteristic Impedance

119 Ω

Shielded/Unshielded

Shielded

Operating Temperature Range

-20 → +80 °C

Size of Strands

0.127 mm

Jacketed

Yes

Capacitance

70.52pF/m

Core Strands

7/0.127 mm

Standards Met

UL Listed

COO (Country of Origin):
US

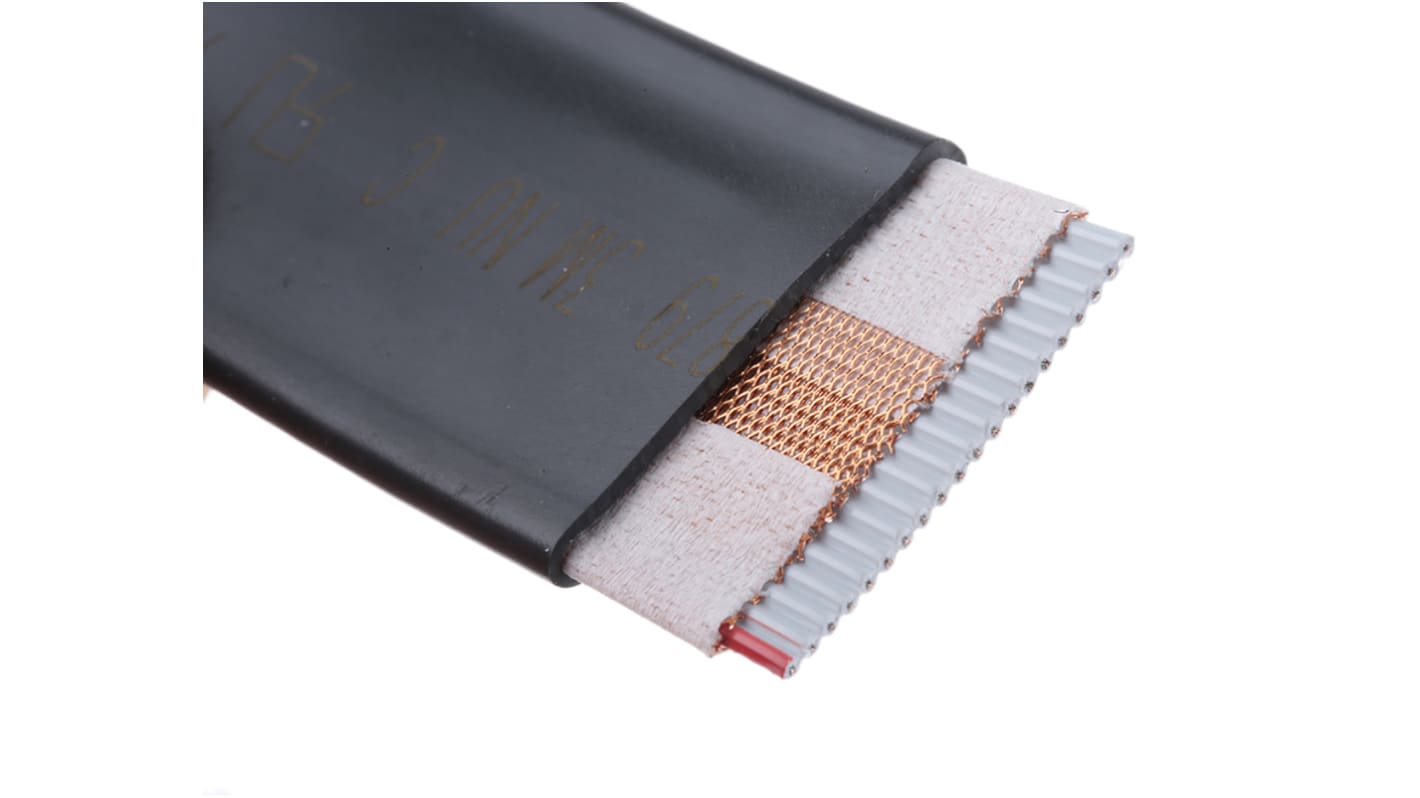

3M Screened & Jacketed 1.27mm Pitch Ribbon Cable - Type 3517


From 3M, this screened & jacketed ribbon cablehas parallel stranded tinned copper wire conductors. It is wrapped in shielding and protected with an outer black PVC jacket.

Features and Benefits


• 360° copper shielding
• Primary cable is zippable for branching or discrete terminations

Applications


Ribbon cabling is frequently used in computing and in communication applications. They are often used internally in electronic appliances, and are often used in hard drive wiring. Although they are limited to straight-run installations, they have advantages in that they can provide space efficient solutions to high data transmission. Ribbon cabling is often used in;

• Test and Measure
• Computing
• Robotics

Why Choose 3M?


3M is a trusted name in connector and wiring solutions, providing high quality cables, connectors and accessories. From industrial computing to domestic applications, 3M provides the reliable and versatile product range you need.

Warning

These cables are not to be regarded as power cables or cables for the direct connection of equipment to mains power supplies.

Approvals

UL Listed

Standards

UL style 2912

3M Ribbon Cable, Screened Type, 28AWG Stranded Wire - 3517 Series - 3517/20


Tie up your data connections with this ribbon cable from 3M. As it's flat and flexible, routing it through narrow or awkward spaces is a cinch. It has 20 ways, enabling you to create multiple connections with just one cable. Both ends are left unterminated, giving you the flexibility to attach an IDC connector that best suits your job. A layer of expanded, conductive copper shields it from noise and interference.

• Wide operating temperature range between -20°C and +80°C to handle harsh conditions
• Tinned and stranded copper conductors keep it flexible and reliable
• PVC jacket is resistant to chemicals and corrosion

Applications


• Audio-visual equipment
• Computer peripherals
• Instrumentation devices
• Industrial automation

How long is this ribbon cable?


This ribbon cable comes in a length of 5 metres, giving you the freedom to route wires over long distances. Alternatively, cut it to size and make multiple short connections.

Approvals

UL VW-1 UL 2912


Screened and Jacketed Ribbon Cable


Ribbon cables provide a simple, quick and cost-effective solution to mass termination. They also have space and weight saving advantages over other wiring methods and are ideal for use on computers, peripherals, and interface units, audio and digital equipment.
