3M 3659 Series Round Ribbon Cable, 20-Way, 1.27mm Pitch, 30m Length

View all Ribbon Cable

Subtotal (1 reel of 30 metres)*

£255.28

(exc. VAT)

£306.34

(inc. VAT)

Add to Basket
Select or type quantity
In Stock
  • 16 unit(s) ready to ship
  • Plus 60 unit(s) shipping from 09 October 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Reel(s)
Per Reel
Per Metre*
1 +£255.28£8.509

*price indicative

Alternative

This product is not currently available. Here is our alternative recommendation.

presentation
Harting Round Ribbon Cable, 20-Way, 1.27mm Pitch, 30m Length
RS Stock No.
693-7762

1 Reel of 30 Metre(s)

£283.86

(exc. VAT)

£340.63

(inc. VAT)

RS Stock No.:
120-9113
Distrelec Article No.:
155-63-743
Mfr. Part No.:
3659-20
Brand:
3M
Find similar products by selecting one or more attributes.
Select all

Brand

3M

Ribbon Cable Type

Round

Pitch

1.27mm

Terminated/Unterminated

Unterminated

Number of Ways

20

Screened/Unscreened

Screened

American Wire Gauge

28 AWG

Series

3659

Length

30m

Width

24.1 mm

Conductor Strand Type

Stranded

Minimum Operating Temperature

-20°C

Maximum Operating Temperature

+80°C

Number of Strands

7

Voltage Rating

300 V

Sheath Colour

Black

Jacketed

Yes

Shielded/Unshielded

Shielded

Operating Temperature Range

-20 → +80 °C

Characteristic Impedance

106 Ω

Size of Strands

36 AWG

Capacitance

90.88pF/m

Standards Met

RoHS

Core Strands

7/36

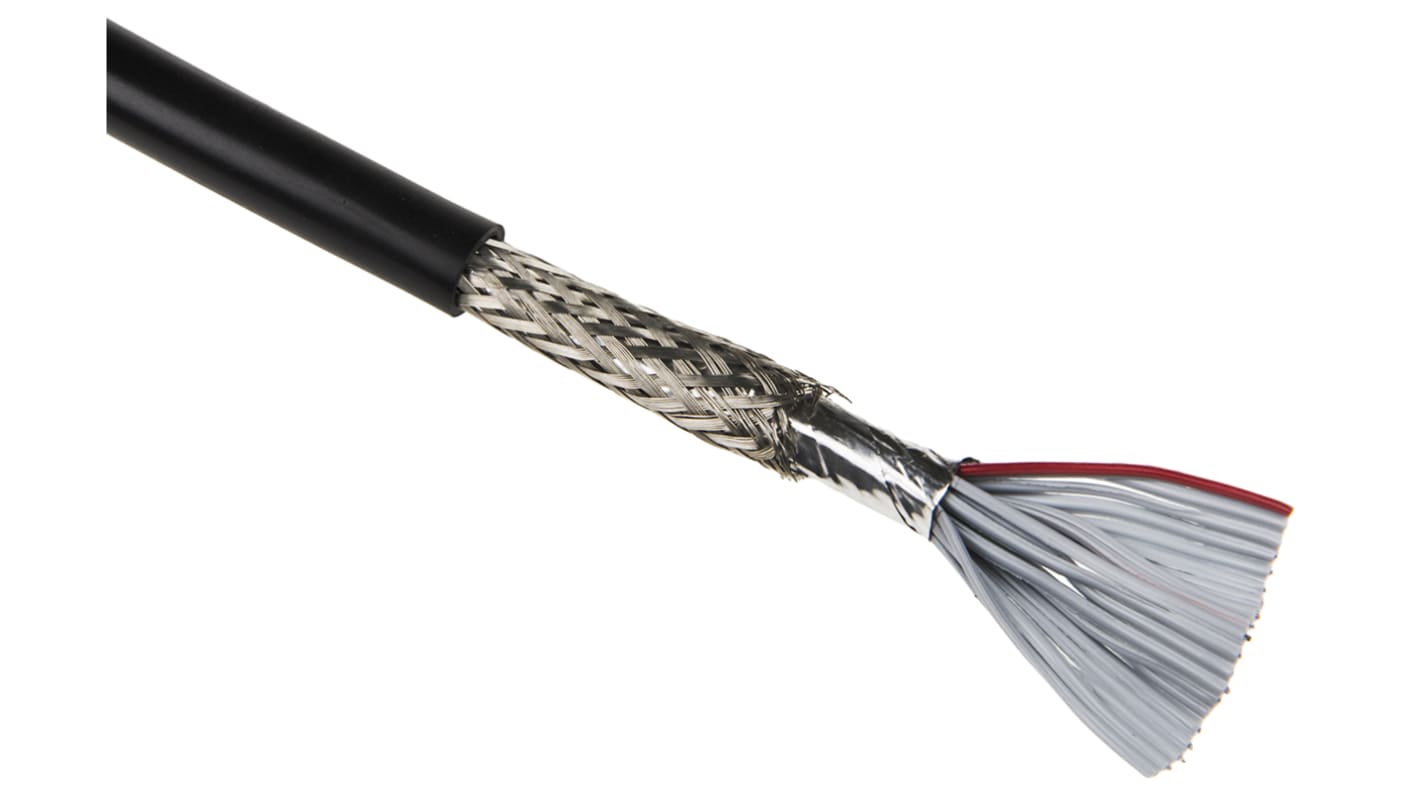

3M Screened Round 1·27mm Pitch Ribbon Cable - Type 3659


From 3M, this 3659 screened ribbon cable is a flexible and robust solution to cabling in electronic devices and appliances.

Featured and Benefits


• Stranded tinned copper conductors with black
• PVC insulation
• Double screened with aluminised polyester tape & tinned copper braid
• Continuous split/bond repeat allows for mass termination
• UL AWM style 20267

Applications


Ribbon cabling is frequently used in computing and in communication applications. They are often used internally in electronic appliances, and are often used in hard drive wiring. round ribbon cables are more flexible than flat ribbon, and provide space efficient solutions to high data transmission. Screened ribbon cabling provides protection against EMI and so is ideal for sensitive equipment in areas where electromagnetic interference is a possibility. Ribbon cabling is often used in;

• Test and Measure
• Computing
• Robotics

Why Choose 3M?


3M is a trusted name in connector and wiring solutions, providing high quality cables, connectors and accessories. From industrial computing to domestic applications, 3M provides the reliable and versatile product range you need.

Warning

These cables are not to be regarded as power cables or cables for the direct connection of equipment to mains power supplies.

Approvals

UL Listed

3M Ribbon Cable, 28AWG, Screened - 3659 Series - 3659-20


For reliable signal transmission between your computer and peripheral devices, choose this round ribbon cable from 3M. It's unterminated at both ends, giving you the freedom to link it with an IDC connector that matches your system specifications. The primary cable can be zipped for use in discrete or branch terminations. Its tough PVC jacket keeps it safe from wear and impact, so you can rest assured it handles whatever harsh industrial environments can throw at it.

Features & Benefits


• Thick aluminium/polyester film foil shielding prevents EMI for noiseless signal transmission
• Wide operating temperature range between -20°C to +80°C for use in demanding conditions
• Low capacitance of 90.88pF/m for high-integrity signals

Applications


• Desktop and laptop computers
• Communications networks
• Music studios

How long is this ribbon cable?


The cable's 30m long and is easy to cut down, so there's lots of it to go around for numerous jobs.

Approvals

UL E 42769/20267CL2
