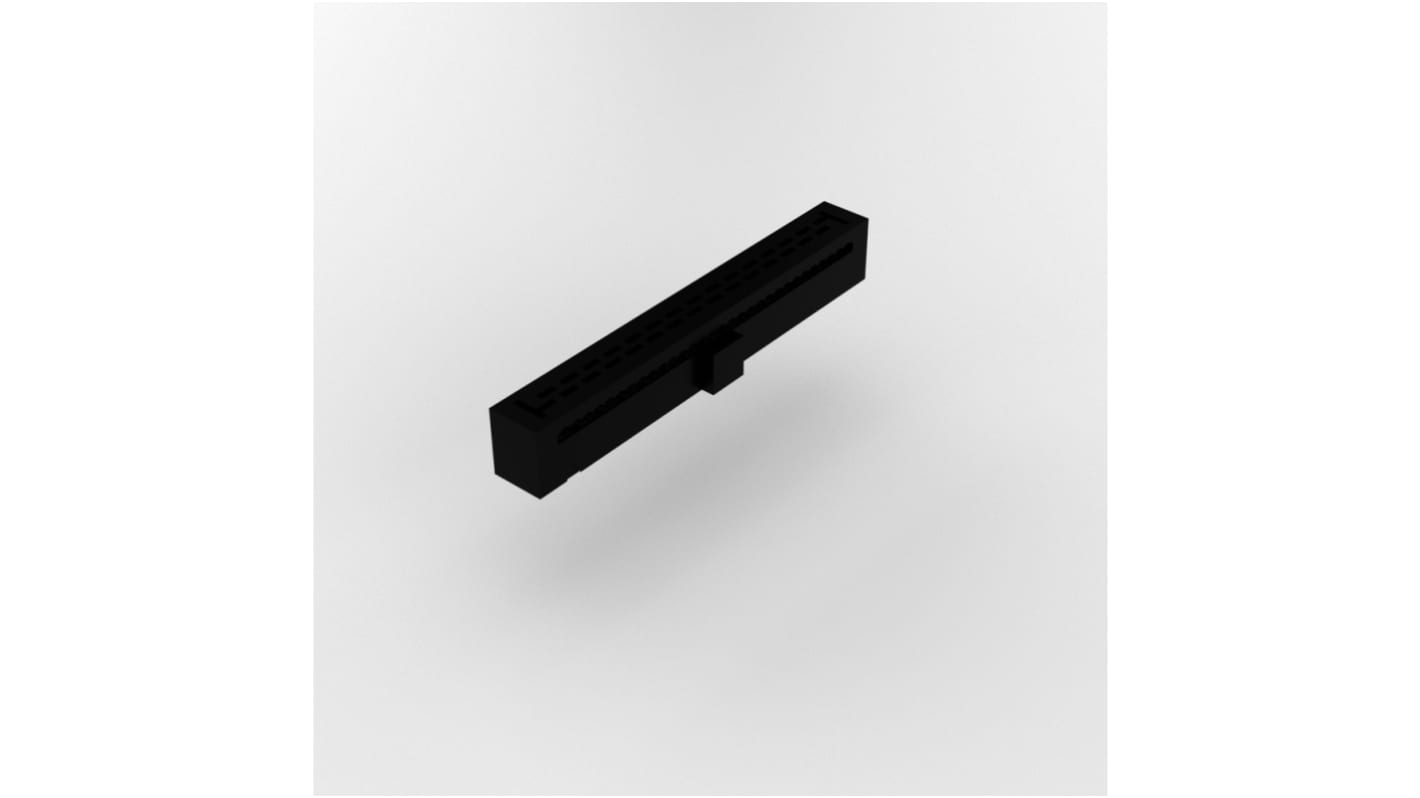

Samtec TCSD Series Flat IDC Socket, 3.175mm Length, Tiger Eye IDC to Tiger Eye IDC
- RS Stock No.:
- 198-2642
- Mfr. Part No.:
- TCSD-15-01-F-N
- Brand:
- Samtec
Bulk discount available
Subtotal (1 tube of 17 units)*
£92.548
(exc. VAT)
£111.061
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 31 October 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Tube* |
---|---|---|
17 - 17 | £5.444 | £92.55 |
34 - 68 | £4.573 | £77.74 |
85 - 153 | £4.235 | £72.00 |
170 - 323 | £3.736 | £63.51 |
340 + | £3.64 | £61.88 |
*price indicative
- RS Stock No.:
- 198-2642
- Mfr. Part No.:
- TCSD-15-01-F-N
- Brand:
- Samtec
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Samtec | |
Ribbon Cable Type | Flat | |
Connector 1 | Tiger Eye IDC | |
Connector 2 | Tiger Eye IDC | |
Connector 1 Gender | Female | |
Terminated/Unterminated | Terminated | |
Connector 2 Gender | Female | |
American Wire Gauge | 28 AWG | |
Series | TCSD | |
Length | 3.175mm | |
Current Rating | 2.8 A | |
Operating Temperature Range | -40 → +105 °C | |
Standards Met | RoHS Compliant | |
Select all | ||
---|---|---|
Brand Samtec | ||
Ribbon Cable Type Flat | ||
Connector 1 Tiger Eye IDC | ||
Connector 2 Tiger Eye IDC | ||
Connector 1 Gender Female | ||
Terminated/Unterminated Terminated | ||
Connector 2 Gender Female | ||
American Wire Gauge 28 AWG | ||
Series TCSD | ||
Length 3.175mm | ||
Current Rating 2.8 A | ||
Operating Temperature Range -40 → +105 °C | ||
Standards Met RoHS Compliant | ||
Samtec TCSD series cable is a 2in Tiger Eye IDC ribbon socket cable.
Black glass filled polyester for insulation
Contact points are made up of Beryllium copper
Current rating of 2.8A per pin
Operating Temperature ranges from -40°C to +105°C
Contact points are made up of Beryllium copper
Current rating of 2.8A per pin
Operating Temperature ranges from -40°C to +105°C
