Samtec TCSD Series Flat IDC Socket Cable Assembly, 3.175mm Length, Tiger Eye IDC to Tiger Eye IDC
- RS Stock No.:
- 198-2635
- Mfr. Part No.:
- TCSD-05-D-06.00-01-F-N
- Brand:
- Samtec
Save 42% when you buy 100 units
Subtotal (1 unit)*
£7.46
(exc. VAT)
£8.95
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 4 unit(s) ready to ship
- Plus 999,999,995 unit(s) shipping from 30 October 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 - 9 | £7.46 |
10 - 24 | £6.21 |
25 - 49 | £5.34 |
50 - 99 | £4.67 |
100 + | £4.28 |
*price indicative
- RS Stock No.:
- 198-2635
- Mfr. Part No.:
- TCSD-05-D-06.00-01-F-N
- Brand:
- Samtec
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Samtec | |
Ribbon Cable Type | Flat | |
Connector 1 | Tiger Eye IDC | |
Connector 2 | Tiger Eye IDC | |
Connector 1 Gender | Female | |
Terminated/Unterminated | Terminated | |
Connector 2 Gender | Female | |
American Wire Gauge | 28 AWG | |
Series | TCSD | |
Length | 3.175mm | |
Standards Met | RoHS Compliant | |
Current Rating | 2.8 A | |
Operating Temperature Range | -40 → +105 °C | |
Select all | ||
---|---|---|
Brand Samtec | ||
Ribbon Cable Type Flat | ||
Connector 1 Tiger Eye IDC | ||
Connector 2 Tiger Eye IDC | ||
Connector 1 Gender Female | ||
Terminated/Unterminated Terminated | ||
Connector 2 Gender Female | ||
American Wire Gauge 28 AWG | ||
Series TCSD | ||
Length 3.175mm | ||
Standards Met RoHS Compliant | ||
Current Rating 2.8 A | ||
Operating Temperature Range -40 → +105 °C | ||

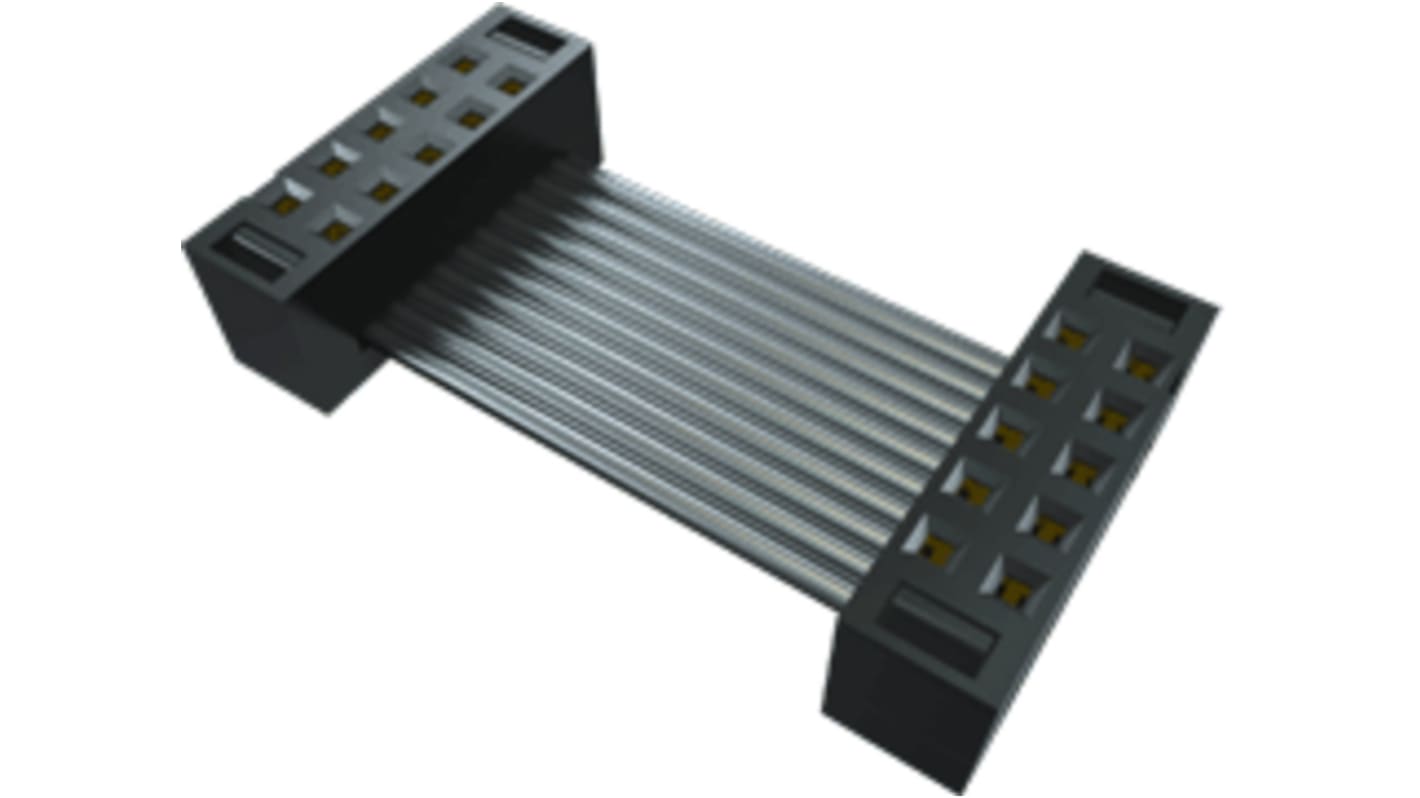

Samtec TCSD series cable is a 6in Tiger Eye IDC ribbon socket cable.
Black glass filled polyester for insulation
Contact points are made up of Beryllium copper
Current rating of 2.8A per pin
Operating Temperature ranges from -40°C to +105°C
Contact points are made up of Beryllium copper
Current rating of 2.8A per pin
Operating Temperature ranges from -40°C to +105°C
