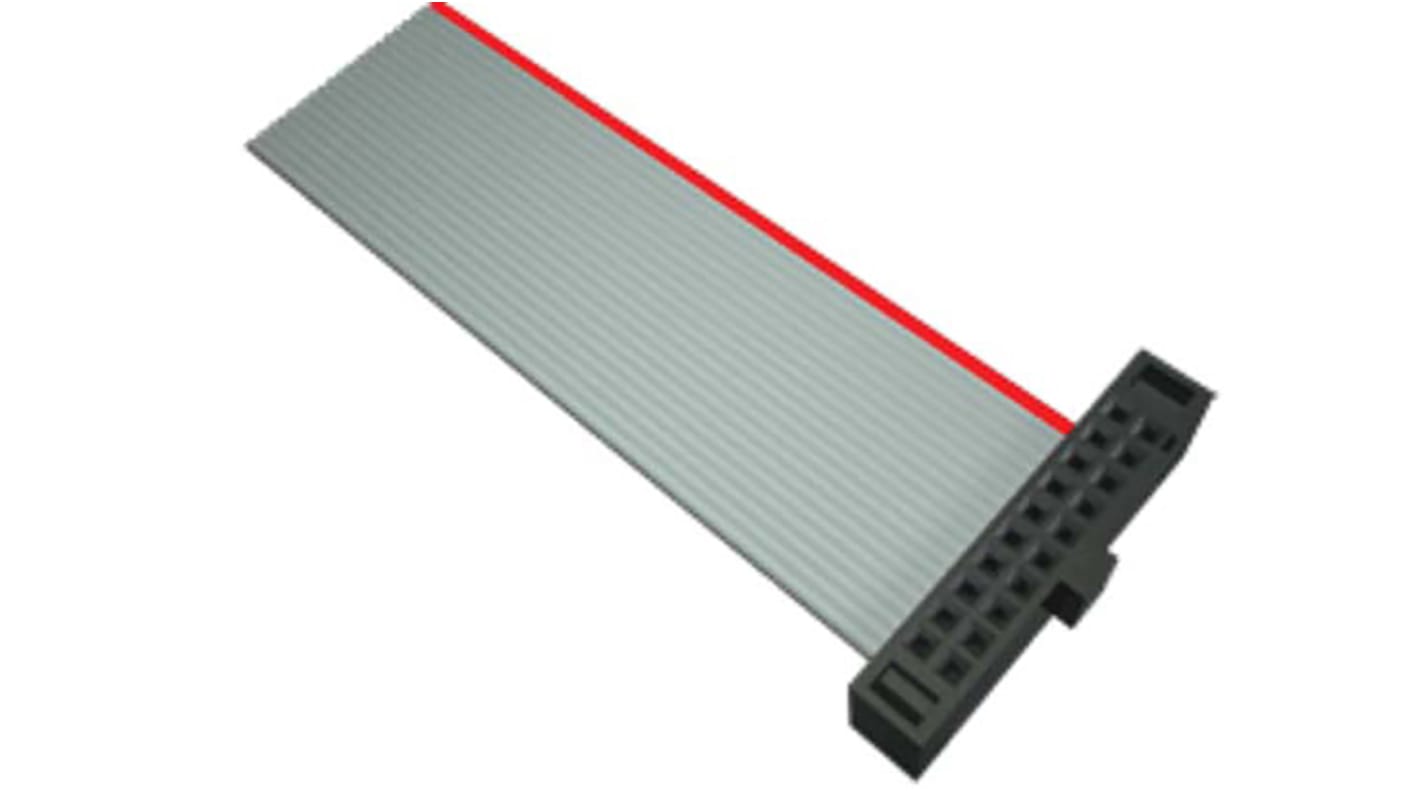

Samtec FFSD Series Ribbon Cable, Flat IDC Wire, 1.27 mm Pitch, 14, 254 mm Length
- RS Stock No.:
- 197-6636
- Mfr. Part No.:
- FFSD-07-D-10.00-01-N
- Brand:
- Samtec
Bulk discount available
Subtotal (1 unit)*
£15.18
(exc. VAT)
£18.22
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- Plus 2 unit(s) shipping from 28 April 2026
- Plus 26 unit(s) shipping from 05 May 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 - 4 | £15.18 |
| 5 - 24 | £14.50 |
| 25 - 49 | £14.08 |
| 50 + | £13.70 |
*price indicative
- RS Stock No.:
- 197-6636
- Mfr. Part No.:
- FFSD-07-D-10.00-01-N
- Brand:
- Samtec
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Samtec | |
| Cable Type | Flat IDC Wire | |
| Product Type | Ribbon Cable | |
| Pitch | 1.27mm | |
| American Wire Gauge | 30AWG | |
| Number of Conductors | 14 | |
| Series | FFSD | |
| Jacket Material | Polybutylene Terephthalate | |
| Cable Length | 254mm | |
| Standards/Approvals | RoHS | |
| Jacket Colour | Red | |
| Minimum Operating Temperature | -40°C | |
| Maximum Operating Temperature | 105°C | |
| Select all | ||
|---|---|---|
Brand Samtec | ||
Cable Type Flat IDC Wire | ||
Product Type Ribbon Cable | ||
Pitch 1.27mm | ||
American Wire Gauge 30AWG | ||
Number of Conductors 14 | ||
Series FFSD | ||
Jacket Material Polybutylene Terephthalate | ||
Cable Length 254mm | ||
Standards/Approvals RoHS | ||
Jacket Colour Red | ||
Minimum Operating Temperature -40°C | ||
Maximum Operating Temperature 105°C | ||
The Samtec FFSD series tiger eye IDC ribbon cable assembly with double end. It has BeCu as contact material and PBT as insulator material.
Current rating 2.3A per pin
Operating Temperature Range -40°C to +105°C
RoHS compliant
Lead free solderable
