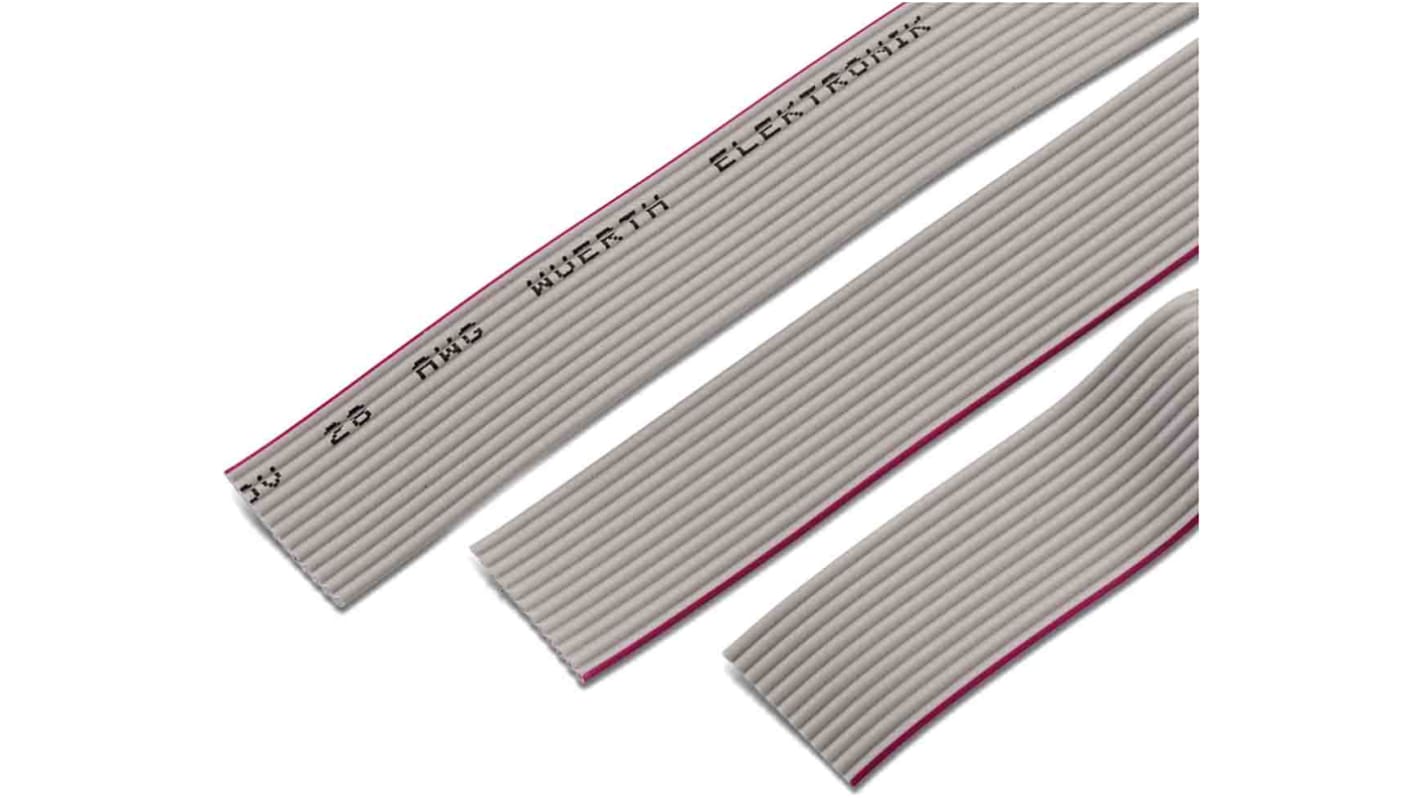

Wurth Elektronik WR-CAB Series Ribbon Cable, Flat Ribbon, 1.27 mm Pitch, 16, 1 m Length
- RS Stock No.:
- 197-3381
- Distrelec Article No.:
- 301-21-701
- Mfr. Part No.:
- 63911615521CAB
- Brand:
- Wurth Elektronik
Subtotal (1 unit)*
£3.78
(exc. VAT)
£4.54
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- Plus 24 unit(s) shipping from 07 September 2026
- Plus 22 unit(s) shipping from 07 September 2026
- Plus 3 unit(s) shipping from 14 September 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £3.78 |
*price indicative
- RS Stock No.:
- 197-3381
- Distrelec Article No.:
- 301-21-701
- Mfr. Part No.:
- 63911615521CAB
- Brand:
- Wurth Elektronik
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Wurth Elektronik | |
| Product Type | Ribbon Cable | |
| Cable Type | Flat Ribbon | |
| Pitch | 1.27mm | |
| Voltage | 300V | |
| Screened/Unscreened | Unscreened | |
| Number of Conductors | 16 | |
| American Wire Gauge | 28AWG | |
| Conductor Type | Stranded | |
| Series | WR-CAB | |
| Jacket Material | Polyvinyl Chloride | |
| Cable Length | 1m | |
| Standards/Approvals | UL, IEC, RoHS | |
| Jacket Colour | Grey | |
| Conductor Material | Copper | |
| Minimum Operating Temperature | -25°C | |
| Fire Behaviour | IEC 1-332 VW-1 | |
| Maximum Operating Temperature | 105°C | |
| Select all | ||
|---|---|---|
Brand Wurth Elektronik | ||
Product Type Ribbon Cable | ||
Cable Type Flat Ribbon | ||
Pitch 1.27mm | ||
Voltage 300V | ||
Screened/Unscreened Unscreened | ||
Number of Conductors 16 | ||
American Wire Gauge 28AWG | ||
Conductor Type Stranded | ||
Series WR-CAB | ||
Jacket Material Polyvinyl Chloride | ||
Cable Length 1m | ||
Standards/Approvals UL, IEC, RoHS | ||
Jacket Colour Grey | ||
Conductor Material Copper | ||
Minimum Operating Temperature -25°C | ||
Fire Behaviour IEC 1-332 VW-1 | ||
Maximum Operating Temperature 105°C | ||
This Wurth Elektronik WR-CAB series 16 wire 1m ribbon flat cable is designed and developed with the intention for use in general electronics equipment. The rated current of the cable is 1A and rated voltage is 300V.
Operating temperature range is from -25°C to +105°C
Stranded wire section 28(AWG)
PVC insulator material
Conductor material is made of copper
Tin conductor plating
