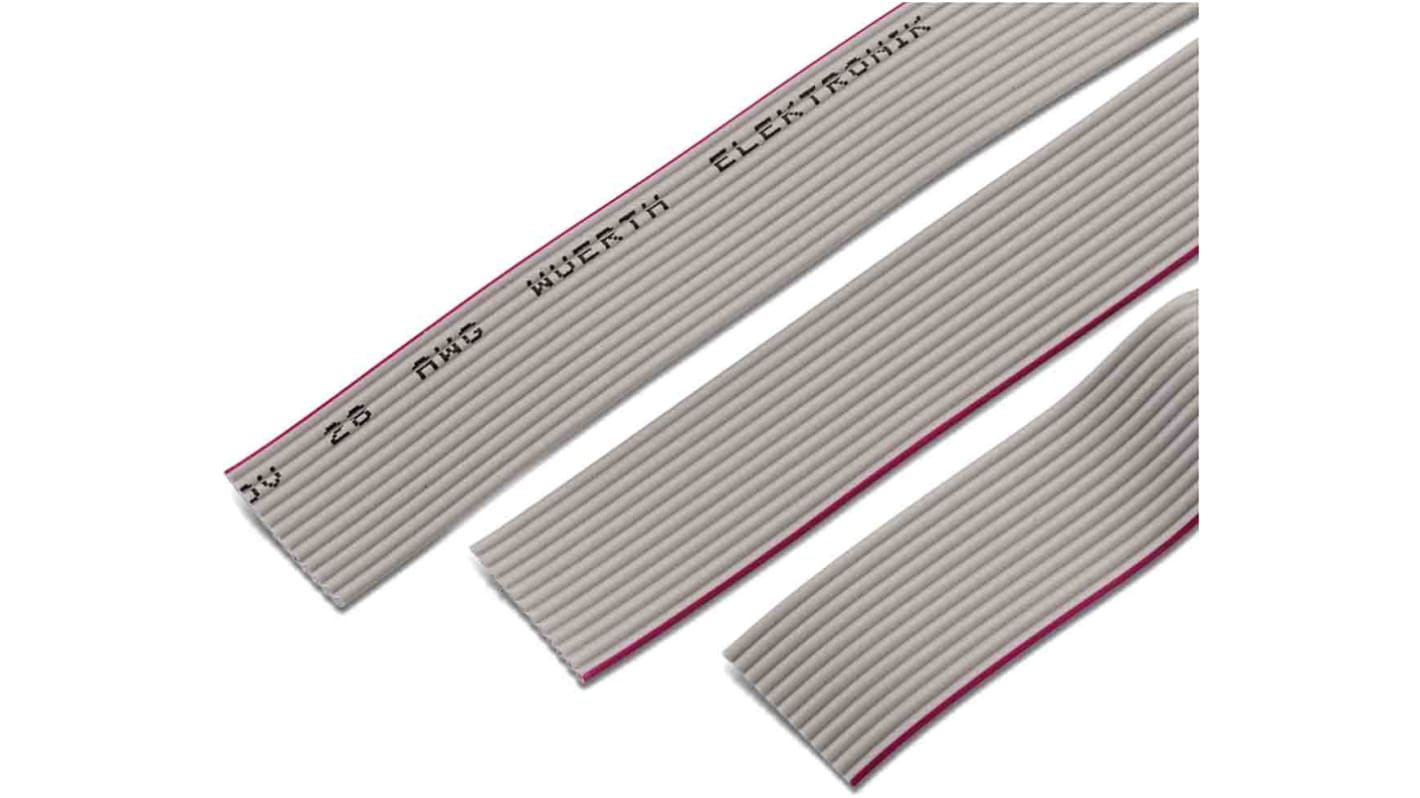

Wurth Elektronik WR-CAB Series Ribbon Cable, Flat Ribbon, 1.27 mm Pitch, 10, 1 m Length
- RS Stock No.:
- 197-3375
- Distrelec Article No.:
- 301-21-698
- Mfr. Part No.:
- 63911015521CAB
- Brand:
- Wurth Elektronik
Subtotal (1 unit)*
£2.10
(exc. VAT)
£2.52
(inc. VAT)
Stock information currently inaccessible - Please check back later
Units | Per unit |
|---|---|
| 1 + | £2.10 |
*price indicative
- RS Stock No.:
- 197-3375
- Distrelec Article No.:
- 301-21-698
- Mfr. Part No.:
- 63911015521CAB
- Brand:
- Wurth Elektronik
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Wurth Elektronik | |
| Cable Type | Flat Ribbon | |
| Product Type | Ribbon Cable | |
| Pitch | 1.27mm | |
| Voltage | 300V | |
| Screened/Unscreened | Unscreened | |
| American Wire Gauge | 28AWG | |
| Number of Conductors | 10 | |
| Conductor Type | Stranded | |
| Jacket Material | Polyvinyl Chloride | |
| Series | WR-CAB | |
| Cable Length | 1m | |
| Standards/Approvals | RoHS, UL, IEC | |
| Jacket Colour | Grey | |
| Conductor Material | Copper | |
| Maximum Operating Temperature | 105°C | |
| Fire Behaviour | IEC 1-332 VW-1 | |
| Minimum Operating Temperature | -25°C | |
| Select all | ||
|---|---|---|
Brand Wurth Elektronik | ||
Cable Type Flat Ribbon | ||
Product Type Ribbon Cable | ||
Pitch 1.27mm | ||
Voltage 300V | ||
Screened/Unscreened Unscreened | ||
American Wire Gauge 28AWG | ||
Number of Conductors 10 | ||
Conductor Type Stranded | ||
Jacket Material Polyvinyl Chloride | ||
Series WR-CAB | ||
Cable Length 1m | ||
Standards/Approvals RoHS, UL, IEC | ||
Jacket Colour Grey | ||
Conductor Material Copper | ||
Maximum Operating Temperature 105°C | ||
Fire Behaviour IEC 1-332 VW-1 | ||
Minimum Operating Temperature -25°C | ||
- COO (Country of Origin):
- TW
This Wurth Elektronik WR-CAB series 10 wire 1m ribbon flat cable is designed and developed with the intention for use in general electronics equipment. The rated current of the cable is 1A and rated voltage is 300V.
Operating temperature range is from -25°C to +105°C
Stranded wire section 28(AWG)
PVC insulator material
Conductor material is made of copper
Tin conductor plating
