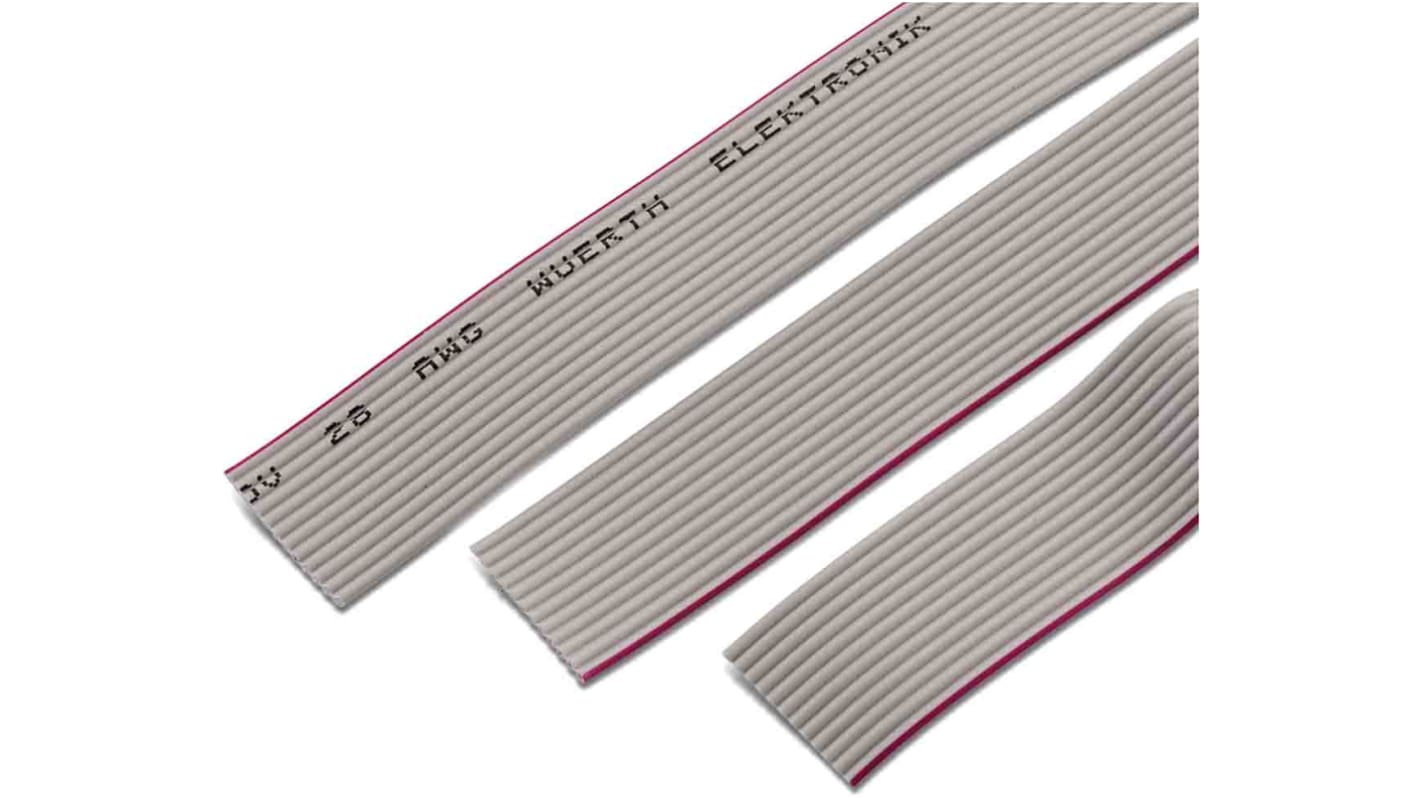

Wurth Elektronik WR-CAB Series Ribbon Cable, Flat Ribbon, 1.27 mm Pitch, 20, 1 m Length
- RS Stock No.:
- 197-3384
- Distrelec Article No.:
- 301-21-703
- Mfr. Part No.:
- 63912015521CAB
- Brand:
- Wurth Elektronik
Subtotal (1 unit)*
£4.19
(exc. VAT)
£5.03
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- Plus 24 unit(s) shipping from 18 May 2026
- Plus 20 unit(s) shipping from 18 May 2026
- Plus 11 unit(s) shipping from 25 May 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £4.19 |
*price indicative
- RS Stock No.:
- 197-3384
- Distrelec Article No.:
- 301-21-703
- Mfr. Part No.:
- 63912015521CAB
- Brand:
- Wurth Elektronik
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Wurth Elektronik | |
| Cable Type | Flat Ribbon | |
| Product Type | Ribbon Cable | |
| Pitch | 1.27mm | |
| Voltage | 300V | |
| Screened/Unscreened | Unscreened | |
| Number of Conductors | 20 | |
| American Wire Gauge | 28AWG | |
| Series | WR-CAB | |
| Conductor Type | Stranded | |
| Jacket Material | Polyvinyl Chloride | |
| Cable Length | 1m | |
| Standards/Approvals | IEC, UL, RoHS | |
| Jacket Colour | Grey | |
| Conductor Material | Copper | |
| Fire Behaviour | IEC 1-332 VW-1 | |
| Minimum Operating Temperature | -25°C | |
| Maximum Operating Temperature | 105°C | |
| Select all | ||
|---|---|---|
Brand Wurth Elektronik | ||
Cable Type Flat Ribbon | ||
Product Type Ribbon Cable | ||
Pitch 1.27mm | ||
Voltage 300V | ||
Screened/Unscreened Unscreened | ||
Number of Conductors 20 | ||
American Wire Gauge 28AWG | ||
Series WR-CAB | ||
Conductor Type Stranded | ||
Jacket Material Polyvinyl Chloride | ||
Cable Length 1m | ||
Standards/Approvals IEC, UL, RoHS | ||
Jacket Colour Grey | ||
Conductor Material Copper | ||
Fire Behaviour IEC 1-332 VW-1 | ||
Minimum Operating Temperature -25°C | ||
Maximum Operating Temperature 105°C | ||
- COO (Country of Origin):
- TW
This Wurth Elektronik WR-CAB series 20 wire 1m ribbon flat cable is designed and developed with the intention for use in general electronics equipment. The rated current of the cable is 1A and rated voltage is 300V.
Operating temperature range is from -25°C to +105°C
Stranded wire section 28(AWG)
PVC insulator material
Conductor material is made of copper
Tin conductor plating
