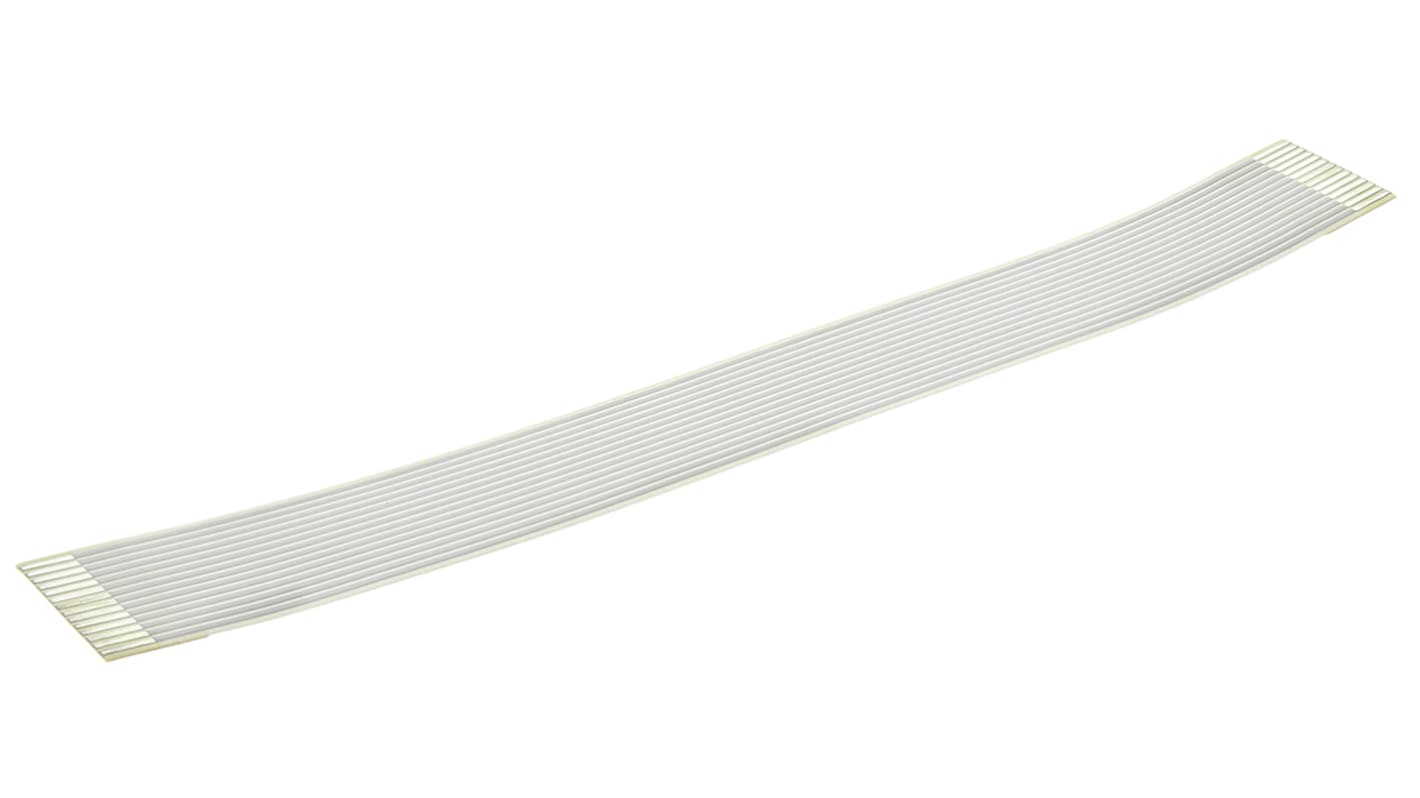

Molex 1.25mm 14 Way FFC Ribbon Cable, 152mm Length
- RS Stock No.:
- 170-7099
- Mfr. Part No.:
- 98268-0199
- Brand:
- Molex
View all Ribbon Cable
Available to back order for despatch 05/09/2023
Price Each (In a Bag of 1000)
£1.387
(exc. VAT)
£1.664
(inc. VAT)
| Units | Per unit | Per Bag* |
| 1000 + | £1.387 | £1,387.00 |
| *price indicative | ||
- RS Stock No.:
- 170-7099
- Mfr. Part No.:
- 98268-0199
- Brand:
- Molex
- COO (Country of Origin):
- DE
Legislation and Compliance
- COO (Country of Origin):
- DE
Product Details
PREMO-FLEX FFC JUMPER FFC Jumper Cable
Molex brings you an additional product to its already wide range of FFC cable jumpers. The PREMO-FLEX FFC JUMPER FFC Jumper Cable is an excellent FFC (flat flex cable) at 152mm length.
This jumper cable has a multitude of markets and applications such as;
- Automotive – this can cover Radio, CD, DVD, GPS device, LCDs, Keyboard and Moveable units
- Consumer - this can cover Set-top box’s, Camcorders and Plasma displays
- Computer – this can cover Notebooks, Printers, Scanners, Keyboards, and LCD flat panels
- Industrial
- Medical Equipment
- Military
- Home Appliance- Control Panels
Features
- Type A jumpers, contacts on same side
- Rated 30V/1.2A
- Temp Rating: -40 to +80°C
- Use with any 1.25 mm pitch FFC connectors
Benefits
- Simple assembly process
- Meets Registration Evaluation, Authorization, and Restriction of Chemicals (REACH) requirements
- Meets industry-standard ZIF connector requirements
- Ease-of-assembly in hard-to-reach applications
- Ideal for electrical connections between PCBs, display boards, etc.
1.25mm FFC
Specifications
| Attribute | Value |
| Ribbon Cable Type | FFC |
| Pitch | 1.25mm |
| Terminated/Unterminated | Unterminated |
| Number of Ways | 14 |
| Series | Premo-Flex |
| Length | 152mm |
| Voltage Rating | 60 V ac |
| Current Rating | 1.4 A |
| Operating Temperature Range | -40 → +105 °C |
| Standards Met | RoHS Compliant |
