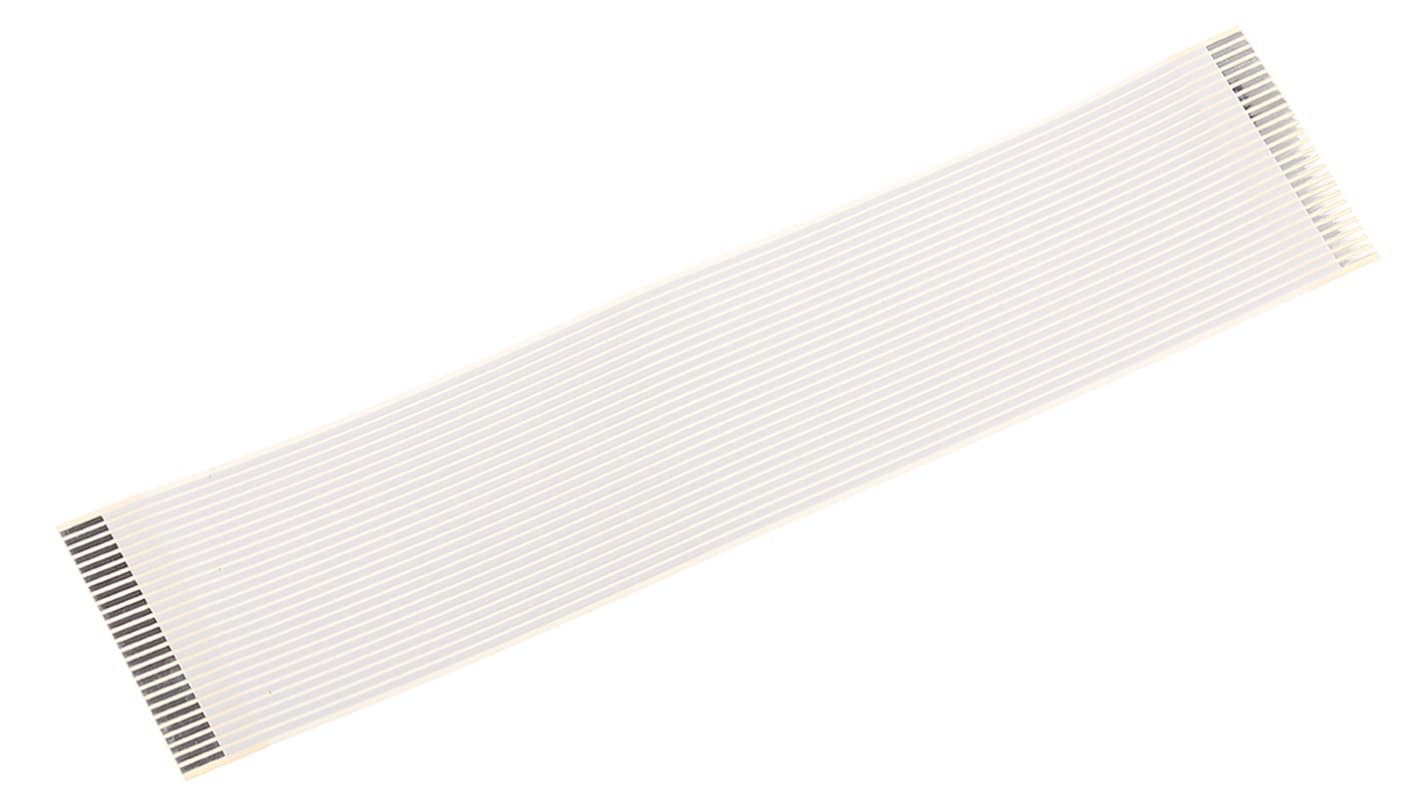

Molex Premo-Flex Series FFC Ribbon Cable, 26-Way, 1.25mm Pitch, 152mm Length
- RS Stock No.:
- 170-7101
- Mfr. Part No.:
- 98268-0331
- Brand:
- Molex
Subtotal (1 bag of 1000 units)*
£2,346.00
(exc. VAT)
£2,815.00
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 02 January 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Bag* |
---|---|---|
1000 + | £2.346 | £2,346.00 |
*price indicative
- RS Stock No.:
- 170-7101
- Mfr. Part No.:
- 98268-0331
- Brand:
- Molex
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Molex | |
Ribbon Cable Type | FFC | |
Pitch | 1.25mm | |
Terminated/Unterminated | Unterminated | |
Number of Ways | 26 | |
Series | Premo-Flex | |
Length | 152mm | |
Voltage Rating | 60 V ac | |
Operating Temperature Range | -40 → +105 °C | |
Current Rating | 1.4 A | |
Standards Met | RoHS Compliant | |
Select all | ||
---|---|---|
Brand Molex | ||
Ribbon Cable Type FFC | ||
Pitch 1.25mm | ||
Terminated/Unterminated Unterminated | ||
Number of Ways 26 | ||
Series Premo-Flex | ||
Length 152mm | ||
Voltage Rating 60 V ac | ||
Operating Temperature Range -40 → +105 °C | ||
Current Rating 1.4 A | ||
Standards Met RoHS Compliant | ||
- COO (Country of Origin):
- DE
PREMO-FLEX FFC JUMPER FFC Jumper Cable
Molex brings you an additional product to its already wide range of FFC cable jumpers. The PREMO-FLEX FFC JUMPER FFC Jumper Cable is an excellent FFC (flat flex cable) at 152mm length.
This jumper cable has a multitude of markets and applications such as;
- Automotive – this can cover Radio, CD, DVD, GPS device, LCDs, Keyboard and Moveable units
- Consumer - this can cover Set-top boxs, Camcorders and Plasma displays
- Computer – this can cover Notebooks, Printers, Scanners, Keyboards, and LCD flat panels
- Industrial
- Medical Equipment
- Military
- Home Appliance- Control Panels
Features
- Type A jumpers, contacts on same side
- Rated 30V/1.2A
- Temp Rating: -40 to +80°C
- Use with any 1.25 mm pitch FFC connectors
Benefits
- Simple assembly process
- Meets Registration Evaluation, Authorization, and Restriction of Chemicals (REACH) requirements
- Meets industry-standard ZIF connector requirements
- Ease-of-assembly in hard-to-reach applications
- Ideal for electrical connections between PCBs, display boards, etc.
1.25mm FFC
