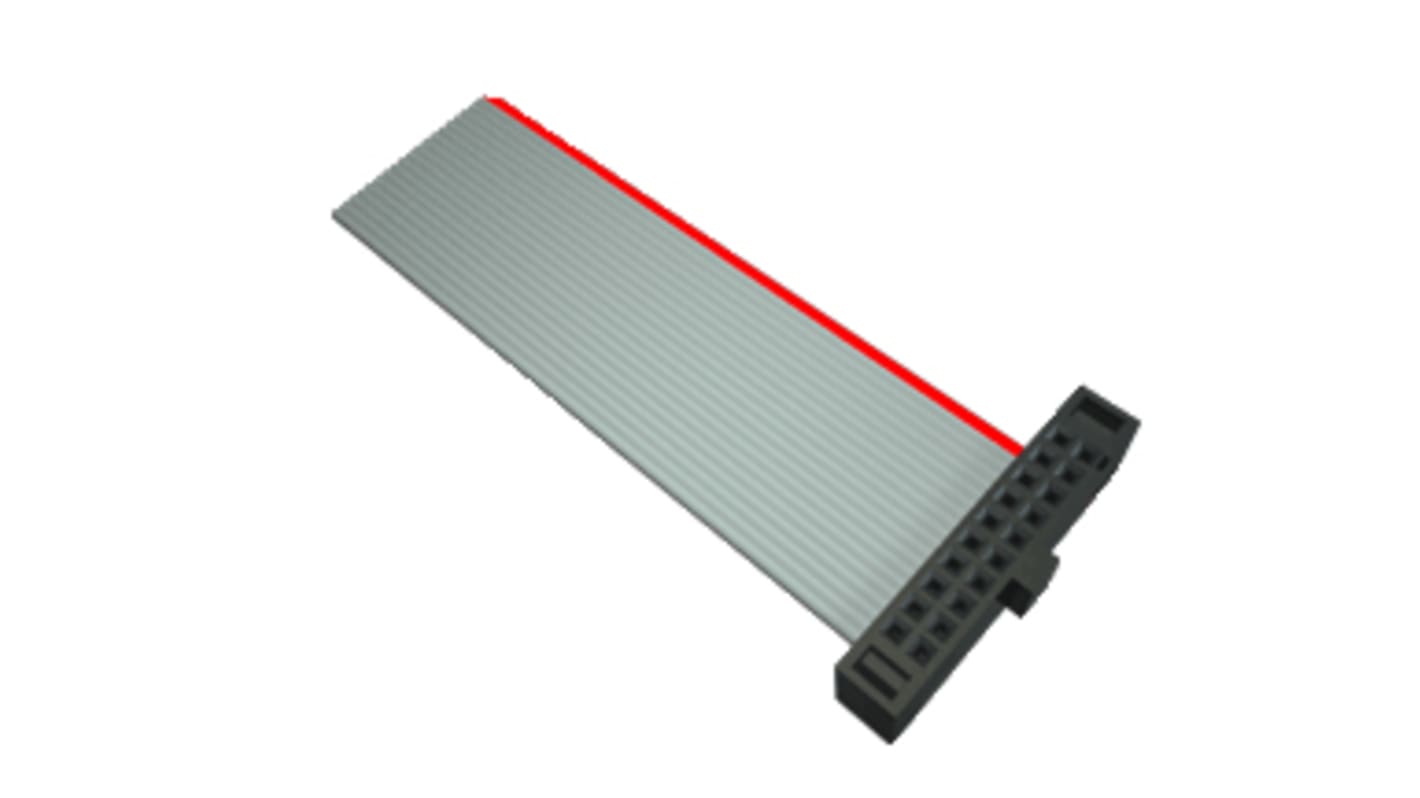

Samtec FFSD Series Flat Ribbon Cable, 26-Way, 1.27mm Pitch, 127mm Length, Tiger Eye IDC to Tiger Eye IDC

View all Ribbon Cable
Discontinued
RS Stock No.:
159-5655
Mfr. Part No.:
FFSD-13-D-05.00-01-N
Brand:
Samtec
Find similar products by selecting one or more attributes.
Select all

Brand

Samtec

Connector 1

Tiger Eye IDC

Ribbon Cable Type

Flat

Connector 2

Tiger Eye IDC

Pitch

1.27mm

Terminated/Unterminated

Terminated

Connector 1 Gender

Female

Connector 2 Gender

Female

Number of Ways

26

Screened/Unscreened

Unscreened

American Wire Gauge

30 AWG

Series

FFSD

Length

127mm

Sheath Colour

Grey

Conductor Strand Type

Stranded

Operating Temperature Range

-40 → +105 °C

Current Rating

2.3 A

This flat Tiger Eye™ IDC socket cable system features an exceptionally low profile design with a multi-finger, BeCu contact system for high reliability and high cycle applications. Optional rugged strain relief is available for a more robust connection in harsh environments, as well as a variety of ejector and shrouded headers for mating.

.050" (1.27 mm) pitch
All common pin counts from 3 to 25
High-reliability Tiger Eye™ contacts
Mating shrouded terminal strips and ejector headers
Optional strain relief
Polarization key
Wide variety of wiring options including reverses, daisy chains, etc.
