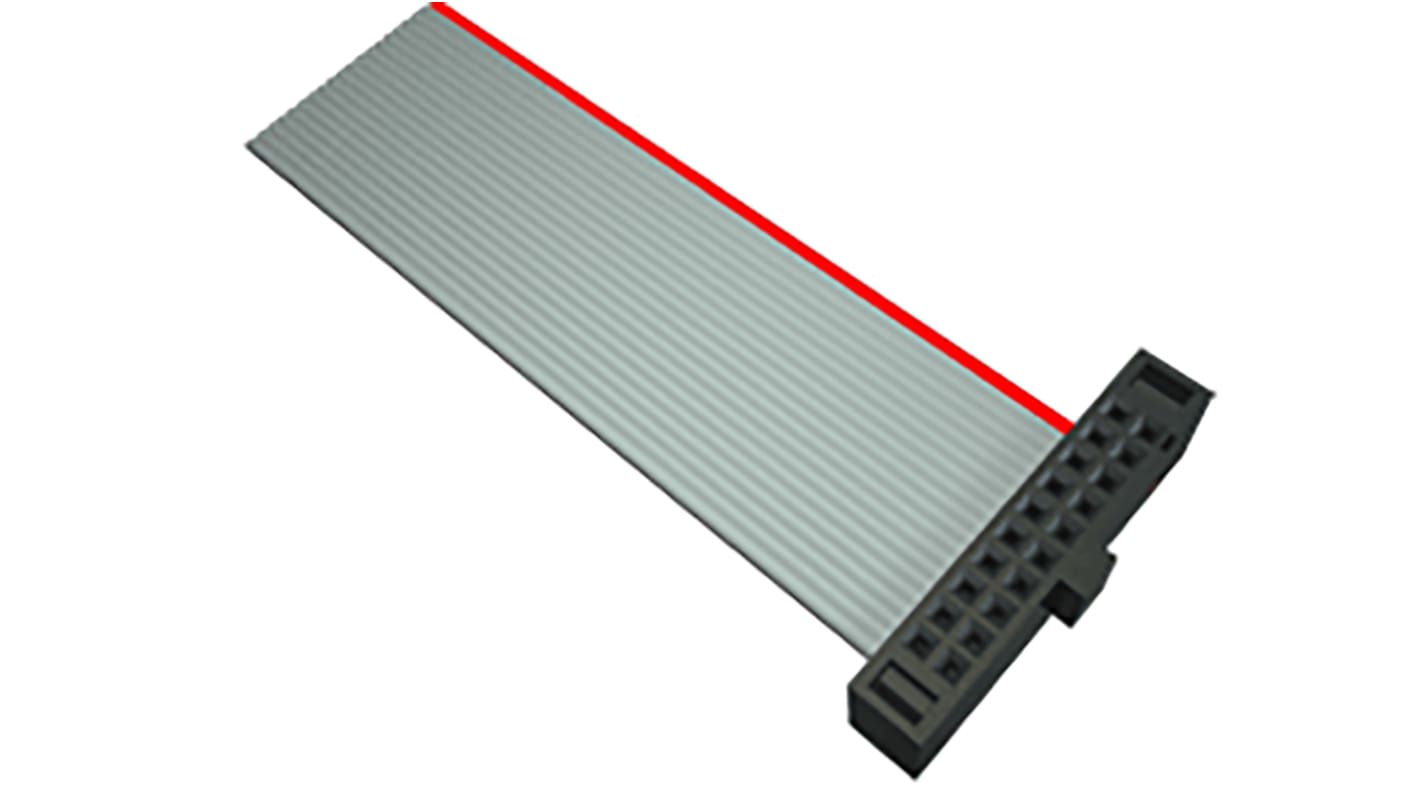

Samtec FFSD Series Flat Ribbon Cable, 16-Way, 1.27mm Pitch, 127mm Length, Tiger Eye IDC to Tiger Eye IDC
- RS Stock No.:
- 180-0057
- Mfr. Part No.:
- FFSD-08-D-05.00-01-N
- Brand:
- Samtec
81 In stock - FREE next working day delivery available
Added
Price Each
£9.55
(exc. VAT)
£11.46
(inc. VAT)
Units | Per unit |
1 - 24 | £9.55 |
25 - 99 | £9.09 |
100 - 249 | £8.64 |
250 - 499 | £8.21 |
500 + | £7.83 |
- RS Stock No.:
- 180-0057
- Mfr. Part No.:
- FFSD-08-D-05.00-01-N
- Brand:
- Samtec
Technical Reference
Legislation and Compliance
Product Details
This flat Tiger Eye™ IDC socket cable system features an exceptionally low profile design with a multi-finger, BeCu contact system for high reliability and high cycle applications. Optional rugged strain relief is available for a more robust connection in harsh environments, as well as a variety of ejector and shrouded headers for mating.
.050" (1.27 mm) pitch
All common pin counts from 3 to 25
High-reliability Tiger Eye™ contacts
Mating shrouded terminal strips and ejector headers
Optional strain relief
Polarization key
Wide variety of wiring options including reverses, daisy chains, etc.
All common pin counts from 3 to 25
High-reliability Tiger Eye™ contacts
Mating shrouded terminal strips and ejector headers
Optional strain relief
Polarization key
Wide variety of wiring options including reverses, daisy chains, etc.
Specifications
Attribute | Value |
---|---|
Connector 1 | Tiger Eye IDC |
Ribbon Cable Type | Flat |
Connector 2 | Tiger Eye IDC |
Pitch | 1.27mm |
Terminated/Unterminated | Terminated |
Connector 1 Gender | Female |
Connector 2 Gender | Female |
Number of Ways | 16 |
American Wire Gauge | 30 AWG |
Series | FFSD |
Length | 127mm |
Standards Met | RoHS Compliant |
Operating Temperature Range | -40 → +105 °C |
Current Rating | 2.3 A |
