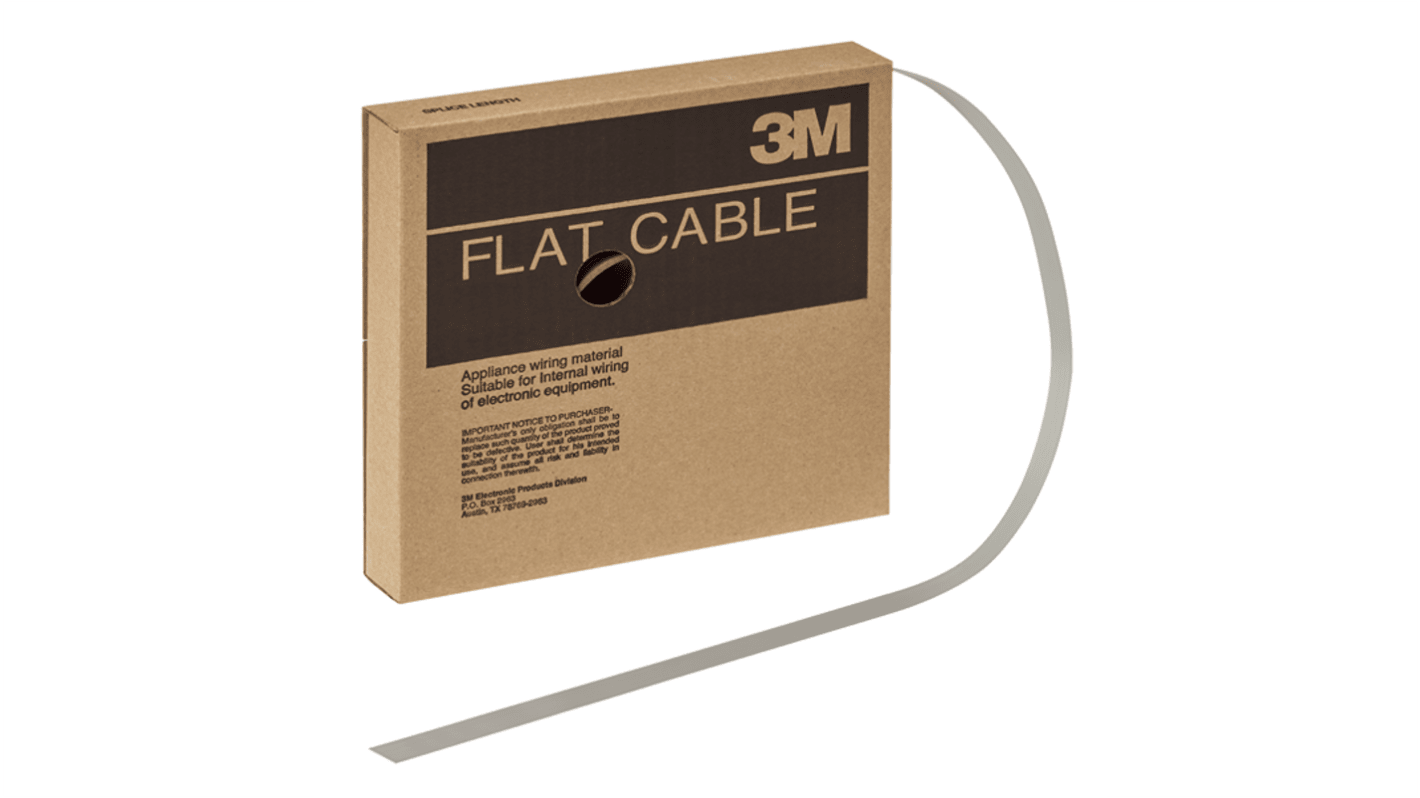

3M 3749 Series Ribbon Cable, Round Conductor Flat, 0.64 mm Pitch, 26
- RS Stock No.:
- 624-523
- Mfr. Part No.:
- 3749/26
- Brand:
- 3M
Subtotal (1 pack of 10 units)*
£739.86
(exc. VAT)
£887.83
(inc. VAT)
Stock information currently inaccessible - Please check back later
Pack(s) | Per Pack | Per unit* |
|---|---|---|
| 1 + | £739.86 | £73.986 |
*price indicative
- RS Stock No.:
- 624-523
- Mfr. Part No.:
- 3749/26
- Brand:
- 3M
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | 3M | |
| Product Type | Ribbon Cable | |
| Cable Type | Round Conductor Flat | |
| Pitch | 0.64mm | |
| Voltage | 150 V | |
| American Wire Gauge | 30AWG | |
| Series | 3749 | |
| Jacket Material | Thermoplastic Elastomer (Thermoplastic Polyolefin) | |
| Conductor Type | Solid | |
| Standards/Approvals | FT2, UL 20297 | |
| Jacket Colour | Grey | |
| Number of Conductors | 26 | |
| Maximum Operating Temperature | 105°C | |
| Fire Behaviour | USA: UL Horizontal, Canada: FT2 | |
| Minimum Operating Temperature | -40°C | |
| Conductor Material | Tin Copper Wire | |
| Select all | ||
|---|---|---|
Brand 3M | ||
Product Type Ribbon Cable | ||
Cable Type Round Conductor Flat | ||
Pitch 0.64mm | ||
Voltage 150 V | ||
American Wire Gauge 30AWG | ||
Series 3749 | ||
Jacket Material Thermoplastic Elastomer (Thermoplastic Polyolefin) | ||
Conductor Type Solid | ||
Standards/Approvals FT2, UL 20297 | ||
Jacket Colour Grey | ||
Number of Conductors 26 | ||
Maximum Operating Temperature 105°C | ||
Fire Behaviour USA: UL Horizontal, Canada: FT2 | ||
Minimum Operating Temperature -40°C | ||
Conductor Material Tin Copper Wire | ||
RoHS Status: Exempt
- COO (Country of Origin):
- US
The 3M Round Conductor Flat Cable is a flat cable conductor that offers exceptional performance and design flexibility for various applications. It delivers high signal density with its close spacing and excellent transmission properties due to its TPE insulation. With size 30 AWG solid conductors on .025 inch spacing. It allows for mass termination and can be zipped for branching or discrete termination. This cable is made with non-pertinent jacket material.
Easy to install and handle with its flat design
Helps ensure smooth and efficient data transfer
RoHS compliant
