Keysight Technologies RF Switch, SMA Female Connector SPDT, 18 GHz Max, 80 dB Isolation, 200 ns, 50Ω Output
- RS Stock No.:
- 224-0549
- Mfr. Part No.:
- P9400C
- Brand:
- Keysight Technologies
Subtotal (1 unit)*
£3,179.00
(exc. VAT)
£3,814.80
(inc. VAT)
FREE delivery for orders over £60.00
Stocked by manufacturer
- Ready to ship from 11 June 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £3,179.00 |
*price indicative
- RS Stock No.:
- 224-0549
- Mfr. Part No.:
- P9400C
- Brand:
- Keysight Technologies
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Keysight Technologies | |
| Product Type | RF Switch | |
| Switching Speed | 200ns | |
| Port to Port Isolation | 80dB | |
| Maximum Insertion Loss | 4.2dB | |
| Contact Configuration | SPDT | |
| Connector Type | SMA Female | |
| Output Impedance | 50Ω | |
| Minimum Operating Temperature | -40°C | |
| Contact DC Voltage | 5V dc | |
| Height | 24.3mm | |
| Maximum Operating Temperature | 85°C | |
| Length | 37.4mm | |
| Standards/Approvals | DEKRA Approval | |
| Series | P940x | |
| Maximum Frequency | 18GHz | |
| Width | 32.1 mm | |
| Minimum Frequency | 100MHz | |
| Select all | ||
|---|---|---|
Brand Keysight Technologies | ||
Product Type RF Switch | ||
Switching Speed 200ns | ||
Port to Port Isolation 80dB | ||
Maximum Insertion Loss 4.2dB | ||
Contact Configuration SPDT | ||
Connector Type SMA Female | ||
Output Impedance 50Ω | ||
Minimum Operating Temperature -40°C | ||
Contact DC Voltage 5V dc | ||
Height 24.3mm | ||
Maximum Operating Temperature 85°C | ||
Length 37.4mm | ||
Standards/Approvals DEKRA Approval | ||
Series P940x | ||
Maximum Frequency 18GHz | ||
Width 32.1 mm | ||
Minimum Frequency 100MHz | ||
- COO (Country of Origin):
- MY

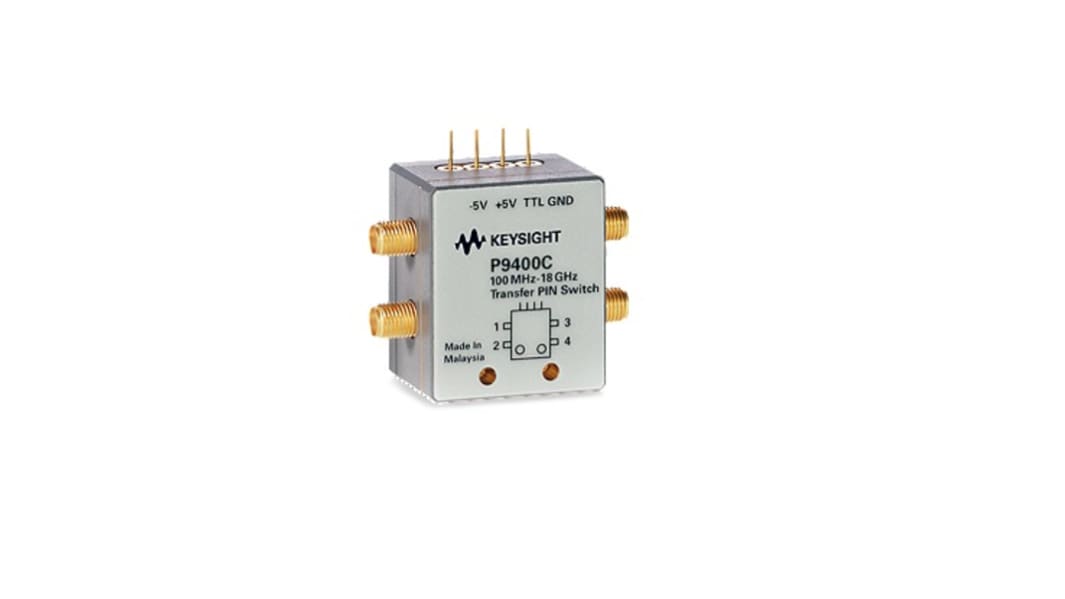

The Keysight Technologies P9400C solid state PIN diode transfer switch offers outstanding performance in terms of port-to-port isolation, switching speed, and low insertion loss over a broad operating frequency range of 100 MHz to 18 GHz
Broad operating frequency range provides flexibility in test setup
Minimizes crosstalk with exceptionally high port-to-port isolation
Optimizes system dynamic range with low insertion loss
Eliminates the need for external drivers with an integrated TTL c
Note
Manufacturer’s Warranty
