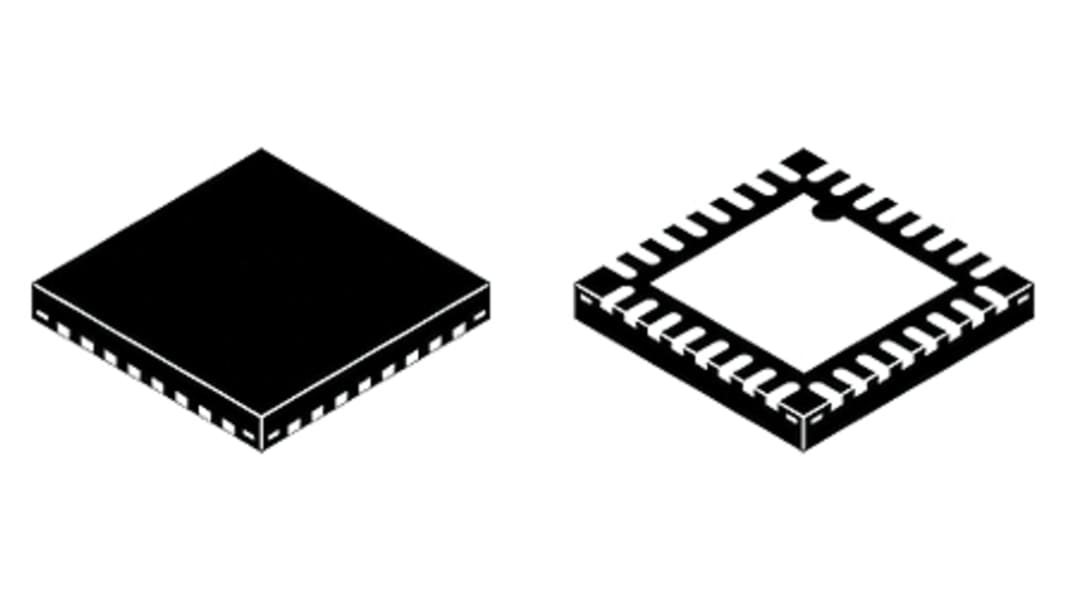

Texas Instruments CC1200RHBT RF Transceiver, 32-Pin VQFN

View all RF ICs
Bulk discount available

Subtotal (1 unit)*

£3.91

(exc. VAT)

£4.69

(inc. VAT)

Add to Basket
Select or type quantity
In Stock
  • 1,408 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
1 - 4£3.91
5 - 9£3.73
10 - 24£3.35
25 - 49£3.01
50 +£2.85

*price indicative

Packaging Options:
RS Stock No.:
827-4631
Mfr. Part No.:
CC1200RHBT
Brand:
Texas Instruments
Find similar products by selecting one or more attributes.
Select all

Brand

Texas Instruments

Technology

Low IF/ISM Transceiver

Modulation Technique

FSK, GFSK, MSK, OOK

Package Type

VQFN

Pin Count

32

Dimensions

5.15 x 5.15 x 0.95mm

Mounting Type

Surface Mount

Length

5.15mm

Width

5.15mm

Height

0.95mm

Maximum Operating Band 1 Frequency

950MHz

Maximum Operating Band 2 Frequency

475MHz

Maximum Operating Band 3 Frequency

190MHz

Maximum Operating Supply Voltage

3.6 V

Maximum Operating Temperature

+85 °C

Minimum Operating Band 1 Frequency

820MHz

Minimum Operating Band 3 Frequency

164MHz

Number of Operating Bands

3

Minimum Operating Temperature

-40 °C

Minimum Operating Band 2 Frequency

410MHz

Minimum Operating Supply Voltage

2 V

CC1200 series Sub-1GHz 802.15.4g RF Transceiver


The Texas Instruments CC1200 device is a Sub-1GHz radio transceiver designed for high performance with low power consumption. The CC1200 is optimized for IEEE 802.15.4g protocol Smart Grid/Meter applications.

RF Frequency bands: 169, 433, 868, 915, 920MHz ISM/SRD bands
RF Output Power: up to +16dBm
Receiver Sensitivity: -123dBm @ 1.2kbps, -109dBm @ 50kbps
Modulation: FSK, GFSK, QFSK, GQFSK, MSK, OOK
Digital channel filter bandwidth: 9.5kHz to 1600kHz
OTA Data Rate: 1.2kbps to 1250kbps
Dedicated features for 802.15.4g: CRC 16/32, FEC, Dual Sync Detection (FEC & non-FEC packets), Whitening
Separate 128-byte Tx & Rx FIFOs
Coding Gain support for increased range and robustness
Enhanced Wake-On-Radio (eWOR) function
Digital RSSI measurement
Automatic Clear Channel Assessment (CCA) for Listen-Before-Talk (LBT) systems
Support for Antenna Diversity
Host communication: serial SPI
Power supply: +2.0V to +3.6Vdc
Operating temperature range: -40 to +85°C
Applications: Wireless Metering & Wireless Smart Grid (AMR & AMI) , IEEE 802.15.4g Systems, Home & Building Automation , Wireless Alarm & Security Systems, Industrial Monitoring & Control , Wireless Healthcare, Wireless Sensor Networks & Active RFID , communication for the Internet of Things (IoT)

RS Product Codes
827-4631 CC1200RHBT

Approvals

ETSI, FCC, ARIB
