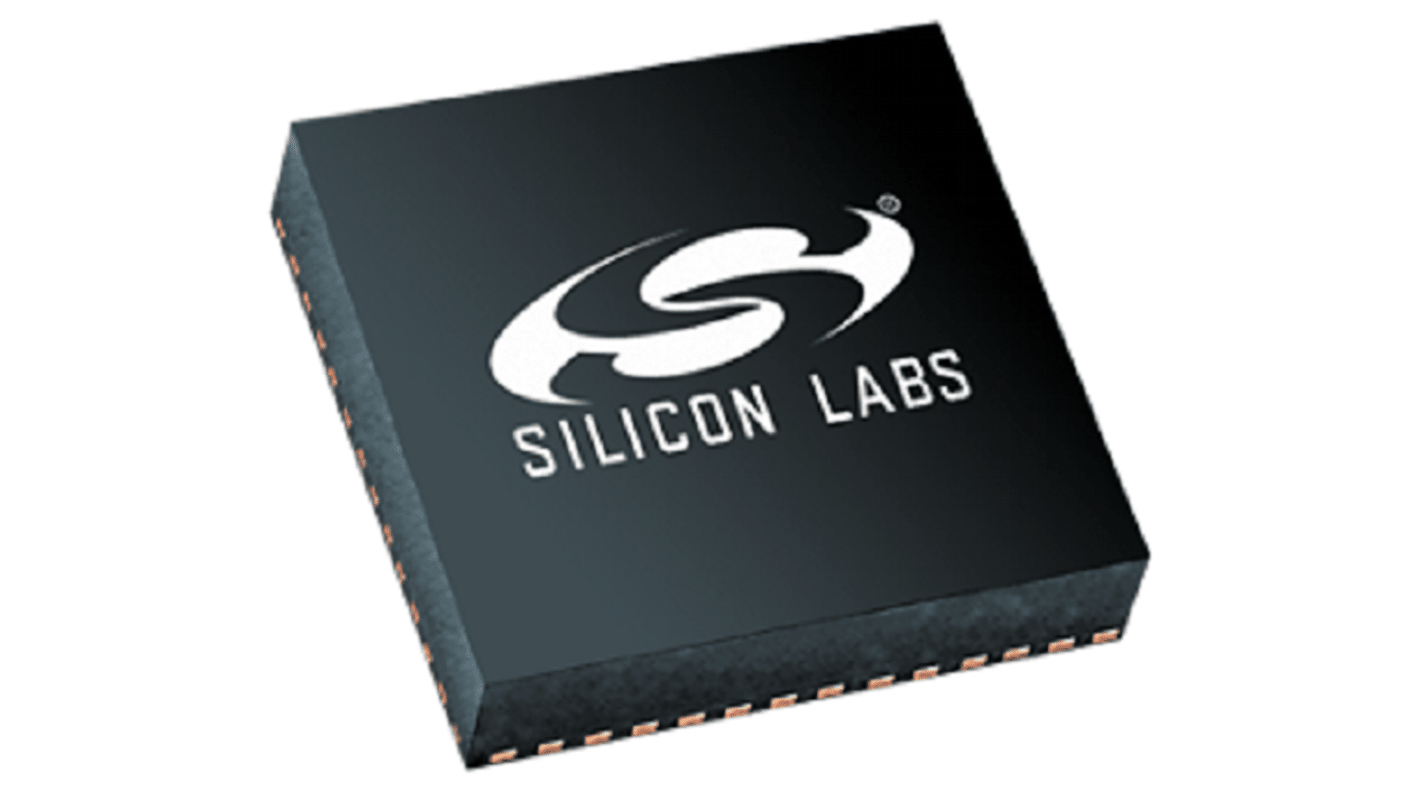

Silicon Labs EFR32FG25B211F1920IM56-B RF Transceiver IC, 56-Pin QFN56
- RS Stock No.:
- 270-0512
- Mfr. Part No.:
- EFR32FG25B211F1920IM56-B
- Brand:
- Silicon Labs
Subtotal (1 tray of 260 units)*
£1,451.84
(exc. VAT)
£1,742.26
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- 260 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Tray* |
---|---|---|
260 + | £5.584 | £1,451.84 |
*price indicative
- RS Stock No.:
- 270-0512
- Mfr. Part No.:
- EFR32FG25B211F1920IM56-B
- Brand:
- Silicon Labs
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Silicon Labs | |
Technology | ARM Cortex | |
Modulation Technique | FSK | |
Package Type | QFN56 | |
Pin Count | 56 | |
Dimensions | 7 x 7 x 0.85mm | |
Mounting Type | Surface Mount | |
Select all | ||
---|---|---|
Brand Silicon Labs | ||
Technology ARM Cortex | ||
Modulation Technique FSK | ||
Package Type QFN56 | ||
Pin Count 56 | ||
Dimensions 7 x 7 x 0.85mm | ||
Mounting Type Surface Mount | ||
- COO (Country of Origin):
- TW
The Silicon Labs EFR32FG25 gecko SoC is an ideal solution for sub-GHz Wi-SUN applications for metering, lighting, and distribution automation. The high-performance sub-GHz radio provides long range and is not susceptible to 2.4 GHz interference from technologies like Wi-Fi. The single die, multi-core solution, provides industry leading security, high throughput, and an integrated power amplifier to enable the next level of secure connectivity for IoT devices.
Integrated PA with up to 16 dBm (SubGHz) TX power
Robust peripheral set and up to 37 GPIO
Operation up to 125 °C
Robust peripheral set and up to 37 GPIO
Operation up to 125 °C
