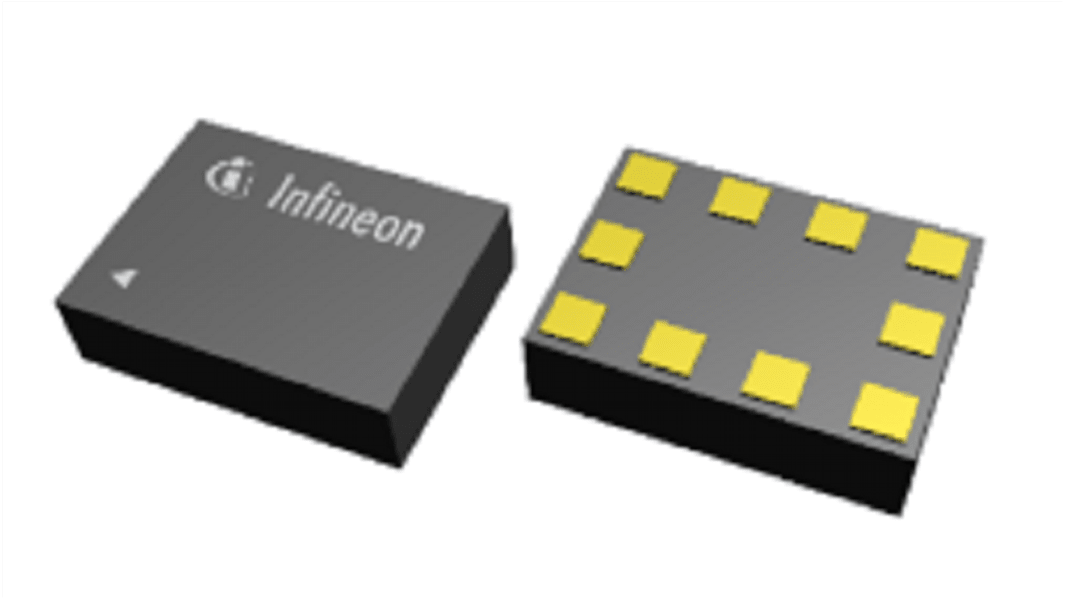

Infineon RF Switch, 10-Pin TSLP-10
- RS Stock No.:
- 249-8626
- Mfr. Part No.:
- BGSA403ML10E6327XTSA1
- Brand:
- Infineon
Bulk discount available
Subtotal (1 reel of 7500 units)*
£1,522.50
(exc. VAT)
£1,830.00
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 20 April 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Reel* |
|---|---|---|
| 7500 - 7500 | £0.203 | £1,522.50 |
| 15000 - 15000 | £0.198 | £1,485.00 |
| 22500 + | £0.193 | £1,447.50 |
*price indicative
- RS Stock No.:
- 249-8626
- Mfr. Part No.:
- BGSA403ML10E6327XTSA1
- Brand:
- Infineon
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Infineon | |
| Technology | RF Switch | |
| Product Type | RF Switch | |
| Package Type | TSLP-10 | |
| Pin Count | 10 | |
| Mount Type | Surface | |
| Interface Type | MIPI, RF | |
| Maximum Operating Temperature | 260°C | |
| Series | BGSA403ML10 | |
| Standards/Approvals | JEDEC J-STD-020 | |
| Automotive Standard | No | |
| Select all | ||
|---|---|---|
Brand Infineon | ||
Technology RF Switch | ||
Product Type RF Switch | ||
Package Type TSLP-10 | ||
Pin Count 10 | ||
Mount Type Surface | ||
Interface Type MIPI, RF | ||
Maximum Operating Temperature 260°C | ||
Series BGSA403ML10 | ||
Standards/Approvals JEDEC J-STD-020 | ||
Automotive Standard No | ||
The Infineon Low resistance antenna is a versatile shunt to ground 4 x single-pole single-throw (4xSPST) RF antenna tuning switch, it is optimized for low Coff as well as low Ron enabling applications up to 7.125 GHz and is ideal for antenna tuning application also this chip integrates on-chip CMOS logic and power supply regulation., its digital control interface is compliant with MIPI2, RFFE specification and each switch throw can be programmed individually or all together in the same RFFE command frame.
Low Ron resistance of 0.98 ohm in ON state
Low Coff capacitance of 205 fF in OFF state
High RF operating peak voltage handling of 50 V in OFF state
MIPI RFFE 2.1 control interface
Extremely low current consumption of 22 μA
4 USID addresses enabled by external condition at USID_SEL pin
Small form factor 1.1 mm x 1.5 mm
