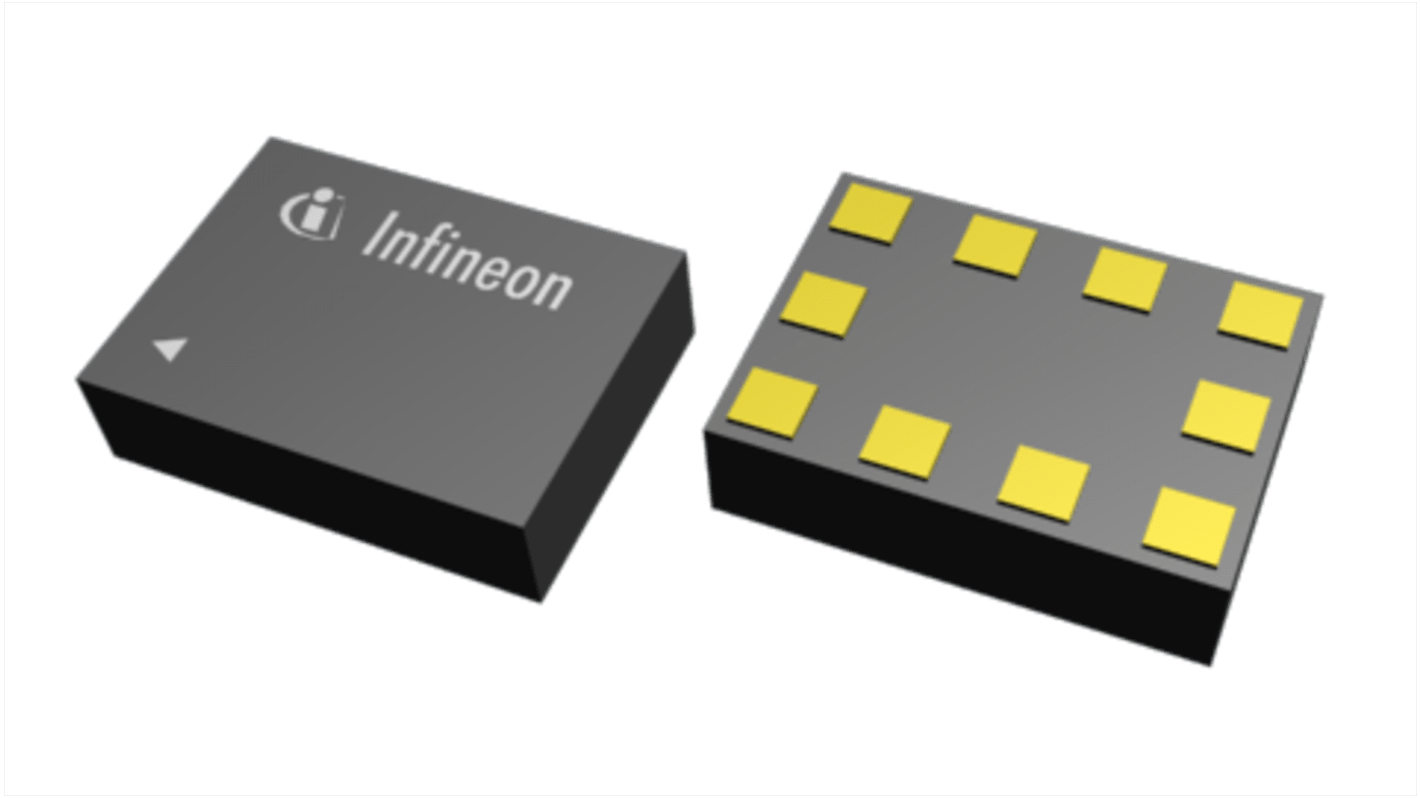

Infineon RF Switch, 10-Pin TSLP-10-2
- RS Stock No.:
- 225-0552
- Mfr. Part No.:
- BGSC2341ML10E6327XTSA1
- Brand:
- Infineon
Subtotal (1 reel of 7500 units)*
£1,837.50
(exc. VAT)
£2,205.00
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 31 March 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Reel* |
|---|---|---|
| 7500 + | £0.245 | £1,837.50 |
*price indicative
- RS Stock No.:
- 225-0552
- Mfr. Part No.:
- BGSC2341ML10E6327XTSA1
- Brand:
- Infineon
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Infineon | |
| Product Type | RF Switch | |
| Package Type | TSLP-10-2 | |
| Pin Count | 10 | |
| Mount Type | Surface | |
| Operating Band 1 Frequency | 0.4GHz | |
| Minimum Supply Voltage | 1.65V | |
| Operating Band 2 Frequency | 3.8GHz | |
| Maximum Supply Voltage | 1.95V | |
| Maximum Operating Temperature | 125°C | |
| Length | 1.1mm | |
| Height | 0.39mm | |
| Width | 1.5 mm | |
| Standards/Approvals | No | |
| Series | BGSC2341ML10 | |
| Number of Operating Bands | 2 | |
| Automotive Standard | No | |
| Select all | ||
|---|---|---|
Brand Infineon | ||
Product Type RF Switch | ||
Package Type TSLP-10-2 | ||
Pin Count 10 | ||
Mount Type Surface | ||
Operating Band 1 Frequency 0.4GHz | ||
Minimum Supply Voltage 1.65V | ||
Operating Band 2 Frequency 3.8GHz | ||
Maximum Supply Voltage 1.95V | ||
Maximum Operating Temperature 125°C | ||
Length 1.1mm | ||
Height 0.39mm | ||
Width 1.5 mm | ||
Standards/Approvals No | ||
Series BGSC2341ML10 | ||
Number of Operating Bands 2 | ||
Automotive Standard No | ||
The Infineon BGSC2341ML10 is a versatile integrated circuit ideal for RF tuning applications such as tuneable impedance matching, antenna tuning and tuneable filtering. This IC integrates an 8-states tuneable capacitor and an extremely low RON single pole double throw (SPDT) RF switch function, both controlled by on-chip MIPI 2.1 RFFE digital interface.
High operating RF Voltage handling 39 V
0.26-2.00 pF tuning range at 1.8 GHz
Operating frequencies is 0.4 - 3.8 GHz
High ESD robustness
