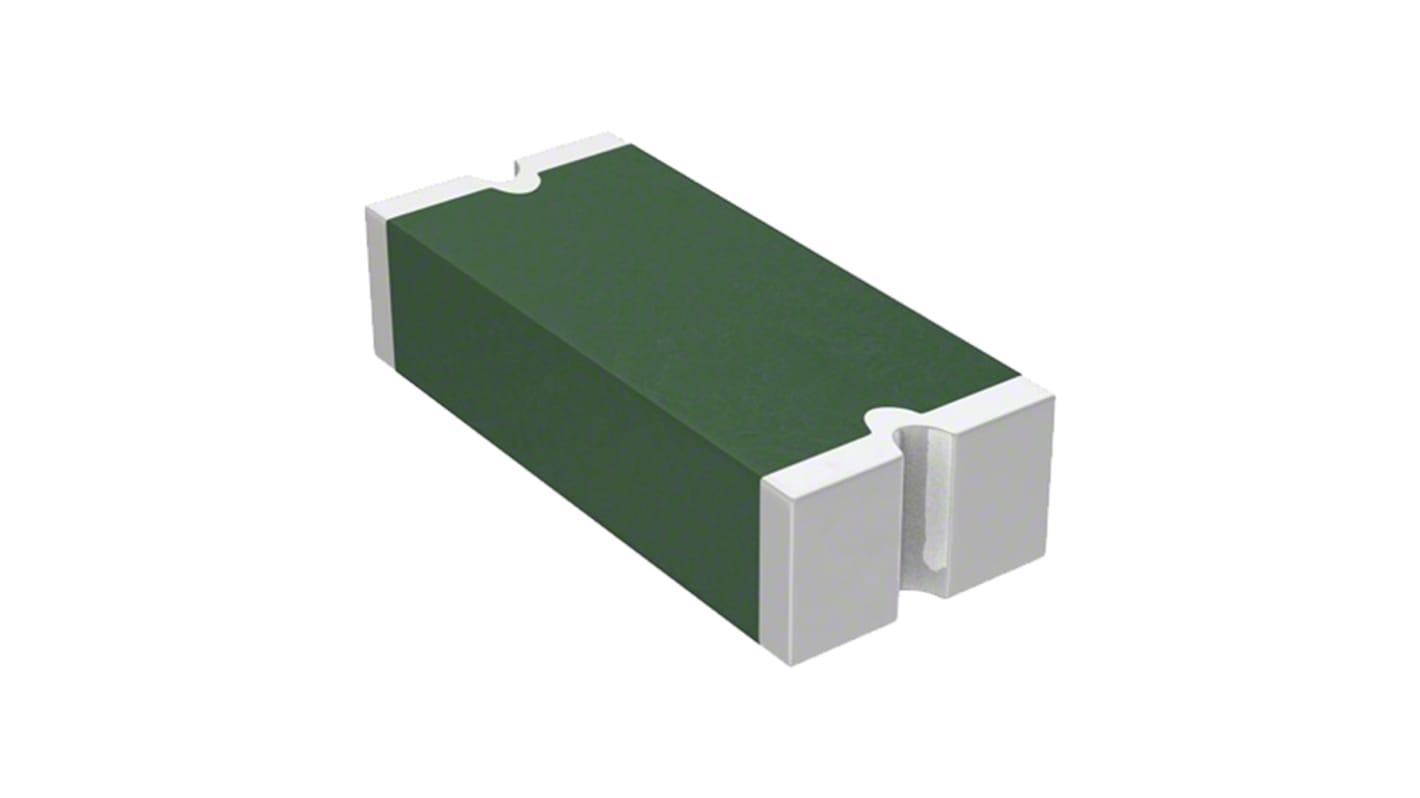

Littelfuse 4 A Resettable Fuse, 6 V dc
- RS Stock No.:
- 867-5315
- Mfr. Part No.:
- NANOSMD350LR-2
- Brand:
- Littelfuse
Bulk discount available
Subtotal (1 bag of 10 units)*
£3.37
(exc. VAT)
£4.04
(inc. VAT)
Stock information currently inaccessible - Please check back later
Units | Per unit | Per Bag* |
|---|---|---|
| 10 - 40 | £0.337 | £3.37 |
| 50 - 90 | £0.32 | £3.20 |
| 100 - 240 | £0.302 | £3.02 |
| 250 - 990 | £0.271 | £2.71 |
| 1000 + | £0.255 | £2.55 |
*price indicative
- RS Stock No.:
- 867-5315
- Mfr. Part No.:
- NANOSMD350LR-2
- Brand:
- Littelfuse
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Littelfuse | |
| Trip Current | 7.5A | |
| Product Type | Resettable Fuse | |
| Voltage | 6 V dc | |
| Current Rating | 100 A | |
| Time to Trip | 5s | |
| Hold Current | 4A | |
| Length | 3.43mm | |
| Height | 1.85mm | |
| Width | 1 mm | |
| Terminal Material | Gold Plated Nickel | |
| Minimum Resistance | 0.004Ω | |
| Minimum Operating Temperature | -40°C | |
| Maximum Resistance | 18mΩ | |
| Maximum Operating Temperature | 85°C | |
| Power Dissipation | 1W | |
| Standards/Approvals | RoHS, CSA, UL, TUV | |
| Package Size | 1206 | |
| Package Type | Reel | |
| Series | Low Rho SMD | |
| Select all | ||
|---|---|---|
Brand Littelfuse | ||
Trip Current 7.5A | ||
Product Type Resettable Fuse | ||
Voltage 6 V dc | ||
Current Rating 100 A | ||
Time to Trip 5s | ||
Hold Current 4A | ||
Length 3.43mm | ||
Height 1.85mm | ||
Width 1 mm | ||
Terminal Material Gold Plated Nickel | ||
Minimum Resistance 0.004Ω | ||
Minimum Operating Temperature -40°C | ||
Maximum Resistance 18mΩ | ||
Maximum Operating Temperature 85°C | ||
Power Dissipation 1W | ||
Standards/Approvals RoHS, CSA, UL, TUV | ||
Package Size 1206 | ||
Package Type Reel | ||
Series Low Rho SMD | ||
PolySwitch™ nanoSMDC series
Surface Mount Technology
Resettable fuses are designed for the protection of electrical and electronic circuits against excessive currents. They switch rapidly from a low resistance to very high resistance state under electrical overload or short circuit conditions, and feature automatic reset and return to low resistance state when fault condition ceases and power is removed.
Maintenance free automatic reset for thousands of cycles
Small size and no fuseholder required
Main applications
Security systems
Power supplies and transformers
Power switching devices
Automotive and medical equipment
Instrumentation and control
Computers and peripherals
Audio visual and telecommunications
